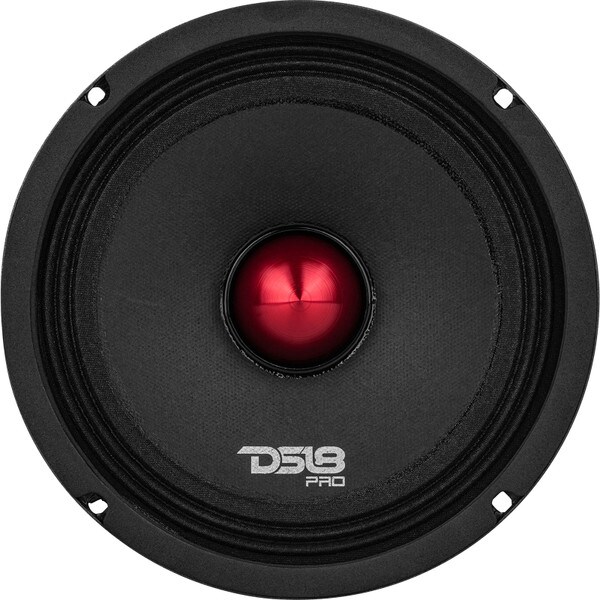

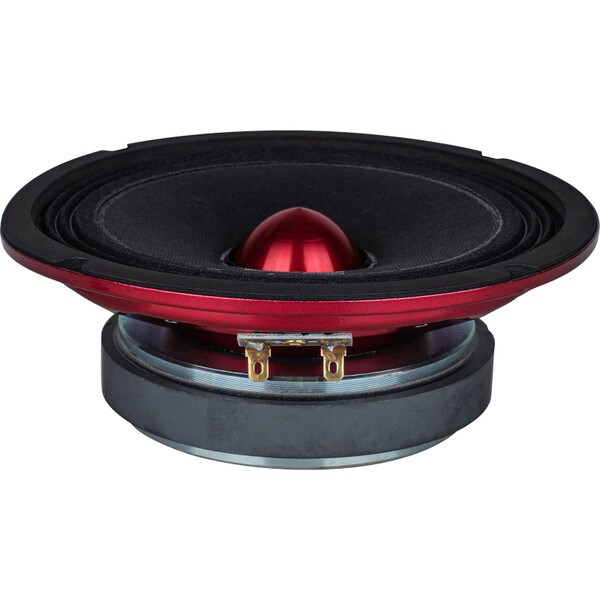

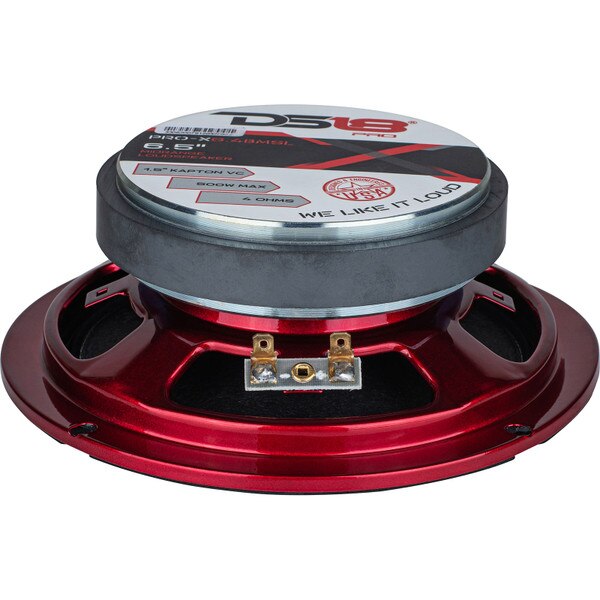

  • DS18 PRO-X6.4BMSL 6-1/2" Professional Low Profile Midrange Speaker 4 Ohm

DS18 PRO-X6.4BMSL 6-1/2" Professional Low Profile Midrange Speaker 4 Ohm

2 Questions, 3 Answers or
DS18
Part #294-8042

DS18 PRO-X6.4BMSL 6-1/2" Professional Low Profile Midrange Speaker 4 Ohm

DS18
Part #294-8042
Model: PRO-X6.4BMSL
2 Questions, 3 Answers or
The PRO-X6.4MBSL 6-1/2" shallow mount pro midrange speaker from DS18 is designed to bring concert level output capabilities to the car audio market. A low mass paper cone and powerful motor gives the PRO-X6.4MBSL great efficiency and the ability to hit extreme sound pressure levels. An anodized red phase plug gives this midrange an aggressive look and extra heat dissipation for improved power handling. This is a great choice for filling in the midbass and midrange frequencies in any high SPL sound systems.
Key Features
  • Paper cone with excellent damping properties produces realistic and detailed midrange response
  • Anodized red phase plug looks great while improving power handling and off-axis response
  • Low mass and powerful motor to deliver high efficiency and dynamic output
  • Huge ferrite magnet ensures low power compression even after long listening sessions
  • 1-1/2" high temperature voice coil handles 250 watts RMS for extreme SPL
  • Just over 2" mounting depth allows installation into the shallowest locations
Your Price: $43.95
Bulk Pricing
Ships next business day. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 PRO-X6.4BMSL 6-1/2" Professional Low Profile Midrange Speaker 4 Ohm

Built for clean and realistic midrange at maximum SPL, DS18's PRO-X6.4MBSL 6-1/2" shallow mount pro midrange driver can deliver concert level output with audiophile quality sound. A large diameter red phase plug not only looks great, but it also offers better off-axis performance, improved cooling, and higher power handling. The lightweight non-pressed paper cone and copper coated aluminum voice coil wire keeps moving mass low for dynamic response. That low mass combined with a powerful motor ensure high efficiency and excellent control. With a massive ferrite magnet and 1.5" high temperature voice coil former, the PRO-X6.4MBSL can take up to 250 watts RMS continuously with minimal power compression (with recommended 180Hz high pass crossover) . With only 2-1/8" mounting depth, this is the perfect driver for use in installations where space is at a premium. This driver will be an excellent addition to high output sound systems built to blow away the competition.

During the focused R&D period of perfecting the PRO-EXL line, DS18 identified the opportunity to spawn off another line since there was a division amongst competition and concert audiophiles. Therefore, DS18 created the PRO audio line, which features a wide variety of midranges that produce concert-like sounds that will knock the wind out of you!

Product Details

BrandDS18
ModelPRO-X6.4BMSL
Part Number294-8042
UPC663593065025
Unit of MeasureEach
Weight3.7

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response125 to 8,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.5"
Magnet Weight21oz.

Thiele-Small Parameters

Resonant Frequency (Fs)159Hz
DC Resistance (Re)3.2Ω
Mechanical Q (Qms)7.33
Electromagnetic Q (Qes)0.82
Total Q (Qts)0.735
Compliance Equivalent Volume (Vas)0.104ft³
Maximum Linear Excursion (Xmax)6.4mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.63"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F3173.1Hz
Vented Volume0.35ft³
Vented F3116.4Hz
