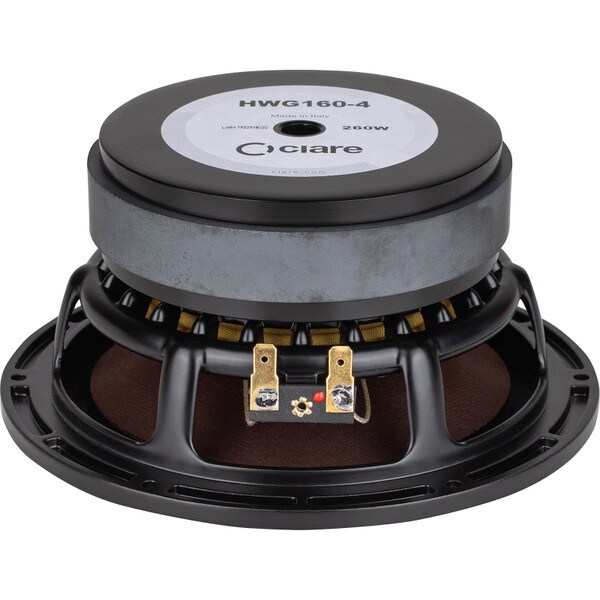

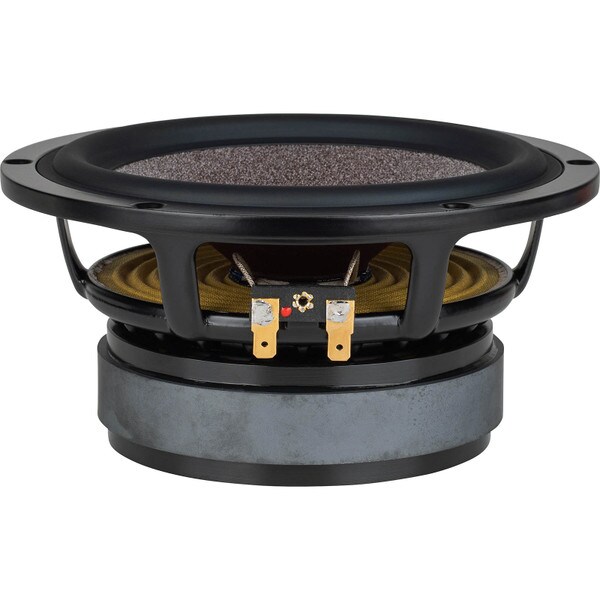

Ciare HWG160-4 6.5" Woofer 4 Ohm

Ciare
Part #293-124

Ciare HWG160-4 6.5" Woofer 4 Ohm

Ciare
Part #293-124
Model: HWG160-4

The Ciare HWG160-4 solid build quality and advanced construction ensure that this woofer can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its compact and efficient design makes it suitable for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Key Features
  • Features an 8" cone constructed from high-strength fiber material, ensuring a flat frequency response and excellent transient response for precise audio reproduction.
  • Equipped with a ferrite magnet, providing a robust magnetic field within a durable and rugged design, enhancing overall performance and reliability.
  • Boasts a sleek and modern design, perfectly complementing both home and professional sound systems.
  • Its lightweight and compact size make installation effortless, allowing for easy incorporation into any audio setup without compromising on performance.
Your Price: $174.91
+ FREE SHIPPING
MSRP: $233.21
Save $58.30 (25%)
Bulk Pricing
Ships next business day. Details

4In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Ciare HWG160-4 6.5" Woofer 4 Ohm

The Ciare HWG160-4 6.5" Woofer is a high-performance speaker driver that delivers exceptional sound quality and power handling capabilities. This woofer features a 6.5" cone made from a high-strength fiber material that provides a flat frequency response and excellent transient response. The driver also features a ferrite magnet, which provides a strong magnetic field in a durable and rugged design.

The HWG160-4's sleek and modern design makes it a perfect complement to any home or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Product Details

BrandCiare
ModelHWG160-4
Part Number293-124
UPC848864073095
Unit of MeasureEach
Weight6.25

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.46
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance
Frequency Response45 to 7,000Hz
Sensitivity92.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)2.7Ω
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)4.9
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.95ft³
BL Product (BL)5.6T·m
Diaphragm Mass Inc. Airload (Mms)16.1g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)141cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.85"
Baffle Cutout Diameter5.75"
Depth3.27"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.18ft³
Sealed F394.5Hz
Vented Volume0.4ft³
Vented F357.2Hz
