BUYOUT CW136B15 5-1/4" Paper Cone Woofer 8 Ohm

Read 2 Reviews or
Factory Buyouts
Part #299-4250

BUYOUT CW136B15 5-1/4" Paper Cone Woofer 8 Ohm

Factory Buyouts
Part #299-4250
Model: CW136B15
Read 2 Reviews or

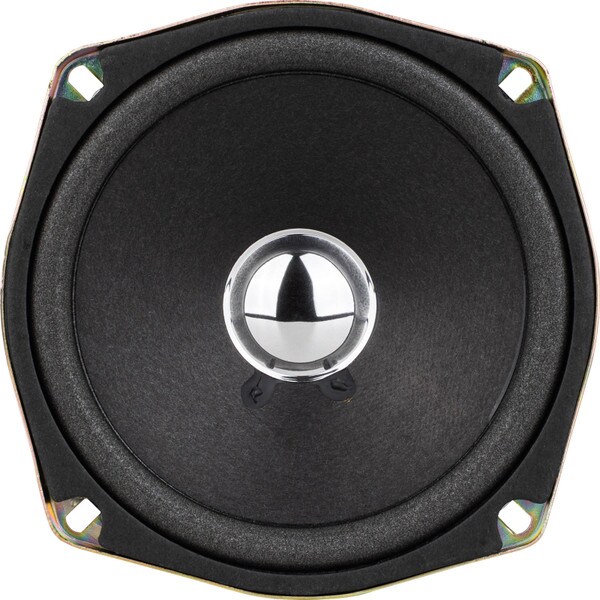

The CW136B15 5-1/4" Paper Cone Woofer utilizes a pressed paper cone, foam surround and throw-back style chrome dust cap.

Key Features
  • SPL of 88.7 means this woofer will get surprisingly loud with little power
  • 2mm Xmax for solid low frequency capabilities
  • Throw-back chrome dust cap for vintage styling
BUYOUT $5.98
MSRP: $12.99
Save $7.01 (54%)
Bulk Pricing
Quantity:Qty: 1-4 $5.98/ea
Quantity:Qty: 5-9 $5.48/ea
Quantity:Qty: 10+$4.98/ea
Ships next business day. Details

154In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

CW136B15 5-1/4" Paper Cone Woofer 8 Ohm

The CW136B15 5-1/4" Paper Cone Woofer utilizes a pressed paper cone, foam surround and throw-back style chrome dust cap.

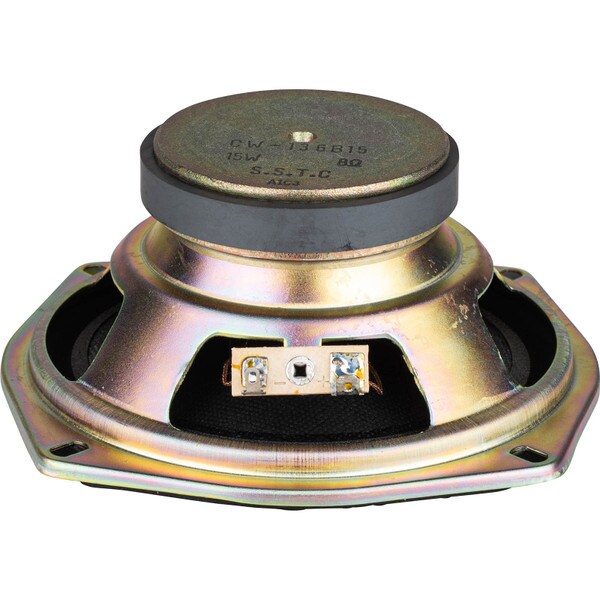

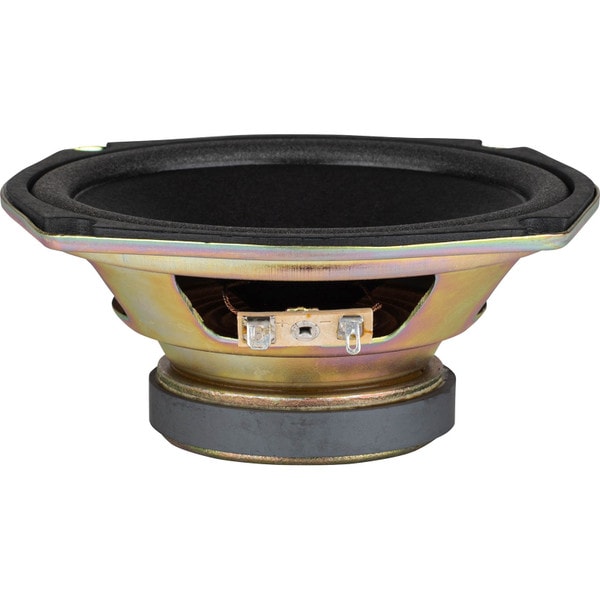

The CW136B15 5-1/4" Paper Cone Woofer utilizes a pressed paper cone, foam surround and throw-back style chrome dust cap. A pincushion style frame and common dimensions make this a great option as a replacement, or a budget choice for a new build. A 3/4" diameter voice coil wound on an aluminum former helps keep moving mass low for an above average SPL of 88.7 dB.

Product Details

BrandFactory Buyouts
ModelCW136B15
Part Number299-4250
UPC848864073705
Unit of MeasureEach
Weight0.95

Product Specifications

Nominal Diameter5-1/4"
Bolt Circle Diameter5.375
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response70 to 6,000Hz
Sensitivity88.69dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)73.68Hz
DC Resistance (Re)7.344Ω
Voice Coil Inductance (Le)0.235mH
Mechanical Q (Qms)3.986
Electromagnetic Q (Qes)1.239
Total Q (Qts)0.9453
Compliance Equivalent Volume (Vas)0.5233ft³
Diaphragm Mass Inc. Airload (Mms)4.45g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)100.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.375"
Baffle Cutout Diameter4.875"
Depth2.25"
# Mounting Holes4
