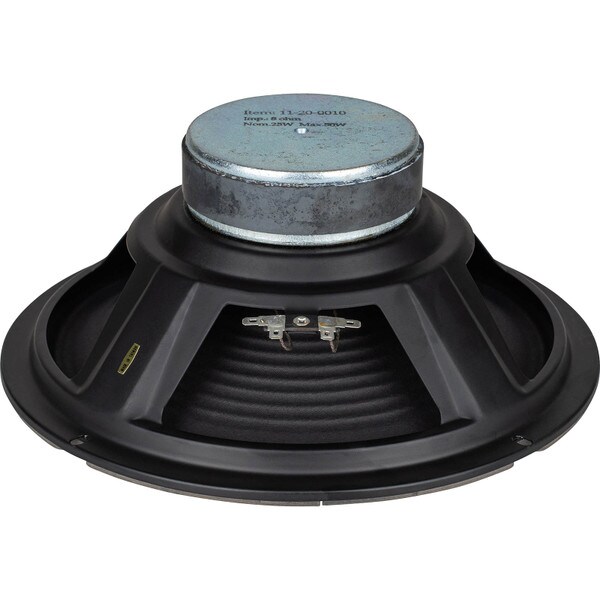

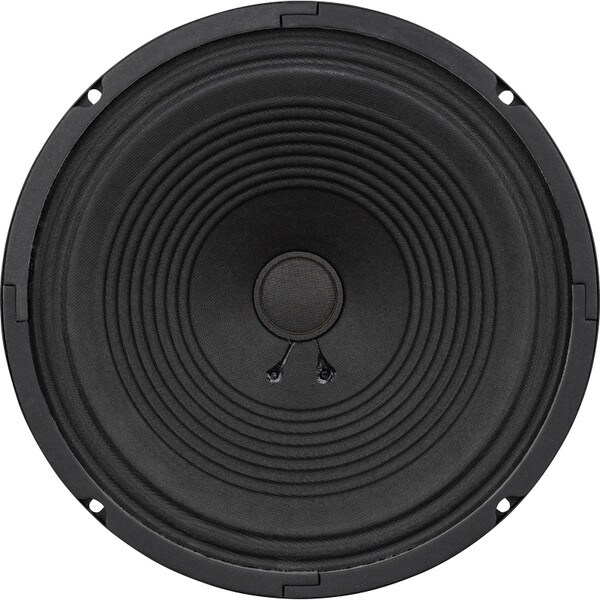

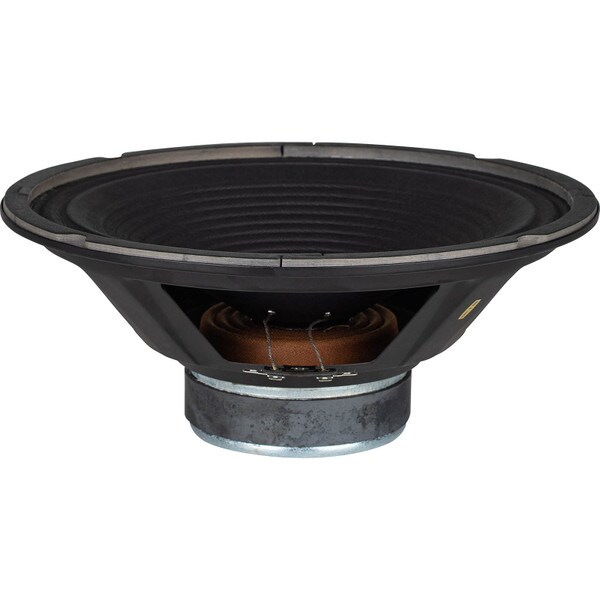

BUYOUT CES 11-20-0010 10" Midrange/Guitar Speaker

Factory Buyouts
Part #299-216

BUYOUT CES 11-20-0010 10" Midrange/Guitar Speaker

Factory Buyouts
Part #299-216
Model: 11-20-0010
The CES 11-20-0010 10" Midrange/Guitar Speaker uses a ribbed paper cone oversize voice coil for high efficiency midrange performance. The one-piece cone and surround allow for better control over linearity and decreased distortion.


Key Features
  • Paper cone and oversize voice coil for clear, high efficiency reproduction
  • 8 ohm impedance
  • 1-3/8” copper voice coil on aluminum former
BUYOUT $14.88
Bulk Pricing
Quantity:Qty: 1-5 $14.88/ea
Quantity:Qty: 6-11 $13.24/ea
Quantity:Qty: 12+$12.65/ea
Ships next business day. Details

587In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

CES 11-20-0010 10" Midrange/Guitar Speaker

The CES 11-20-0010 10" Midrange/Guitar Speaker is a great choice as a dedicated high-output midrange or guitar speaker. An 8 ohm impedance means multiples can be used for greater output ability without emptying your wallet. A ribbed paper cone helps add stiffness for decreased distortion.


Product Details

Model11-20-0010
Part Number299-216
UPC848864072043
Unit of MeasureEach
Weight4.29

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.625
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Frequency Response125-6,000Hz
Sensitivity91.99dB 2.83V/1m
Voice Coil Diameter1.375"

Thiele-Small Parameters

Resonant Frequency (Fs)124.5Hz
DC Resistance (Re)7.165Ω
Voice Coil Inductance (Le)0.6376mH
Mechanical Q (Qms)6.399
Electromagnetic Q (Qes)2.754
Total Q (Qts)1.925
Compliance Equivalent Volume (Vas)0.5158ft³
Diaphragm Mass Inc. Airload (Mms)20.73g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)363.1cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10"
Baffle Cutout Diameter9.125"
Depth4.25"
# Mounting Holes4
