BUYOUT BN83-01478A 1-3/8" x 2-5/8" Paper Cone Full-Range Speaker

Factory Buyouts
Part #289-2240

BUYOUT BN83-01478A 1-3/8" x 2-5/8" Paper Cone Full-Range Speaker

Factory Buyouts
Part #289-2240
Model: BN83-01478A

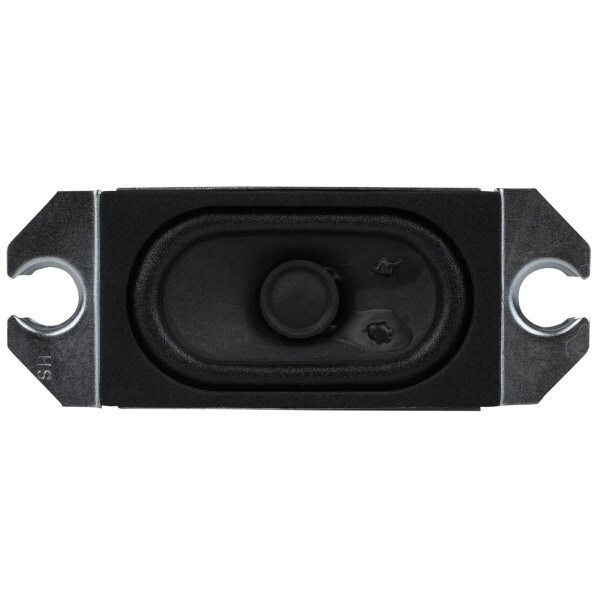

This 8 ohm 1-3/8" x 2-5/8" full-range replacement TV speaker is an OEM replacement speaker for the Samsung LN32B350F1 LCD TV. With a paper cone, paper voice coil former, and cloth surround this driver will produce natural frequency response with minimal resonances.
Key Features
  • Foam front gasket ensures good seal when rear mounted
  • Ideal for line array experiments thanks to its low cost
  • 0.11" and 0.205" terminals for easy solderless connection
  • Only 1-1/8" deep for use in extremely shallow designs
BUYOUT $0.39
MSRP: $0.98
Save $0.59 (60%)
Bulk Pricing
Ships next business day. Details

27152In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

BN83-01478A 1-3/8" x 2-5/8" Paper Cone Full-Range Speaker

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-3/8" x 2-5/8" speaker, which is part of a massive TV speaker factory buyout from Brazil.

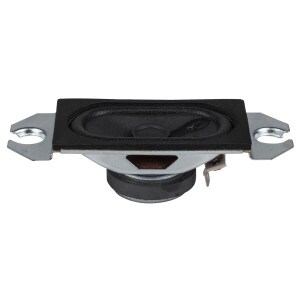

Originally found in a high end LCD TV from Samsung, this speaker features a rectangular design with a low profile frame making it a great choice for narrow designs such as sound bars and portable speakers. With a paper cone and voice coil former and a cloth surround this driver will produce smooth response from 150 to 15,000 Hz.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelBN83-01478A
Part Number289-2240
UPC848864048420
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter1 x 2"
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance16Ω
Frequency Response150 to 15,000Hz
Sensitivity75dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)292Hz
DC Resistance (Re)14.1Ω
Voice Coil Inductance (Le)0.556mH
Mechanical Q (Qms)4.12
Electromagnetic Q (Qes)9.42
Total Q (Qts)2.86
Compliance Equivalent Volume (Vas)0.0024ft³
Mechanical Compliance of Suspension (Cms)0.318mm/N
Surface Area of Cone (Sd)12.56cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside DiameterIncluding mounting tabs: 1.625" x 4.375"
Baffle Cutout DiameterRear mount: 1.375" x 2.625"
Depth1.125"
# Mounting Holes2
