B&C 15PZB100 15" Woofer

3 Questions, 3 Answers or
B&C Speakers
Part #294-671

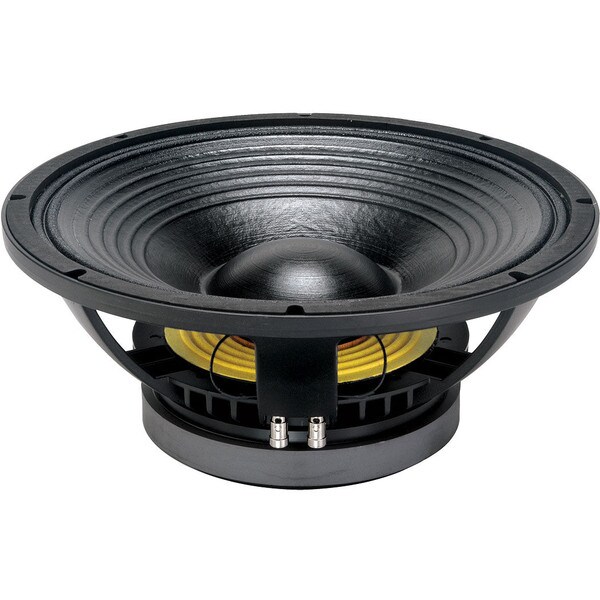

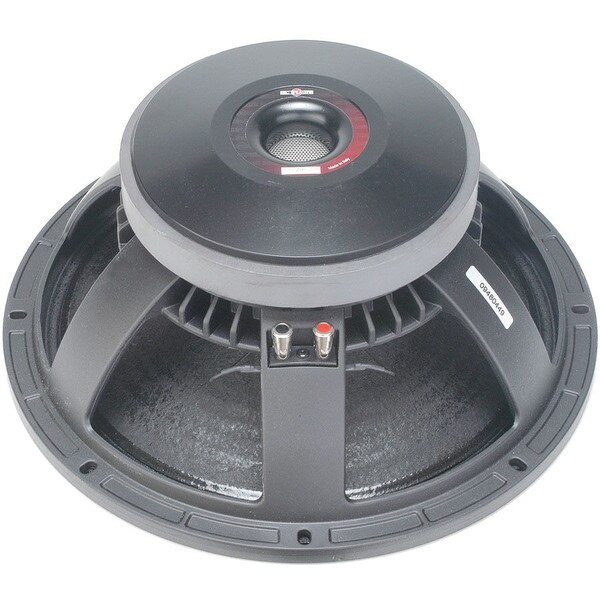

B&C 15PZB100 15" Woofer

B&C Speakers
Part #294-671
Model: 15PZB100
3 Questions, 3 Answers or
Made in Italy, the B&C Speakers 15PZB100 15" woofer provides high power handling capability, versatility, and low distortion.
Key Features
  • 1,400 watt continuous program power
  • 4" copper voice coil
  • 97 dB 1w/1m sensitivity
  • Double silicone spider with optimized compliance
  • 8 mm Xmax for high-pressure bass
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $327.11
+ FREE SHIPPING
MSRP: $545.18
Save $218.07 (40%)
Bulk Pricing
Order in the next 14 hr 15 min to ship today. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 15PZB100 15" Woofer

The versatile and durable B&C 15PZB100 15" pro woofer excels in a multitude of demanding tasks: compact 2-way and 3-way stage systems, vented  box subwoofer, or horn-loaded loudspeaker driver. The 15PZB100's large, well-ventilated ceramic magnet system, treated cone, and optimized suspension guarantee years of exceptional performance and overall reliability.

Product Details

BrandB&C Speakers
Model15PZB100
Part Number294-671
UPC844632002182
Unit of MeasureEach
Weight28.8

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.7
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response40 to 2,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)2mH
Mechanical Q (Qms)6.5
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)3.8ft³
BL Product (BL)25.8T·m
Diaphragm Mass Inc. Airload (Mms)154g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth6.85"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F3108.4Hz
Vented Volume3.5ft³
Vented F342.5Hz
