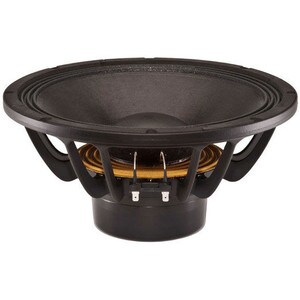

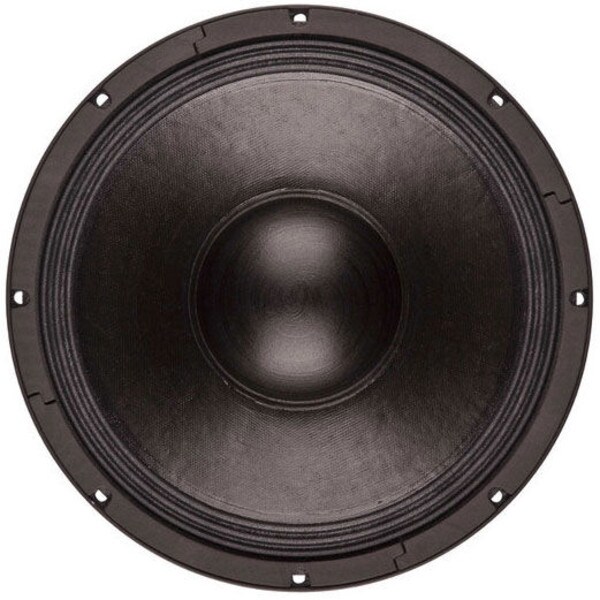

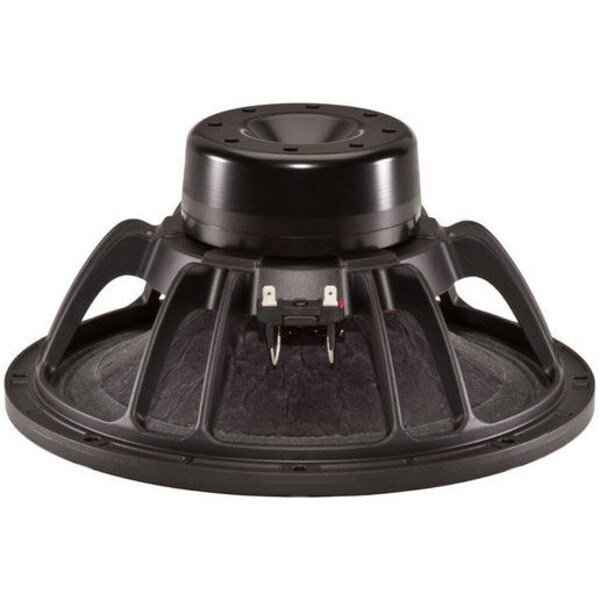

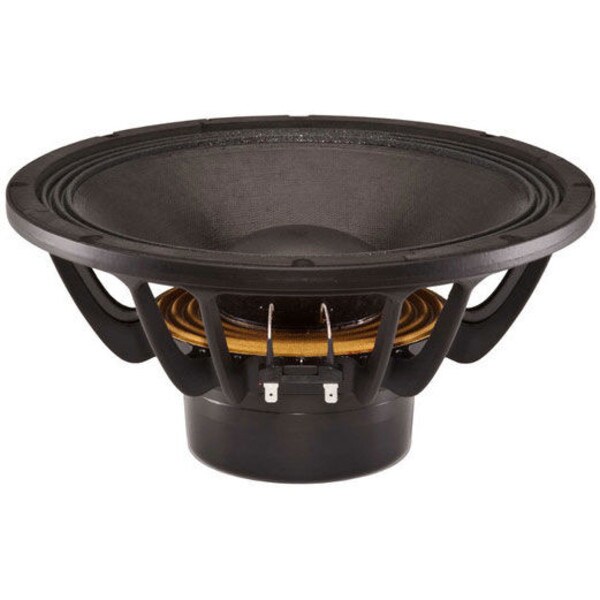

B&C 12NDL88 12" Neodymium Woofer

2 Questions, 6 Answers or
B&C Speakers
Part #294-5994

B&C 12NDL88 12" Neodymium Woofer

B&C Speakers
Part #294-5994
Model: 12NDL88
2 Questions, 6 Answers or
The 12NDL88 12" 8 ohm woofer from B&C is excellent for use in the most demanding high output speaker systems. This driver can handle 1,400 watts of continuous power and has 8 mm Xmax capabilities thanks to an advanced neodymium motor and carefully optimized, double spider suspension.
Key Features
  • Smooth response and excellent efficiency allow natural sound at extreme output levels
  • Waterproof treated paper cone stands up to the harshest conditions
  • Ventilated voice coil gap reduces power compression and increases power handling
  • 98 db sensitivity with 1,400 watt continuous program power for extremely dynamic output levels
  • 3.5" aluminum voice coil on glass fiber former
Your Price: $317.34
+ FREE SHIPPING
MSRP: $528.90
Save $211.56 (40%)
Bulk Pricing

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12NDL88 12" Neodymium Woofer

B&C's 12NDL88 12" woofer combines cutting edge technology with brute force design, creating a highly versatile driver ideally suited to the pro audio environment. A newly-tooled 3.5" voice achieves the perfect balance of efficiency, motor strength, and extended response. With features such as a weatherproof treated paper cone, 1,400 watt continuous power handling, and rigid cast aluminum frame, this driver will handle the most extreme conditions.

The ventilated magnet assembly helps keep the motor cool even after hours of high power use. B&C's NDL motor works with a high-energy neodymium magnet mounted inside the voice coil, precisely focusing the magnetic field. The 12NDL88 offers tremendous weight savings yet is extremely powerful and durable, easily handling the demanding requirements of the pro sound market.

Product Details

BrandB&C Speakers
Model12NDL88
Part Number294-5994
UPC848864021188
Unit of MeasureEach
Weight12.9

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response50 to 3,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3.5"

Thiele-Small Parameters

Resonant Frequency (Fs)51Hz
DC Resistance (Re)6Ω
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)5
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)1.84ft³
BL Product (BL)19.9T·m
Diaphragm Mass Inc. Airload (Mms)71g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.51"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.63ft³
Sealed F3159.8Hz
Vented Volume1.75ft³
Vented F355.8Hz
