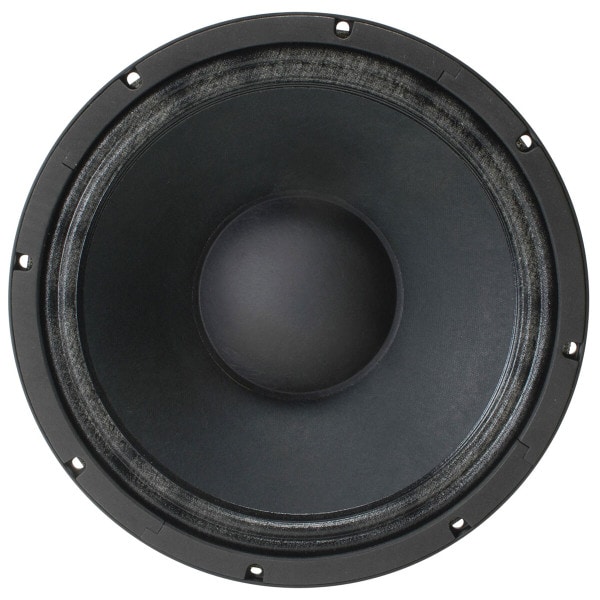

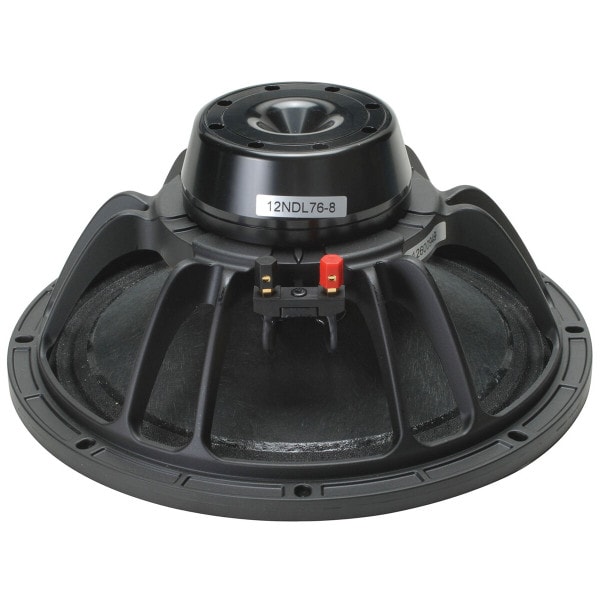

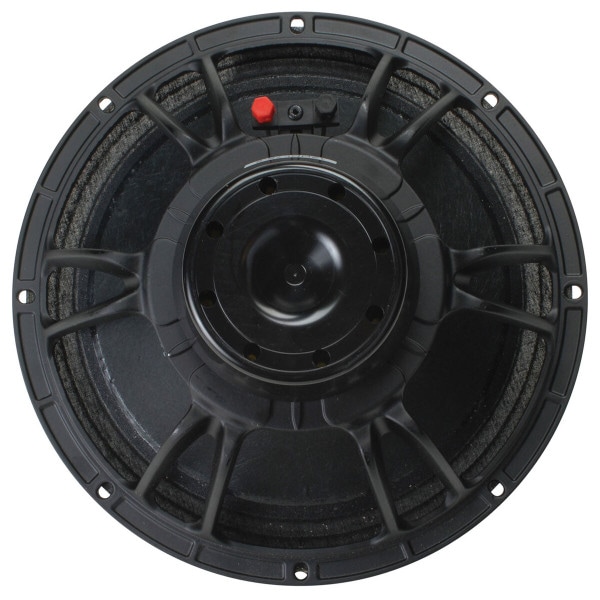

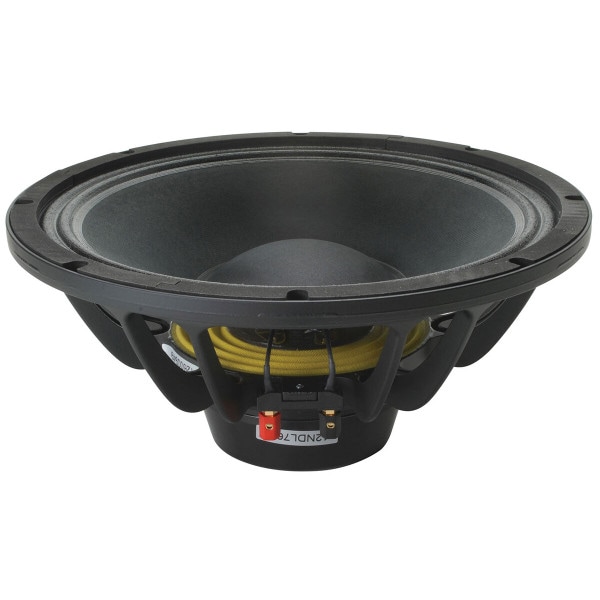

B&C 12NDL76 12" Neodymium Woofer

B&C Speakers
Part #294-570

B&C 12NDL76 12" Neodymium Woofer

B&C Speakers
Part #294-570
Model: 12NDL76
Smooth, loud, and light—the B&C Speakers 12NDL76 12" neo woofer is a solid bass and mid driver for professional PA loudspeaker systems.
Key Features
  • Smooth response and excellent efficiency
  • Lightweight but powerful neodymium magnet
  • Ventilated voice coil gap reduces power compression
  • 800 watt continuous program power
  • 3" aluminum voice coil
  • 100 dB 1w/1m sensitivity
Your Price: $252.23
+ FREE SHIPPING
MSRP: $420.38
Save $168.15 (40%)
Bulk Pricing
Ships next business day. Details

Only 4 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12NDL76 12" Neodymium Woofer

The B&C Speakers 12NDL76 12" neodymium driver delivers great results when used for high-output midrange applications, in direct radiator or horn loaded configurations. It also works well as the woofer in 2-way speaker systems. The 12NDL76 features good power handling and Xmax capabilities, thanks to an advanced neodymium motor and carefully optimized suspension.

Product Details

BrandB&C Speakers
Model12NDL76
Part Number294-570
UPC844632086076
Unit of MeasureEach
Weight10.45

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response50 to 2,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)0.21
Total Q (Qts)0.2
Compliance Equivalent Volume (Vas)2.5ft³
BL Product (BL)20.1T·m
Diaphragm Mass Inc. Airload (Mms)53g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3211.1Hz
Vented Volume1.63ft³
Vented F357.3Hz
