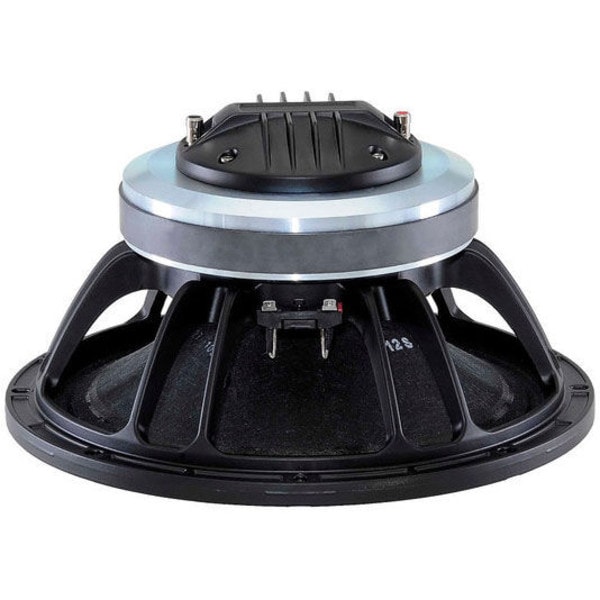

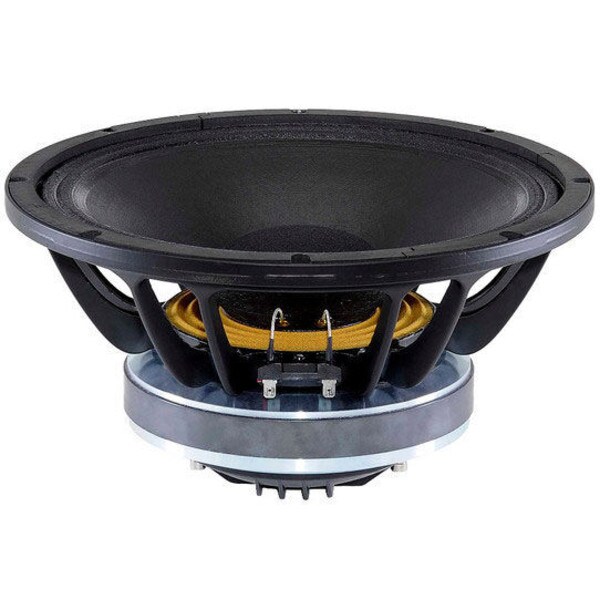

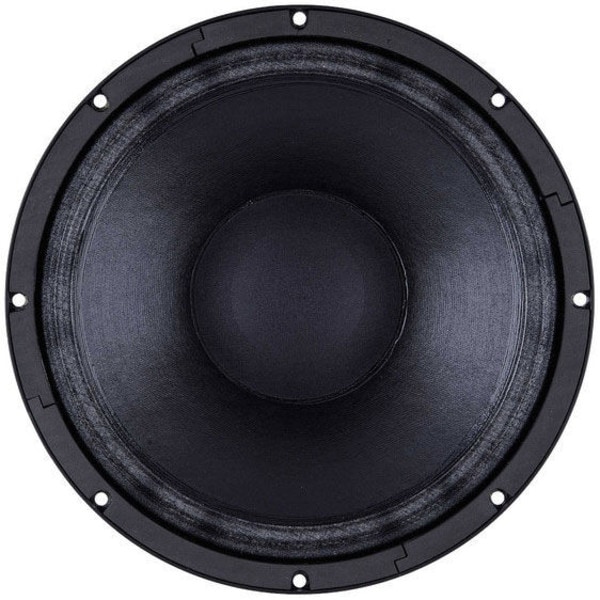

B&C 12FCX76 12" Professional Coaxial Speaker 80 x 80 8 Ohm

B&C Speakers
Part #294-5770
Model: 12FCX76
3 Questions, 5 Answers or
The B&C 12FCX76 12" coaxial speaker's high-strength LF/HF motor, titanium diaphragm HF driver, and FEA-optimized design produce high output and minimal distortion.
Key Features
  • Coaxial HF driver with 3" voice coil, titanium diaphragm, and 80° nominal coverage
  • High-energy ferrite magnet shared by LF and HF components
  • Woofer's copper-wound 3" voice coil ensures good power handling
  • 1.2 kHz recommended crossover point
  • Use with passive or active crossover (not included)
Your Price: $423.10
+ FREE SHIPPING
MSRP: $705.17
Save $282.07 (40%)
Bulk Pricing
Order in the next 8 hr 41 min to ship today. Details

Only 3 In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

B&C 12FCX76 12" Professional Coaxial Speaker 80 x 80 8 Ohm

B&C's 12FCX76 12" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The 12FCX76 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, stage monitor wedges, studio monitors, or high-efficiency home audio systems. Power handling is 700 watts continuous program; combined with the driver's high efficiency, this results in very good maximum output. The 12FCX76's large-format HF compression driver permits an exceptionally low crossover point of 1,200 Hz, which offers a more consistent directivity transition from LF cone to HF horn.

Product Details

BrandB&C Speakers
Model12FCX76
Part Number294-5770
UPC848864008752
Unit of MeasureEach
Weight21.05

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance
Frequency Response47 to 18,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)47Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)11
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)2.98ft³
BL Product (BL)15.6T·m
Diaphragm Mass Inc. Airload (Mms)54g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialCoated Paper
Voice Coil Wire MaterialCopper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth6.65"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.85ft³
Sealed F3109.4Hz
Vented Volume1.5ft³
Vented F364.1Hz
