  • B&C 12BG100 12" Neodymium Subwoofer

B&C 12BG100 12" Neodymium Subwoofer

B&C Speakers
Part #294-697

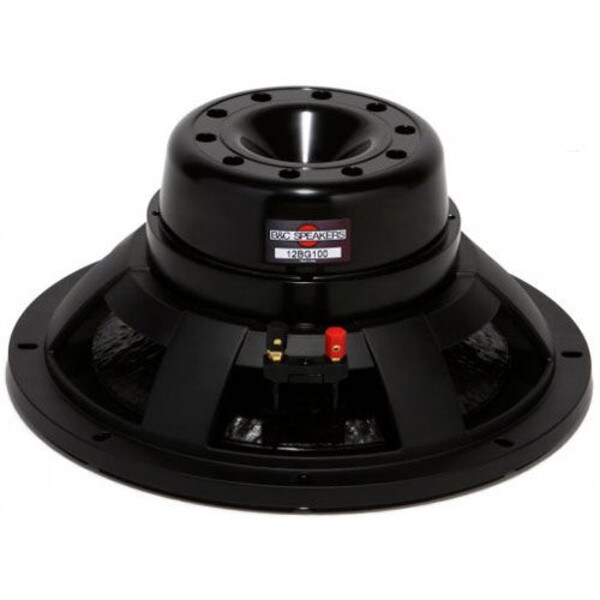

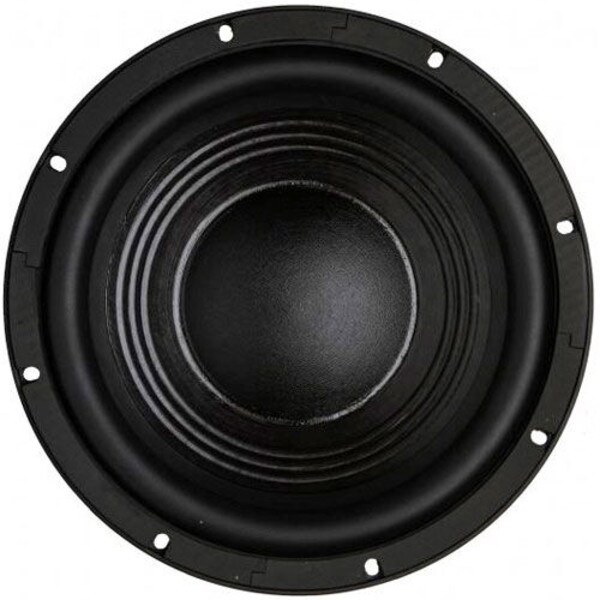

B&C 12BG100 12" Neodymium Subwoofer

B&C Speakers
Part #294-697
Model: 12BG100
The B&C Speakers 12BG100 12" subwoofer features a high strength/lightweight neodymium motor and is recommended for direct radiator or horn loaded applications.
Key Features
  • High BL factor and generous Xmax deliver massive bass
  • Rubber half-roll surround for unrestricted, linear cone travel
  • Lightweight but powerful neodymium magnet
  • Ventilated voice coil gap reduces power compression
  • Aluminum demodulation ring minimizes distortion
  • Double silicone spider with optimized compliance
  • 2,000 watt continuous program power
Your Price: $424.74
+ FREE SHIPPING
MSRP: $707.91
Save $283.17 (40%)
Bulk Pricing

Back-Ordered

Ships in 7-10 Business Days
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C 12BG100 12" Neodymium Subwoofer

The B&C Speakers 12BG100 12" subwoofer features a high strength/lightweight neodymium motor and is recommended for direct radiator or horn loaded applications. It will also deliver outstanding results when deployed as the woofer in high-output 2-way speaker systems. Good power handling and Xmax capabilities thanks to a well-ventilated neodymium motor, 4" diameter 1" long voice coil, and carefully optimized suspension.

Product Details

BrandB&C Speakers
Model12BG100
Part Number294-697
UPC844632086243
Unit of MeasureEach
Weight21.3

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response40 to 1,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.6mH
Mechanical Q (Qms)6.8
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)1.45ft³
BL Product (BL)23T·m
Diaphragm Mass Inc. Airload (Mms)152g
Maximum Linear Excursion (Xmax)10.5mm
Surface Area of Cone (Sd)522cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.5"
Baffle Cutout Diameter11.1"
Depth5.4"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F399Hz
Vented Volume1.4ft³
Vented F340.2Hz
