Avel Lindberg Y236907 800VA 45V+45V Toroidal Transformer

Avel Lindberg
Part #122-705

Avel Lindberg Y236907 800VA 45V+45V Toroidal Transformer

Avel Lindberg
Part #122-705
Model: Y236907

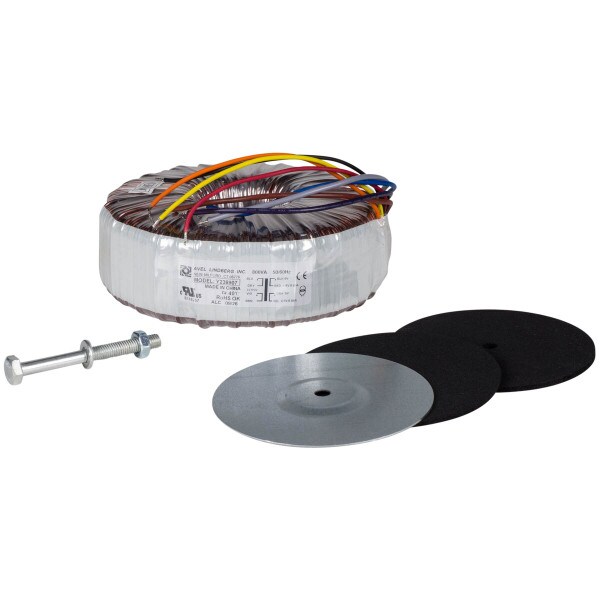

Transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt.
Your Price: $160.98
+ FREE SHIPPING
MSRP: $203.99
Save $43.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $160.98/ea
Quantity:Qty: 4+$156.15/ea
Order in the next 3 hr 48 min to ship today. Details

2In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

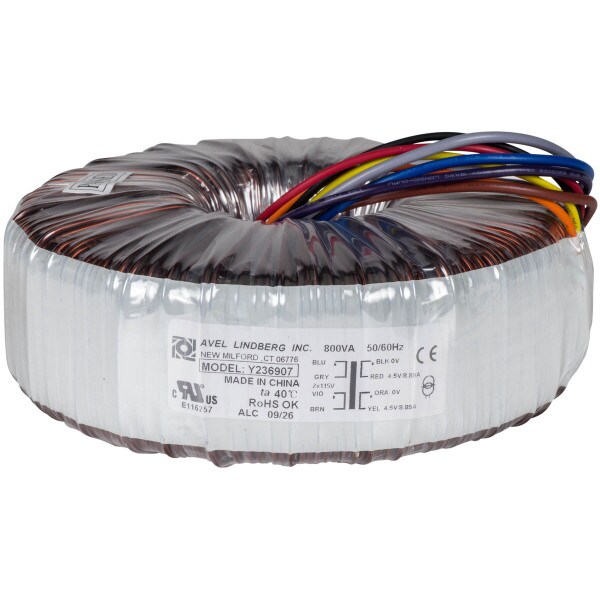

Avel Lindberg Y236907 800VA 45V+45V Toroidal Transformer

AVEL's Y23 series power transformers offer exceptional value and performance for use in any high-quality power supply. All Y23 transformers are wound with heavy gauge copper and are wrapped with polyester tape. Meeting all major industry standards, these include double-insulated primary leads and a mounting kit with plate, pads, nut, and bolt. Other features include: 3% secondary tolerance at full load, 6" stranded copper leads with PVC insulation, and UL506/ CSA 22.2 and CE certifications

Specifications: • Primaries: 115V + 115V • Frequency: 50/60 Hz • Load Capacity: 800 VA • Secondary Voltage: 45V + 45V • Dimensions: 6.3" D x 2.2" H • Weight: 13.2 lbs.

Product Details

BrandAvel Lindberg
ModelY236907
Part Number122-705
UPC844632051203
Unit of MeasureEach
Weight13.9
