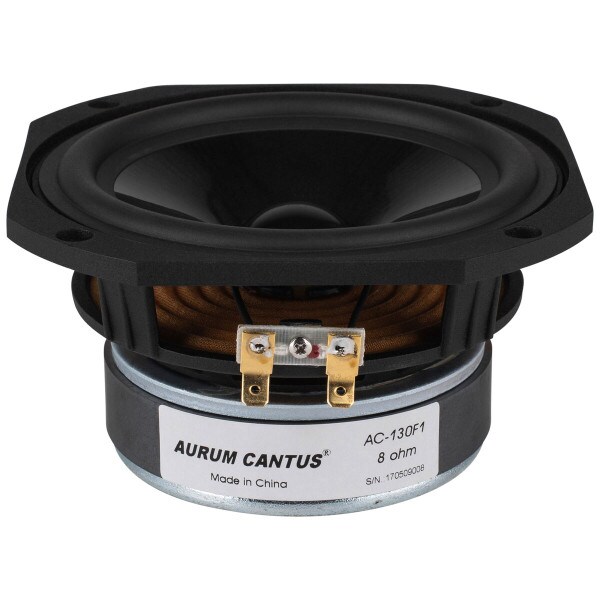

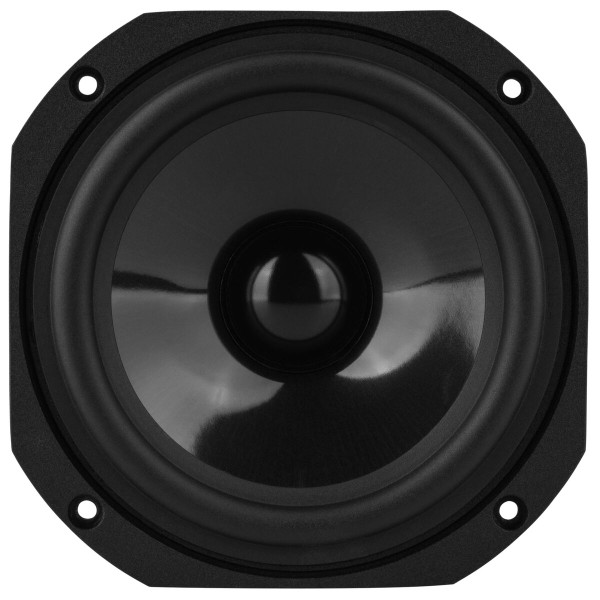

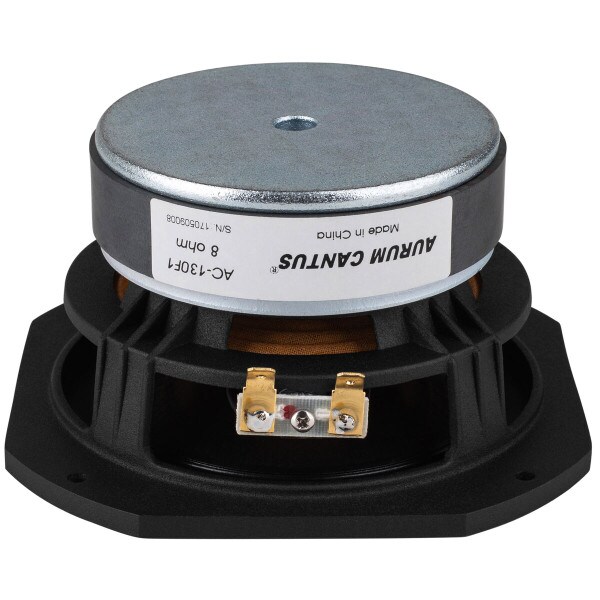

Aurum Cantus AC-130F1 5-1/4" Woofer

Aurum Cantus
Part #296-400

Aurum Cantus AC-130F1 5-1/4" Woofer

Aurum Cantus
Part #296-400
Model: AC-130F1
The AC-130F1 utilizes their composite polymer cone for a smooth frequency response with minimal breakup. A high compliance design allows this woofer to produce clean bass in mid-sized enclosures.
Key Features
  • Carbon/mica composite poly cone
  • Smooth frequency response with minimal breakup
  • Long-throw design and healthy Xmax for strong bass
Your Price: $71.49
+ FREE SHIPPING
MSRP: $92.99
Save $21.50 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $71.49/ea
Quantity:Qty: 4+$67.92/ea
Order in the next 0 hr 18 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Aurum Cantus AC-130F1 5-1/4" Woofer

Aurum Cantus midwoofers feature high-performance cone materials, long-excursion designs, and high quality construction. The AC-130F1 utilizes their composite polymer cone for a smooth frequency response with minimal breakup. A high compliance design allows this woofer to produce clean bass in mid-sized enclosures.

Product Details

BrandAurum Cantus
ModelAC-130F1
Part Number296-400
UPC844632003264
Unit of MeasureEach
Weight3.3

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)60 Watts
Power Handling (MAX)90 Watts
Impedance8Ω
Frequency Response35 to 7,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
DC Resistance (Re)7Ω
Voice Coil Inductance (Le)0.35mH
Mechanical Q (Qms)3.1
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)1.27ft³
Mechanical Compliance of Suspension (Cms)2.84mm/N
BL Product (BL)6.1T·m
Diaphragm Mass Inc. Airload (Mms)9.7g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)95cm²

Materials of Construction

Cone MaterialPoly Composite
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.51"
Baffle Cutout Diameter4.875"
Depth2.625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.22ft³
Sealed F399Hz
Vented Volume0.33ft³
Vented F362Hz
