Atlas Sound PD-5VH 40W Compression Driver

Atlas Sound
Part #242-858

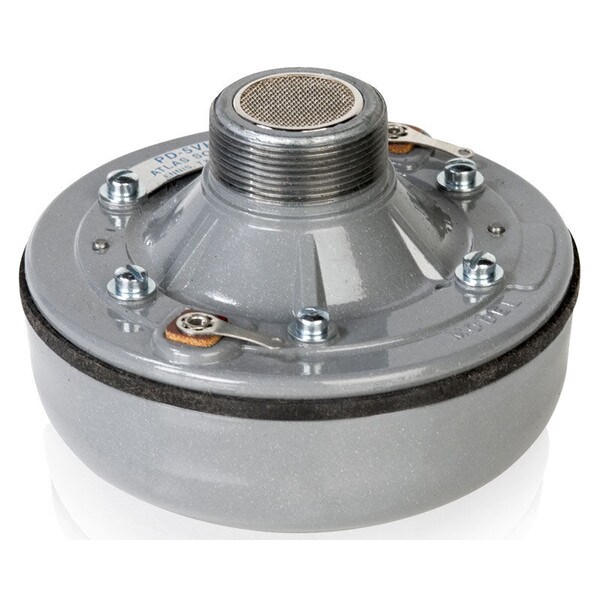

Atlas Sound PD-5VH 40W Compression Driver

Atlas Sound
Part #242-858
Model: PD-5VH
Featuring an Alnico V-DG magnet, the Atlas Sound PD-5VH 40W compression driver provides an extended frequency response for optimum intelligibility. The powerful driver for large format horns delivers a powerful, rich sound to music, public address, and signaling systems. The 2" voice coil is machined to the optimum tolerances. The driver also provides terminals direct to the 16 ohm voice coil.
Key Features
  • Powerful driver for large format horns to deliver powerful sound reproduction
  • Extended frequency response to create the optimum intelligibility
  • Great for indoor and outdoor use with environment resistant construction
  • Ideal for music, public address, and signaling systems
  • Popular Leslie replacement for Jensen V-21
Your Price: $188.99
+ FREE SHIPPING
MSRP: $233.99
Save $45.00 (19%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Atlas Sound PD-5VH 40W Compression Driver

The 40W, 16 ohm Atlas Sound PD-5VH compression driver provides a powerful, intelligible, extended frequency response to large format horns. The 2" voice coil is machined to the optimum tolerances. Equipped with an Alnico V-DG magnet, the PD-5VH offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. The driver also provides terminals direct to the voice coil. The units are finished in gray, baked epoxy and mounts to large format horns that terminate in standard 1-3/8"-18 male coupling thread.

Specifications: • Power rating: 40W @ 16 ohms • Plane wave frequency response: 110 - 4,100 Hz • Sensitivity: 110.7 • Impedance: 16 ohms • Voice coil: 2" • Dimensions: 5.125" H x 4.375" W.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Product Details

BrandAtlas Sound
ModelPD-5VH
Part Number242-858
UPC612079117130
Unit of MeasureEach
Weight3.9
