BUYOUT 6mm Condenser Electret Microphone Capsule 3V

Factory Buyouts
Part #249-125

BUYOUT 6mm Condenser Electret Microphone Capsule 3V

Factory Buyouts
Part #249-125

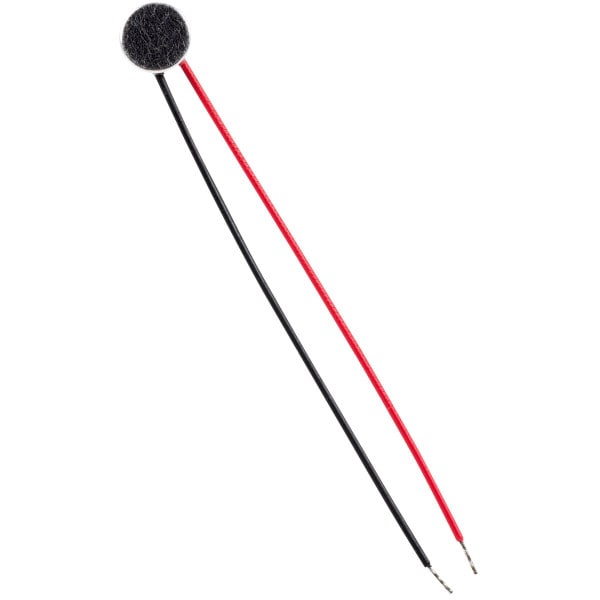

This small component condenser microphone is tiny at 6 mm, making it a great part to use in discrete applications.
Key Features
  • 6 mm microphone capsule

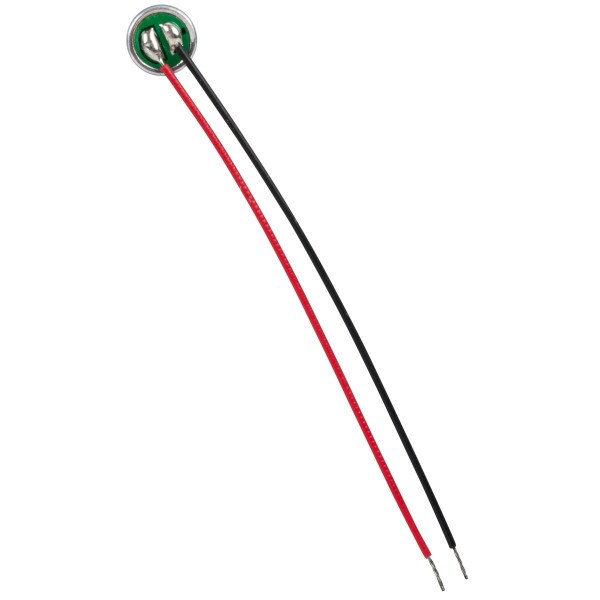

  • Simple design with two wire leads (red and black)
  • Omnidirectional pattern
  • Sensitivity of 42 dB @ 1 kHz and 1 microbar
BUYOUT $0.98
MSRP: $2.99
Save $2.01 (67%)
Bulk Pricing
Quantity:Qty: 1-9 $0.98/ea
Quantity:Qty: 10-99 $0.75/ea
Quantity:Qty: 100-999 $0.57/ea
Quantity:Qty: 1000+$0.49/ea
Order in the next 12 hr 49 min to ship today. Details

2250In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

6mm Condenser Electret Microphone Capsule 3V

Use this omnidirectional microphone when space is tight. Power the microphone with small batteries as its typical requirement is 3V. Since this little mic has two wire leads instead of the normal three, an emitter follower microphone preamp circuit is required to function.

Specifications: • Sensitivity (@ 1 kHz, 1 microbar): -45 dB min., -42 dB std., -39 dB max • Directivity: Omnidirectional • Impedance: 2.2K ohms • Input SPL: 110 dB • Operation voltage: 1V - 10V, typical operation of 3V • Current consumption: 500 uA • S/N Ratio: 60 dB • Operational temperature: -25°C - 70°C • Dimensions (dia. x H): 6 x 2 mm; Lead length: 50 mm, 30 AWG wire.

Product Details

BrandFactory Buyouts
Part Number249-125
UPC848864017198
Unit of MeasureEach
Weight0.01
