  • 3300059 6" Paper Cone Woofer 6 Ohm

BUYOUT 3300059 6" Paper Cone Woofer 6 Ohm

Factory Buyouts
Part #299-4206

BUYOUT 3300059 6" Paper Cone Woofer 6 Ohm

Factory Buyouts
Part #299-4206
Model: 33000259

The 3300059 6" Paper Cone Woofer utilizes a treaded paper cone, rubber surround and long-wound 1" voice coil.

Key Features
  • Capless design makes it a great experimental woofer
  • Long Xmax for surprising bass response
  • The bumped back plate allows the high-temp voice coil to move even more, so you get deeper bass without distortion
BUYOUT $9.98
MSRP: $14.99
Save $5.01 (33%)
Bulk Pricing
Quantity:Qty: 1-9 $9.98/ea
Quantity:Qty: 10-19 $9.48/ea
Quantity:Qty: 20+$8.98/ea
Ships next business day. Details

488In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

3300059 6" Paper Cone Woofer 6 Ohm

The 3300059 6" Paper Cone Woofer utilizes a treaded paper cone, rubber surround and long-wound 1" voice coil.

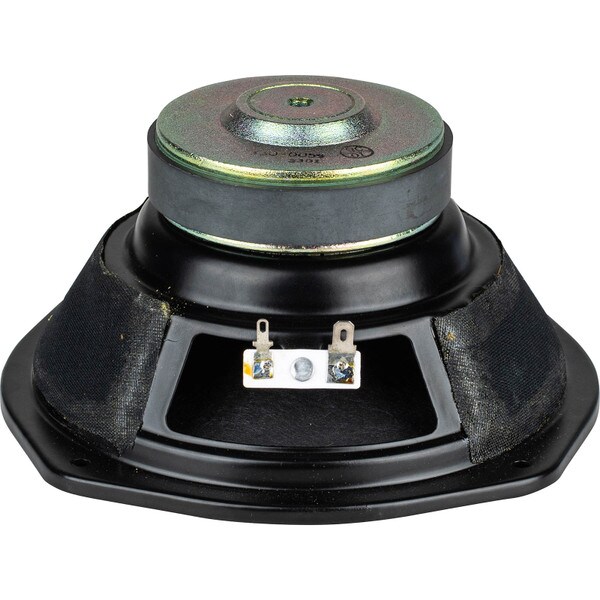

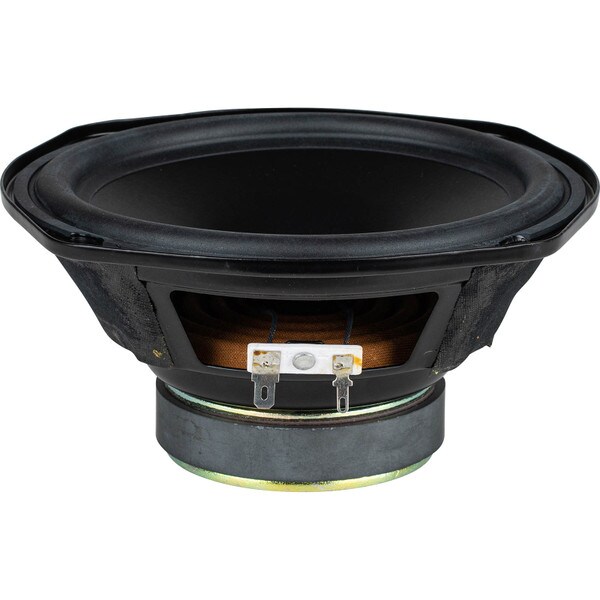

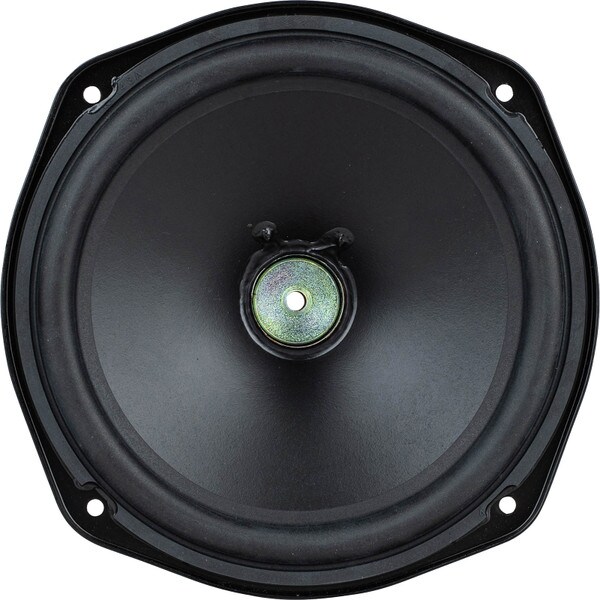

The 3300059 6" Paper Cone Woofer utilizes a treaded paper cone, rubber surround and long-wound 1" voice coil on an aluminum former. The woofer has no dustcap, making this a great choice for making a custom coaxial speaker. A dust cap can also be added for use as a normal woofer.

A pincushion style frame makes for simple surface-mount installation. This woofer works well in open-baffle or sealed enclosures and with 3.75mm Xmax it can handle higher output levels at lower frequencies.





Product Details

BrandFactory Buyouts
Model33000259
Part Number299-4206
UPC848864073507
Unit of MeasureEach
Weight2.2

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.125
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance6Ω
Frequency Response60 to 3,000Hz
Sensitivity85.97dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)60.8Hz
DC Resistance (Re)5.457Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)3.551
Electromagnetic Q (Qes)1.446
Total Q (Qts)1.027
Compliance Equivalent Volume (Vas)0.5811ft³
Diaphragm Mass Inc. Airload (Mms)10.95g
Maximum Linear Excursion (Xmax)3.75mm
Surface Area of Cone (Sd)136.8cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.25"
Baffle Cutout Diameter5.75"
Depth3.25"
# Mounting Holes4
