BUYOUT 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

Factory Buyouts
Part #299-4137

BUYOUT 10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

Factory Buyouts
Part #299-4137
Model: 10-10ounce

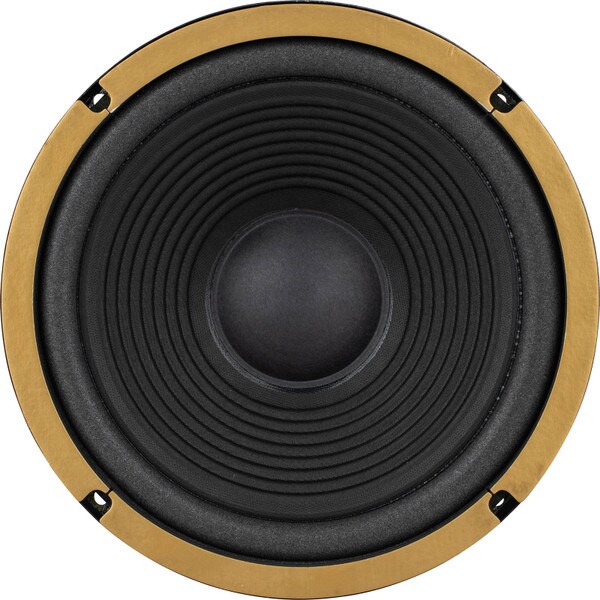

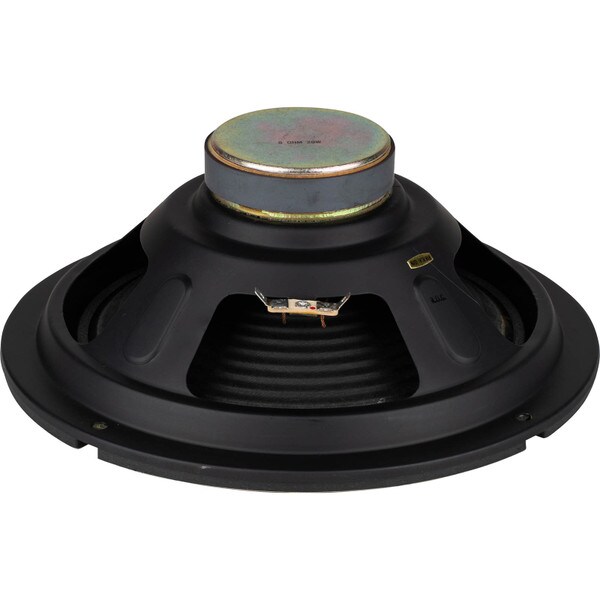

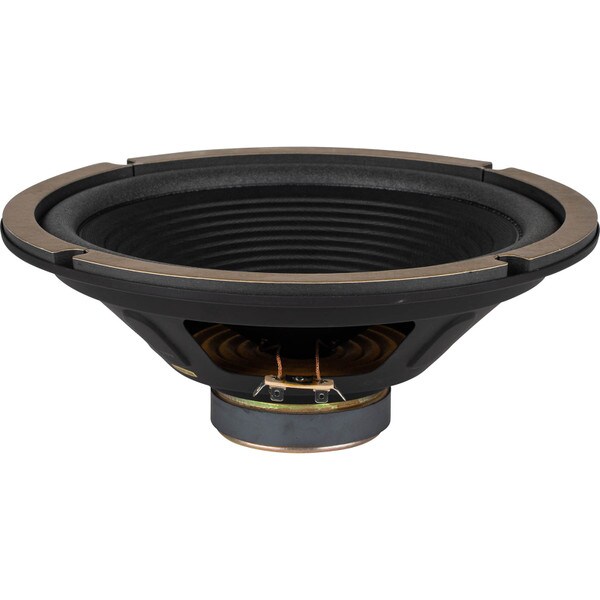

Featuring a ribbed paper cone and stylish gold gasket, this 10" woofer is a great choice as a replacement for your vintage speakers.
Key Features
  • Ribbed paper cone for added stiffness
  • Foam surround for clean excursion
  • Stylish gold gasket
BUYOUT $12.98
MSRP: $24.99
Save $12.01 (48%)
Bulk Pricing
Order in the next 0 hr 44 min to ship today. Details

884In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

10" Ribbed Paper Cone Woofer with Foam Surround 8 Ohm

Featuring a ribbed paper cone and stylish gold gasket, this 10" woofer is a great choice as a replacement for your vintage speakers, or as a cost effective option for a custom build.

A ribbed paper cone adds stiffness while maintaining light weight moving mass, helping keep sensitivity high. The foam surround helps keep excursion clean and under control.

Product Details

BrandFactory Buyouts
Model10-10ounce
Part Number299-4137
UPC848864072166
Unit of MeasureEach
Weight2.5

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.625
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance8Ω
Frequency Response30-2,000Hz
Sensitivity88.73dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)32.97Hz
DC Resistance (Re)6.564Ω
Voice Coil Inductance (Le)0.4223mH
Mechanical Q (Qms)8.042
Electromagnetic Q (Qes)1.373
Total Q (Qts)1.173
Compliance Equivalent Volume (Vas)6.522ft³
Diaphragm Mass Inc. Airload (Mms)22.08g
Maximum Linear Excursion (Xmax)2.25mm

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.25"
Baffle Cutout Diameter9.125"
Depth4"
# Mounting Holes4
