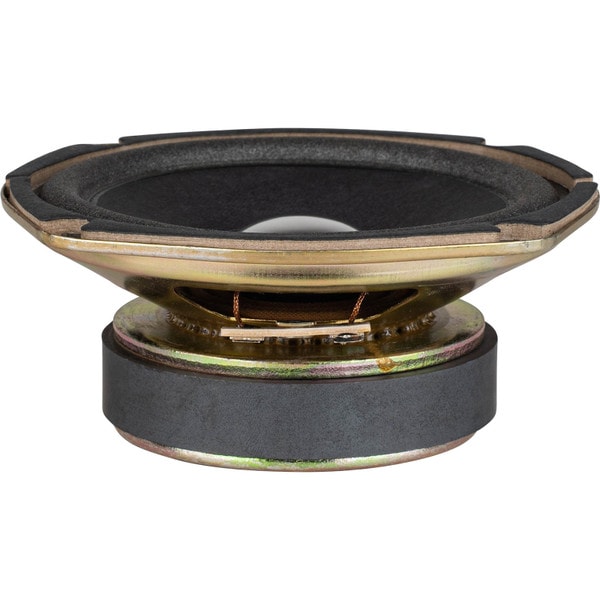

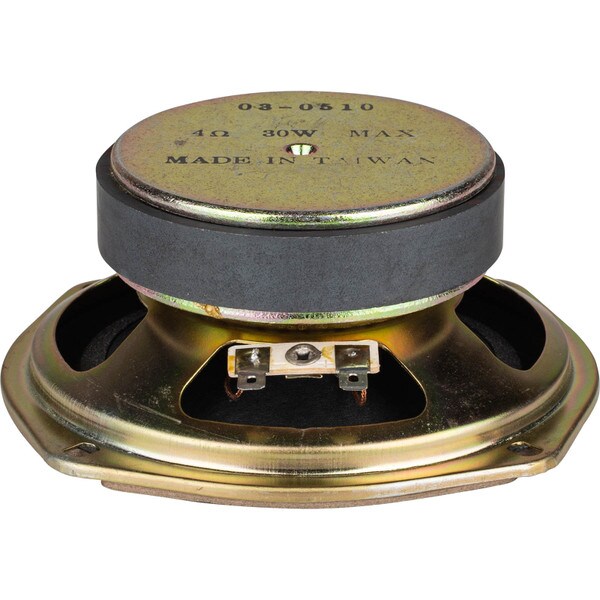

The 03-0510 4-3/4" paper Cone Extended Range Speaker utilizes a paper cone, foam surround and large ferrite magnet for above average sensitivity for low-powered amplifiers.

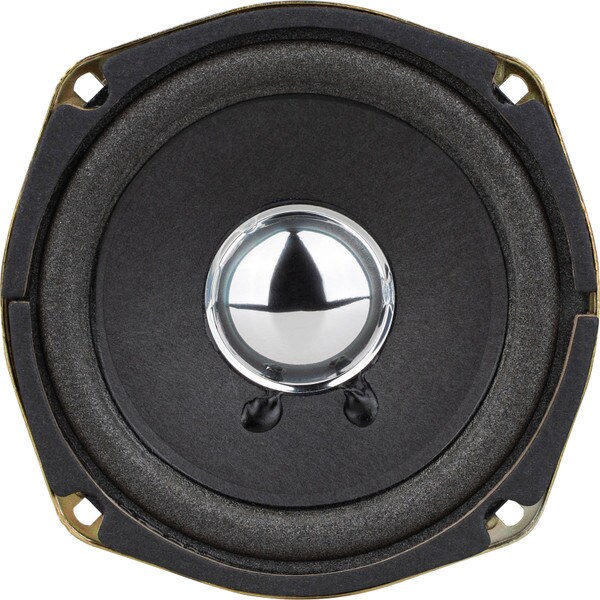

The 03-0510 4-3/4" paper Cone Extended Range Speaker utilizes a paper cone, foam surround and large ferrite magnet for above average sensitivity for low-powered amplifiers. A chrome dust cap and pincushion frame round out the design, making a speaker that is simple to install and has throw-back styling.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | 03-0510 |
| Part Number | 299-4212 |
| UPC | 848864073538 |
| Unit of Measure | Each |
| Weight | 1.45 |
Product Specifications | |
|---|---|
| Nominal Diameter | 5" |
| Bolt Circle Diameter | 4.625 |
| Power Handling (RMS) | 15 Watts |
| Power Handling (MAX) | 30 Watts |
| Impedance | 4Ω |
| Frequency Response | 150 to 8,000Hz |
| Sensitivity | 91.66dB 2.83V/1m |
| Voice Coil Diameter | 0.75" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 153.1Hz |
| DC Resistance (Re) | 3.436Ω |
| Voice Coil Inductance (Le) | 2.791mH |
| Mechanical Q (Qms) | 5.981 |
| Electromagnetic Q (Qes) | 1.056 |
| Total Q (Qts) | 0.8976 |
| Compliance Equivalent Volume (Vas) | 0.098ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 2.791g |
| Maximum Linear Excursion (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | 71.93cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Foam |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 4.75" |
| Baffle Cutout Diameter | 4.25" |
| Depth | 2" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.0875ft³ |
| Sealed F3 | 169.4Hz |
| Vented Volume | 0.12ft³ |
| Vented F3 | 123.1Hz |
