Yung SD500-6 500W Class D Subwoofer Plate Amplifier Module with 6 dB at 25 Hz

Yung International
Part #301-514

Yung SD500-6 500W Class D Subwoofer Plate Amplifier Module with 6 dB at 25 Hz

Yung International
Part #301-514
Model: SD500-6
The Yung SD500-6 Class D subwoofer amplifier module rocks larger home subwoofer loudspeakers with its 500 watts RMS at 4 ohms and bass boost.
Key Features

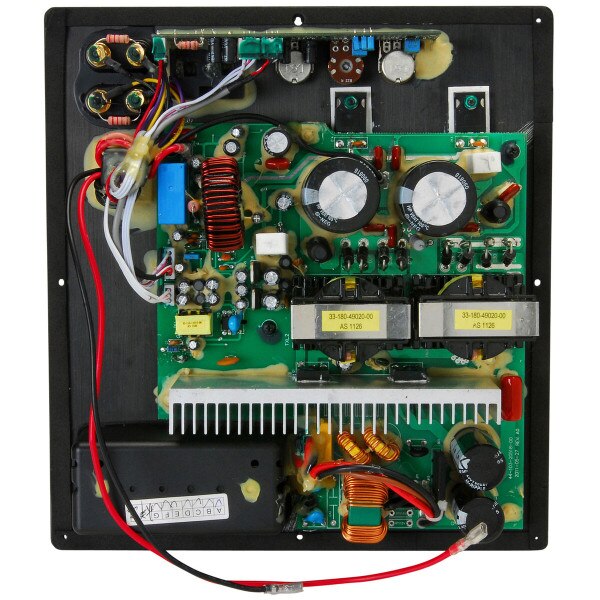

  • Class D amplifier circuit with switching power supply provides excellent efficiency
  • Capable of sustained, continuous output without thermal shutdown
  • Built-in limiter circuit protection prevents peak overloads
  • Low-level, high level, and LFE inputs for flexible interconnection
  • Manual and automatic on/off mode options
  • 6 dB @ 25 Hz bass boost plus fully adjustable phase, gain, and crossover points
  • Switchable 115/230V input voltage
Your Price: $248.98
+ FREE SHIPPING
MSRP: $329.99
Save $81.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $248.98/ea
Quantity:Qty: 4+$226.82/ea

Back-Ordered

Estimated back in stock 9/13/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Yung SD500-6 500W Class D Subwoofer Plate Amplifier Module with 6 dB at 25 Hz

Yung International's SD Series Class D subwoofer power amplifiers are equipped with the unique ability to operate continuously at full rated output—a performance attribute not shared by most home audio amp designs. The benefits of this remarkable reserve capacity include solid, punchy dynamic range and fewer "nuisance" shutdowns when operated at sustained high levels. A bass boost option enables the addition of 6dB of EQ centered at 25 Hz, perfect for sealed enclosures and even certain vented box alignments.

The amplifiers are also extremely compact, lightweight, and cool-running, allowing users to enjoy the advantages of compact system form factors and flexibility of placement. An internal peak limiting circuit prevents amplifier overload, and protection against internal and external faults is also provided. Input power requirements are user configurable to either 115 VAC or 230 VAC line voltage.

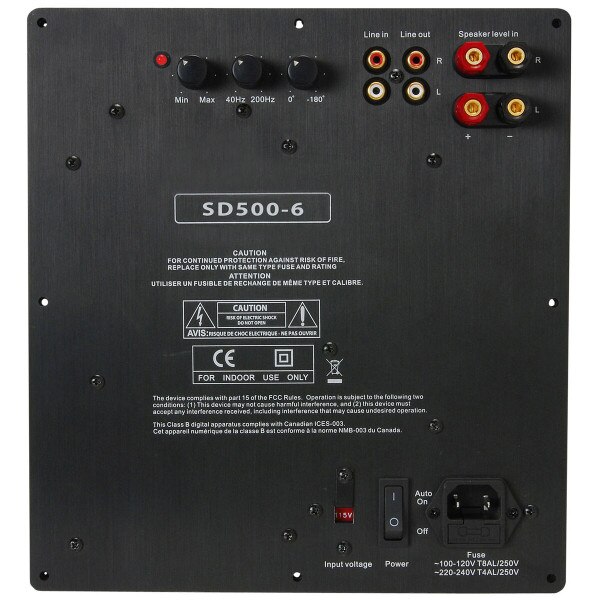

Room optimization and system integration are accomplished easily, thanks to the SD Series amps' inclusion of fully variable level, crossover frequency, and phase controls. Signal input is connected via dual RCA-type jacks, including the means to accept the output of an A/V receiver's LFE output via the left RCA in, and dual RCA jacks are also provided to facilitate line level loop-through. When in standby mode, the amp's full active operation is engaged by signal presence of less than 1/2 watt.

Specifications: • Measured power output: 500 watts RMS into 4 ohms @ < 1.0% THD • Signal to noise ratio (at rated power): >90 dB • Input sensitivity (@ low level): 210 mV/50 Hz • Bass boost: 6 dB @ 25 Hz • Low pass adjustment: 40 Hz to 200 Hz • Phase adjustment: Continuously variable from 0º (normal) to 180º (reverse) • Power requirements: Switchable, 115/230 VAC, 50/60 Hz • Dimensions: 9-7/8" W x 10-5/8" H x 3" D; Cutout dimensions: 8-7/8" W x 9-3/4" H.

Product Details

BrandYung International
ModelSD500-6
Part Number301-514
UPC844632095658
Unit of MeasureEach
Weight7.1
