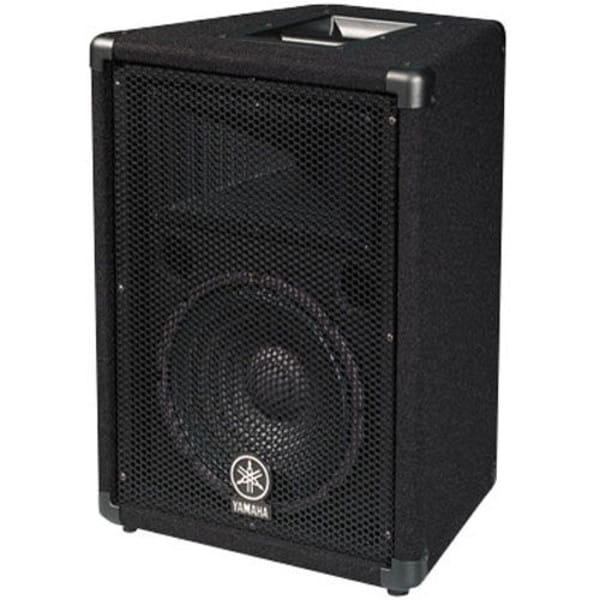

Yamaha BR10 10" 2-Way PA SpeakerHigh Quality, High Value
Developed and produced in the USA with the proven audio quality and reliability of Yamaha's acclaimed Concert Club series, the BR series uses parts and components carefully selected for clarity and long service life, Yamaha has optimized critical design parameters to achieve astounding sound at a very affordable price. In particular, the excellent low-frequency response produced by the bass-reflex system and the broad 90° x 40° high-frequency coverage provided by the titanium-dome horn tweeter are the result of painstaking tuning that achieves an outstanding balance between portability and performance, while remaining affordable for virtually any musician or organization.
Perfect Match for EMX Series Powered Mixers and P Series Power Amps
With the BR series speakers' dual phone jacks for input and parallel connection, you can set up a simple but high-performance PA system just by connecting a pair of these speakers to an EMX series powered mixer. Or you can use BR series speakers in conjunction with P series power amplifiers and an MG series mixing console to create a range of very versatile live sound systems. The YSP (Yamaha Speaker Processing) switch provided on EMX series mixers and P series amplifiers can be used to achieve optimum matching for significantly enhanced sound, in an instant!
Simple Yet Sophisticated Design
The BR series carries on the design excellence of the Concert Club series. The front grille has been enhanced in terms of both design and durability. In addition to a carpeted finish, the tough exterior features steel corner protectors and heavy duty metal handles for improved portability. The BR series was designed for the rigors of daily use in a portable sound reinforcement system. All BR models feature pole sockets for use with standard 1-3/8" (35 mm) diameter speaker stands for easy and effective positioning in a wide range of applications.
Specifications: Frequency response (-10 dB): 65 - 20,000 Hz • Power rating: 250 watts continuous; 500 watts peak • Impedance: 8 ohms • Sensitivity (1w/1m, on-axis): 96 dB • Maximum SPL (calculated): 123 dB • Dimensions: 15-1/2" x 21-1/8" x 12-7/8" (394 x 537 x 326 mm) • Weight: 31.8 lbs. (14.4 kg).
