  • Wattgate 5266 EVO Clear Standard Edison AC Power Connector

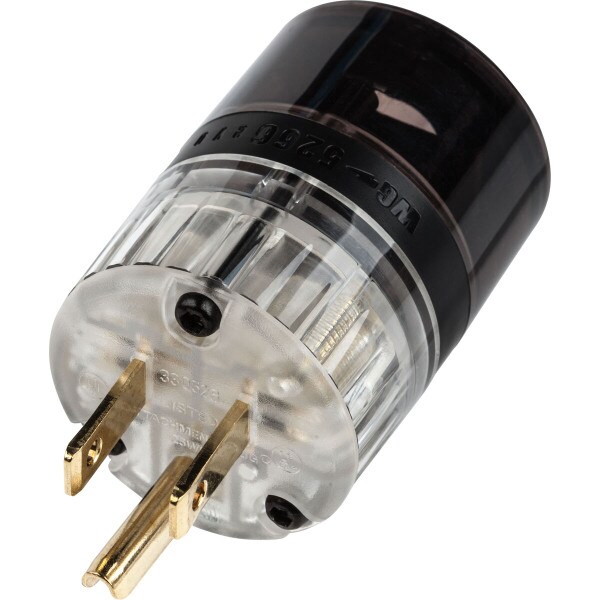

Wattgate 5266 EVO Clear Standard Edison AC Power Connector

Wattgate
Part #110-4420

Wattgate 5266 EVO Clear Standard Edison AC Power Connector

Wattgate
Part #110-4420
Model: 5266 EVO CLEAR/SMOKE
Wattgate's 5266 evo power connector is perfect as a replacement or building of your own audiophile grade power cords. Heavy-duty all polycarbonate body holds up to the heaviest cables.
Key Features
  • WattLock terminals - Heavy duty wire capture box
  • 2.5mm Hex socket hardware for easy access
  • All Polycarbonate design for durability
  • High spring rate brass contacts ensures a good connection
  • Accepts 8 to 14 awg wire for high amperage devices
  • UL and cUL compliance
  • All non-magnetic material helps eliminate interference
Your Price: $39.90
MSRP: $59.99
Save $20.09 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $39.90/ea
Quantity:Qty: 4-24 $38.12/ea
Quantity:Qty: 25+$33.59/ea
Order in the next 5 hr 39 min to ship today. Details

2In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wattgate 5266 EVO Clear Standard Edison AC Power Connector

Wattgate 5266 evo has Wattlock teeth bite down on 8 to 14 awg to wire to ensure a constant connection. The 5266 evo's high spring rate brass contacts secure a quality connection from the receptacle to the wire. All contacts are made with non-magnetic materials to avoid attracting interference.

Wattgate 5266 evo will accept up to 19 mm cables rated from 8 to 14 awg wire. This enables the plug to accept up to 15 A at 125 VAC. The all polycarbonate design supports these large gauge cables without cracking. Avoid losing performance from your high quality equipment by using Wattgate 5266 evo plugs.

Specifications: • Color: Black • Dimensions with prongs: 2.9" L x 1.5" D • Dimensions without prongs: 2.1" L x 1.5" D &bull Power capacity: 15 A @ 125 VAC • Wire gauge: 8 to 14 AWG &bull Cable input diameter: 19 mm • Hex socket required: 2.5 mm.

Product Details

BrandWattgate
Model5266 EVO CLEAR/SMOKE
Part Number110-4420
UPC601431104413
Unit of MeasureEach
Weight0.2

Product Specifications

ConfigurationNEMA 5-15 Edison
Current Rating15A
Power Connector TypeCable Mount
