  • Visaton PX10-4 4" 2-Way Poly Cone Coaxial Driver 4 Ohm

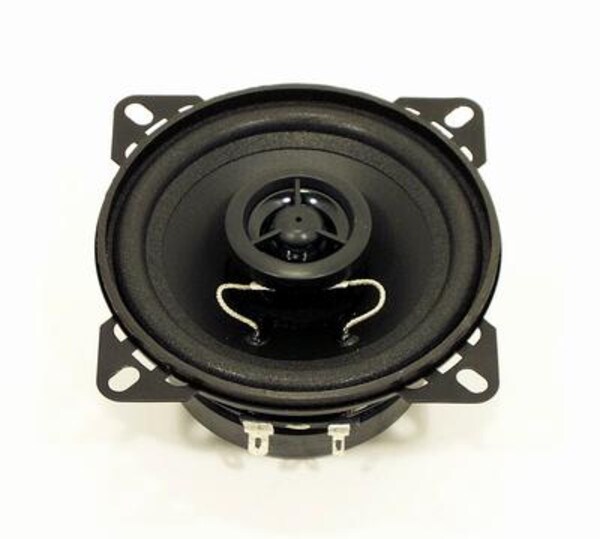

Visaton PX10-4 4" 2-Way Poly Cone Coaxial Driver 4 Ohm

1 Question, 1 Answer or
Visaton
Part #292-744

Visaton PX10-4 4" 2-Way Poly Cone Coaxial Driver 4 Ohm

Visaton
Part #292-744
Model: PX10-4
1 Question, 1 Answer or
Visaton PX10-3 is a 10 cm (4") 2-way coaxial loudspeaker with a standard basket and piezoelectric tweeter. The design includes a waterproof polypropylene cone for durability. This speaker fits cutouts meant for 10 cm speakers, making it applicable for vehicles and mobile homes.
Key Features
  • Rated power of 20W and maximum power of 30W
  • Broad frequency response ranging from 70–18000 Hz
  • Performs efficiently within a temperature range of -25 °C to +70 °C
  • Waterproof polypropylene cone ensures durability and resilience
  • Easy installation in vehicles and mobile homes with cutouts for 10 cm speakers
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $15.98
MSRP: $18.54
Save $2.56 (14%)
Bulk Pricing
Quantity:Qty: 1-9 $15.98/ea
Quantity:Qty: 10+$14.70/ea
Order in the next 10 hr 39 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton PX10-4 4" 2-Way Poly Cone Coaxial Driver 4 Ohm

The Visaton PX10-3 is a 4" 2-way coaxial loudspeaker designed with your mobility in mind. Whether you're fitting it into a car or a mobile home, its standard basket and straightforward installation make the process a breeze. This speaker features a piezoelectric tweeter, ensuring sound clarity over a wide range. The waterproof polypropylene cone enhances its durability, allowing the speaker to withstand various conditions and maintain optimal performance. With a rated power of 20W and a maximum power of 30W, the PX10-3 delivers strong audio output. Its frequency response ranges from 70–18000 Hz, ensuring it covers a wide spectrum of sounds for a more immersive audio experience. The PX10-3 operates effectively within a temperature range of -25 °C to +70 °C, demonstrating its resilience and reliability.

Product Details

BrandVisaton
ModelPX10-4
Part Number292-744
Unit of MeasureEach
Weight0.9

Product Specifications

Nominal Diameter4"
Power Handling (RMS)20 Watts
Power Handling (MAX)30 Watts
Impedance4Ω
Frequency Response70 to 18,000Hz
Sensitivity83dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz

Mounting Information

Overall Outside Diameter4.53"
Baffle Cutout Diameter3.66"
Depth1.97"
# Mounting Holes4
