Rolls PA202 40 Watt Stereo Class D Mini Amplifier with Screw Terminals

1 Question, 1 Answer or
Rolls
Part #245-1108

Rolls PA202 40 Watt Stereo Class D Mini Amplifier with Screw Terminals

Rolls
Part #245-1108
Model: PA202
1 Question, 1 Answer or

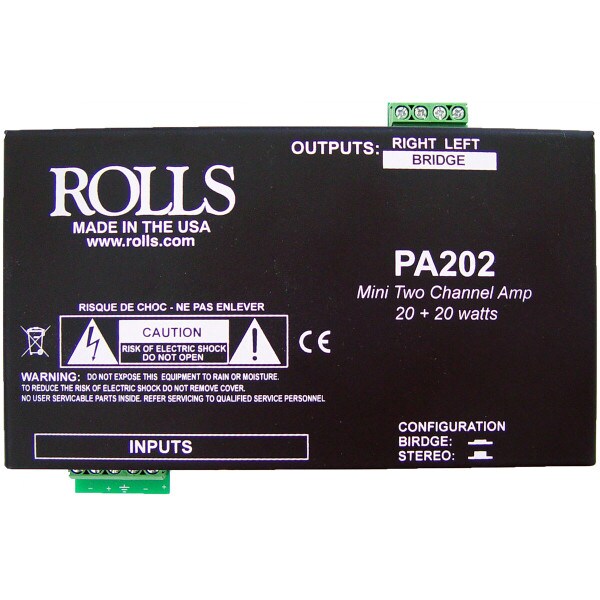

The PA202 from Rolls is a very small general purpose audio amplifier designed for projector, ceiling mount, or rack monitoring. It is perfect for many boardroom and classroom applications, also ideal for small space installations where a larger amplifier won't fit, or quick installs.
Key Features

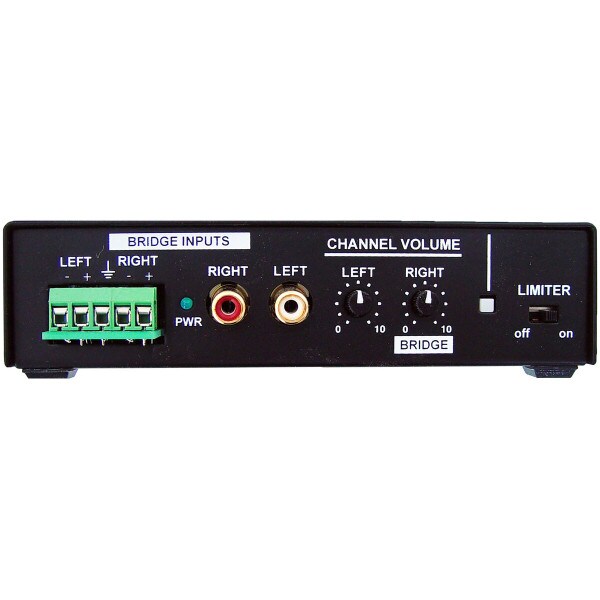

  • Balanced or unbalanced inputs
  • Phoenix-style input and output
  • Stereo RCA input
  • Small form factor and light weight
Your Price: $179.00
+ FREE SHIPPING
MSRP: $229.00
Save $50.00 (22%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Rolls PA202 40 Watt Stereo Class D Mini Amplifier with Screw Terminals

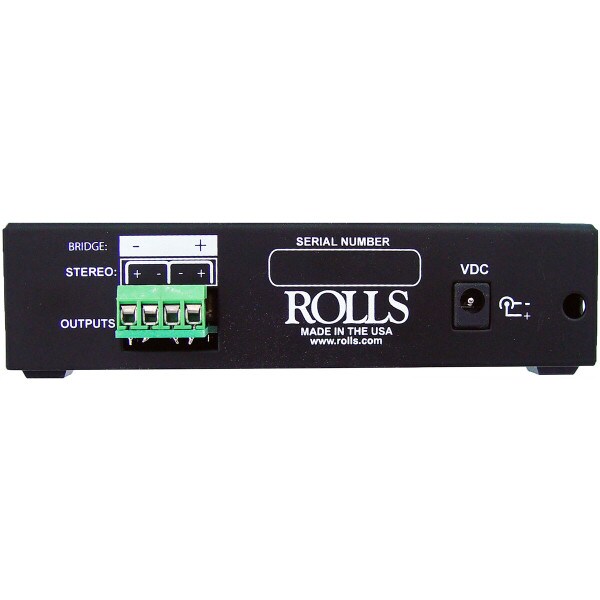

Use the PA202 alone for very basic installations, or add a Rolls line mixer to greatly increase the versatility. The PA202 will drive 4 or 8 ohm speakers, it is bridge mode capable (8 ohm minimum load) for higher power mono output, and a switchable limiter is present to protect your speakers. The 24 VDC inline IEC power supply is included. Made in the USA.

For more than two decades, those in the know have turned to Rolls for the highest quality, reliability, and value. Rolls is an innovative company specializing in domestically manufactured signal interface accessories, mixers, amplifiers, and processors for the audio professional.

Specifications: • Frequency response: 20 - 25,000 Hz • Output power: 20W x 2 (4 ohms per channel); 40W x 1 (bridged to 8 ohm load) • THD: 0.05% typical • Signal-to-noise ratio: >100 dB • Dimensions: 4.25" x 2.375" x 1.5".

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandRolls
ModelPA202
Part Number245-1108
UPC675889020205
Unit of MeasureEach
Weight2.3

Product Specifications

Power Output (RMS @ 70V)< 25W
Weight Range< 10 lbs.

Specifications
