Quam SYSTEM 19 24" x 24" Lay-In Ceiling Tile Speaker 20W-70V

Quam
Part #244-3172

Quam SYSTEM 19 24" x 24" Lay-In Ceiling Tile Speaker 20W-70V

Quam
Part #244-3172
Model: SYSTEM 19
Quam's SYSTEM 19 is a 24" x 24" lay-in ceiling speaker tile with a 6-1/2" O.D LF, 1" O.D. HF, and 20 watt-70.7V multi-tap transformer.
Key Features
  • 22" x 24" lay-in speaker tile

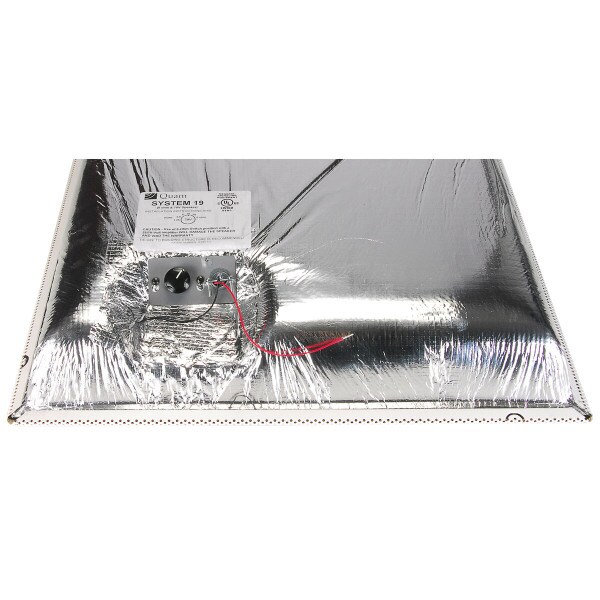

  • 20W-70.7V rotary select transformer
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $199.66
+ FREE SHIPPING
MSRP: $233.52
Save $33.86 (14%)
Bulk Pricing

Back-Ordered

Estimated back in stock 1/3/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 19 24" x 24" Lay-In Ceiling Tile Speaker 20W-70V

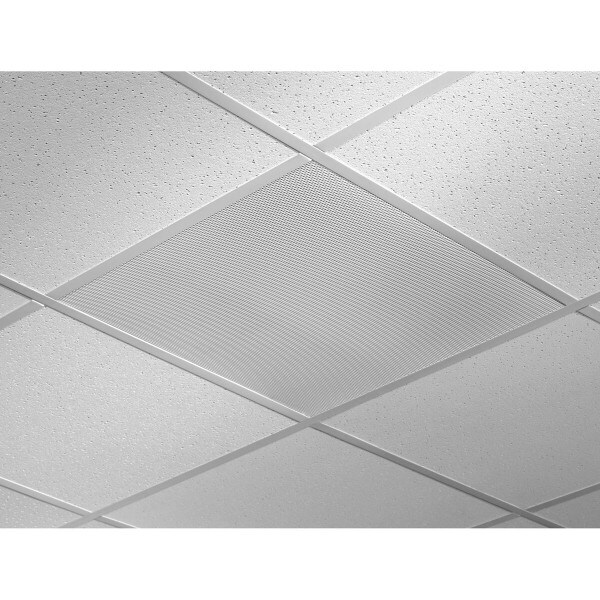

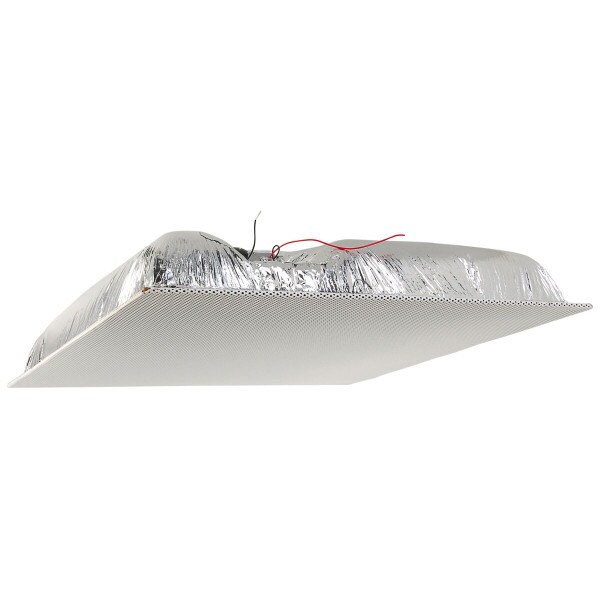

The QUAM SYSTEM 19 is a complete 2-way loudspeaker assembly with perforated steel baffle, and integral molded fiber enclosure. Finish is a white baked epoxy hybrid. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tone, voice, and music. The QUAM SYSTEM 19 is UL Listed 1480-(UEAY, UAEY7-Canada) when installed in accordance with supplied installation instructions, requirements of NEC and AHJ. Made in Chicago, USA.

Specifications: • 70.7V transformer: 20, 10, 5, 2.5, 1.25 watt • Average sensitivity: 91 dB 1W/1m • Power rating: 30 watts RMS • Max. system output: 104 dB SPL, 20W/1m • Frequency response: 60 Hz - 20 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 19
Part Number244-3172
UPC844632096877
Unit of MeasureEach
Weight10.25

Product Specifications

Input Rating70V
Mounting StyleDrop-in Tile
Woofer Diameter6.5"
Special FeaturesEnclosed Back-UL1480
