Quam SOLUTION 2 Complete 8" Ceiling Speaker Package Pair w/Volume Control 5W-25/70V

Quam
Part #244-3094

Quam SOLUTION 2 Complete 8" Ceiling Speaker Package Pair w/Volume Control 5W-25/70V

Quam
Part #244-3094
Model: SOLUTION 2

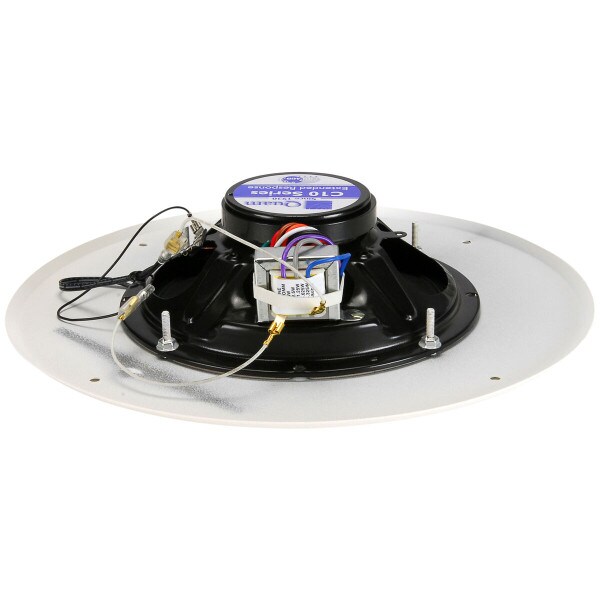

Quam's SOLUTION 2 ceiling speaker package consists of two complete loudspeaker assemblies with an 8" O.D, 5 watt-25/70.V transformer, and a volume control.
Key Features
  • 8" O.D. full range speaker
  • 5W-25/70.7V pigtail transformer
  • Volume control in center of loudspeaker baffle
  • For indoor environments
  • Program material: Paging and background music
  • Made in Chicago, USA
Your Price: $157.75
+ FREE SHIPPING
MSRP: $172.62
Save $14.87 (9%)
Bulk Pricing

Back-Ordered

Estimated back in stock 12/12/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SOLUTION 2 Complete 8" Ceiling Speaker Package Pair w/Volume Control 5W-25/70V

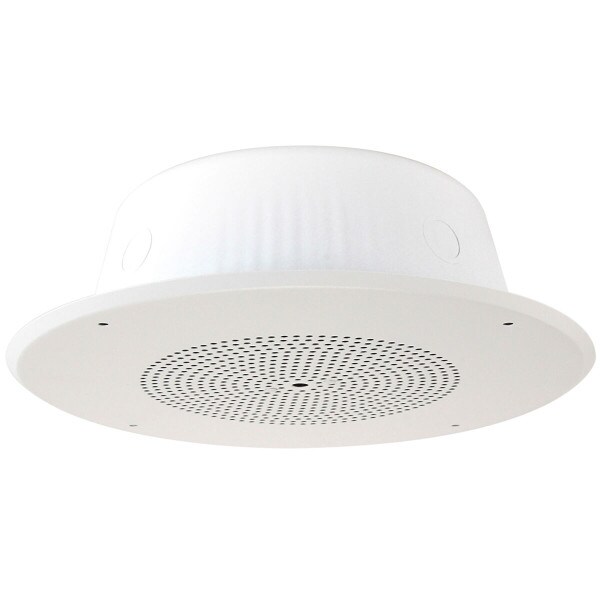

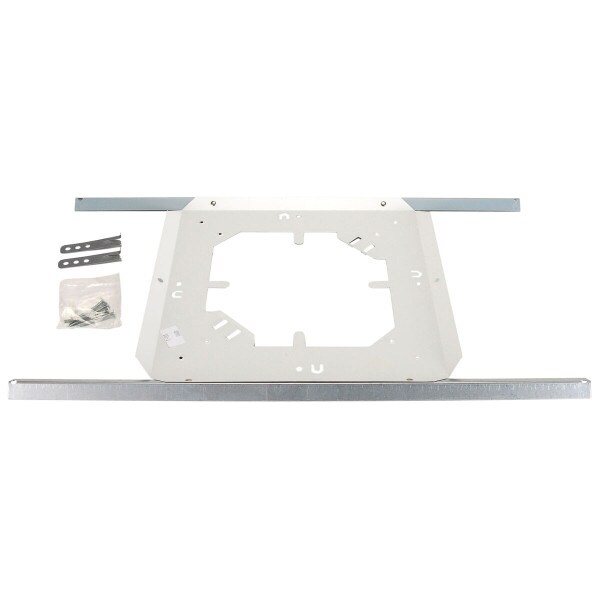

The SOLUTION 2 by Quam has full range loudspeaker, 5 watt-25/70.7V pigtail transformer, 22 gauge steel baffle, and a volume control. A 16 gauge steel enclosure and speaker support bridge is included in package. Baffle finish is a white baked epoxy hybrid. Intended use in an indoor environment, installed in a 24" wide drop-tile ceiling downward firing for paging and background music. Made in Chicago, USA.

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 95 dB 1W/1m • Power rating: 20 watts RMS • Max. system output: 120 dB SPL, 5W/1m • Magnet type: weight: BeFe ceramic, 10 oz. nominal • Frequency response: 60 Hz - 17 kHz • Nominal coverage angle: 90° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" color-coded pigtails, tinned and pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSOLUTION 2
Part Number244-3094
UPC844632096662
Unit of MeasurePairs
Weight13.7

Product Specifications

Input Rating70V|25V
Mounting StyleIn-ceiling
Woofer Diameter8"
Special FeaturesVolume Control
