  • Quam SOLUTION 1 Complete 8" Ceiling Speaker Package Pair 5W-25/70V

Quam SOLUTION 1 Complete 8" Ceiling Speaker Package Pair 5W-25/70V

2 Questions, 2 Answers or
Quam
Part #244-3092

Quam SOLUTION 1 Complete 8" Ceiling Speaker Package Pair 5W-25/70V

Quam
Part #244-3092
Model: SOLUTION 1
2 Questions, 2 Answers or

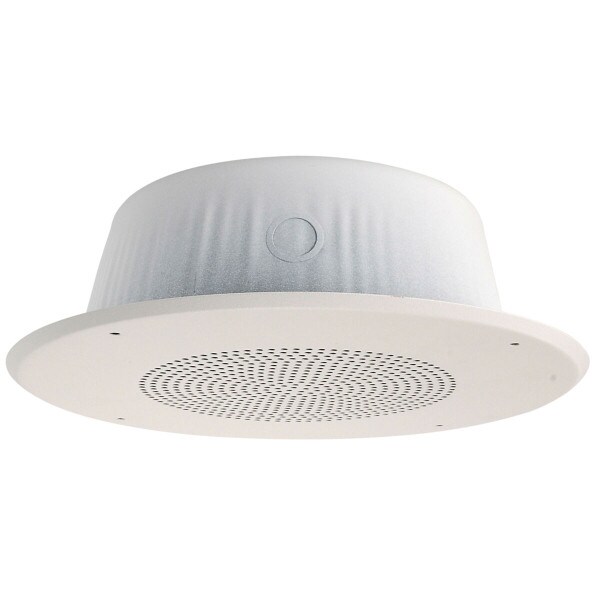

Quam's SOLUTION 1 ceiling speaker package consists of two complete loudspeaker assemblies with 8" full-range drivers and 5 watt-25/70.7V pigtail transformers.
Key Features
  • 8" O.D. full range speaker
  • 5W-25/70.7V pigtail transformer
  • For indoor environments
  • Program material: Paging and background music
  • Made in Chicago, USA
Your Price: $145.90
+ FREE SHIPPING
MSRP: $146.90
Save $1.00 (1%)
Bulk Pricing
Quantity:Qty: 1-3 $145.90/ea
Quantity:Qty: 4+$143.17/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SOLUTION 1 Complete 8" Ceiling Speaker Package Pair 5W-25/70V

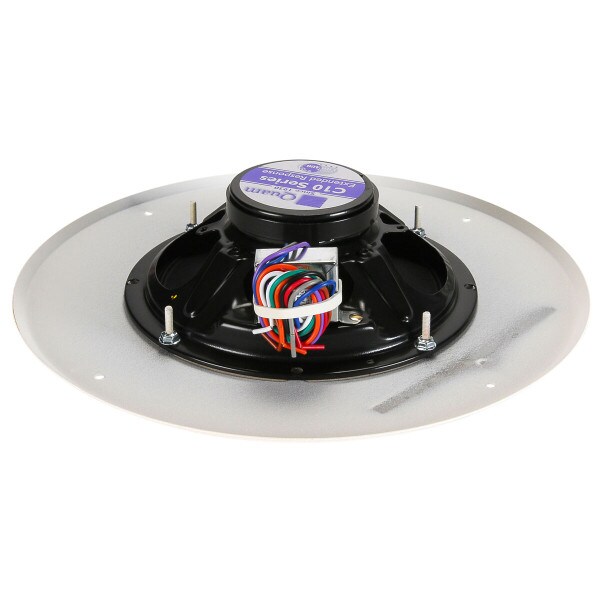

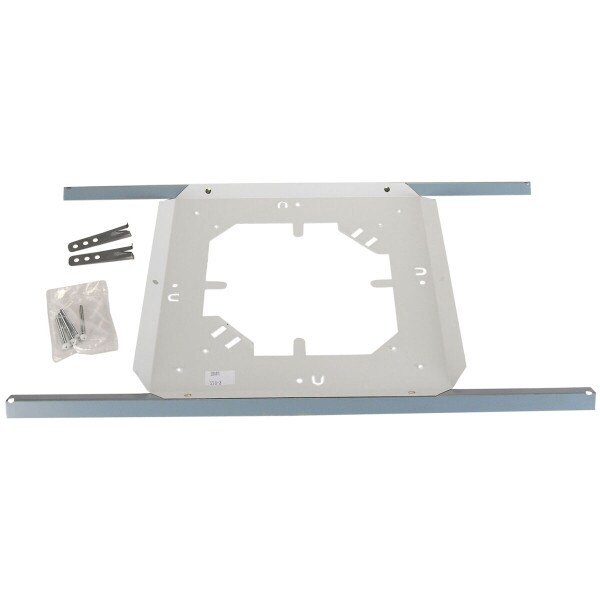

The SOLUTION 1 full range loudspeaker by Quam has a 5 watt-25/70.7V pigtail transformer, and 22 gauge steel baffle. A 16 gauge steel enclosure and speaker support bridge is included in package. Baffle finish is a white baked epoxy hybrid. Intended use in an indoor environment, installed in a 24" wide drop-tile ceiling downward firing for paging and background music. Made in Chicago, USA.

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 95 dB 1W/1m • Power rating: 20 watts RMS • Max. system output: 120 dB SPL, 5W/1m • Magnet type: weight: BeFe ceramic, 10 oz. nominal • Frequency response: 60 Hz - 17 kHz • Nominal coverage angle: 90° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" color-coded pigtails, tinned and pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSOLUTION 1
Part Number244-3092
UPC844632096655
Unit of MeasurePairs
Weight13.45

Product Specifications

Input Rating70V|25V
Mounting StyleIn-ceiling
Woofer Diameter8"

Specifications
