Quam QH16T Paging Horn with Universal Mount 16W-25/70V Beige

1 Question, 1 Answer or
Quam
Part #244-3084

Quam QH16T Paging Horn with Universal Mount 16W-25/70V Beige

Quam
Part #244-3084
Model: QH16T
1 Question, 1 Answer or
Quam's QH16T paging horn is a compression type loudspeaker with a 16 watt-25/70.7V rotary select transformer.
Key Features
  • Adjustable mount base
  • For outdoor or indoor environments
  • Program material: Voice and signal tone
  • 16W-25/70.7V rotary select transformer
Your Price: $135.90
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-7 $135.90/ea
Quantity:Qty: 8+$134.75/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam QH16T Paging Horn with Universal Mount 16W-25/70V Beige

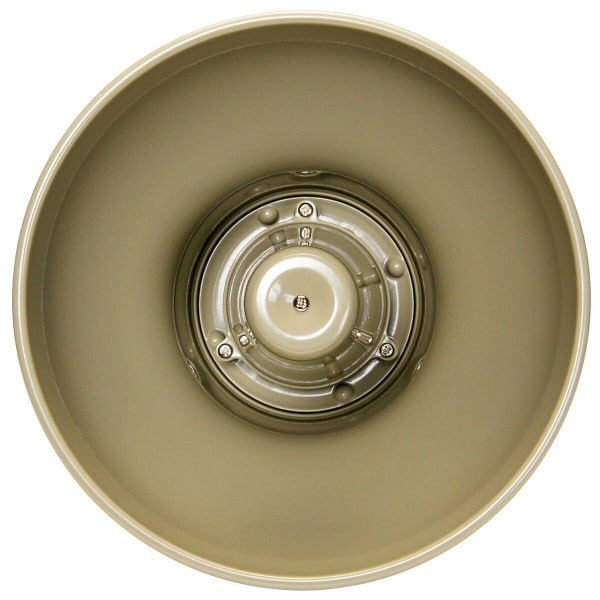

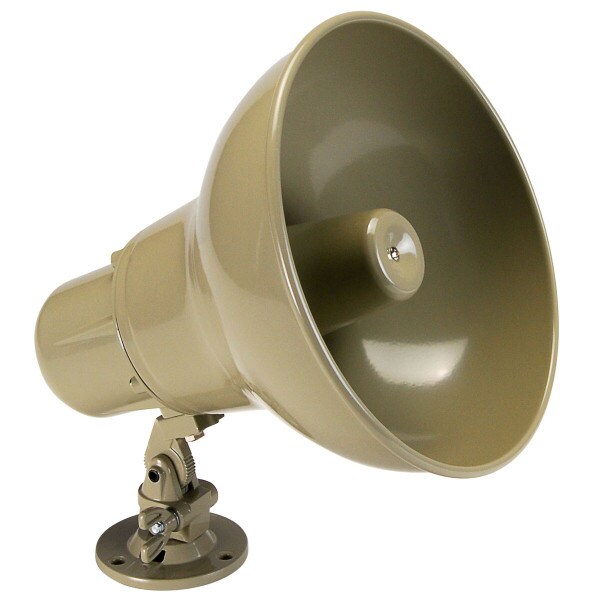

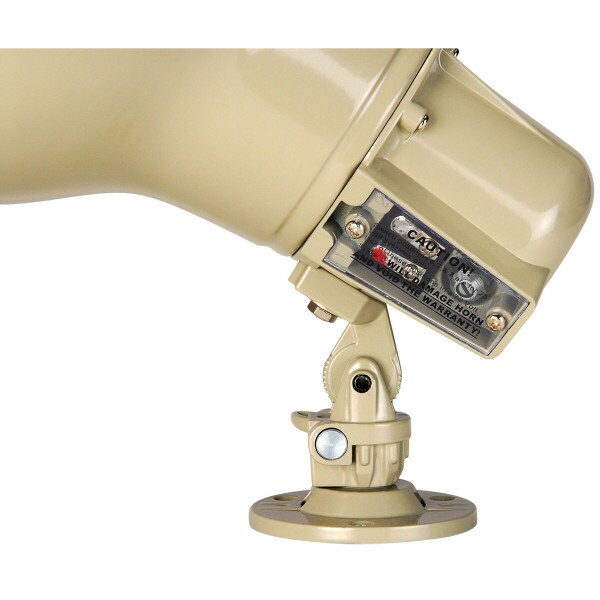

The QH16T by Quam is a double re-entrant horn with an adjustable mount base. Intended use in outdoor or indoor environments for voice and signal tone. The finish is a beige baked enamel. Mount either vertical or horizontal, adapts to pole mounting as well.

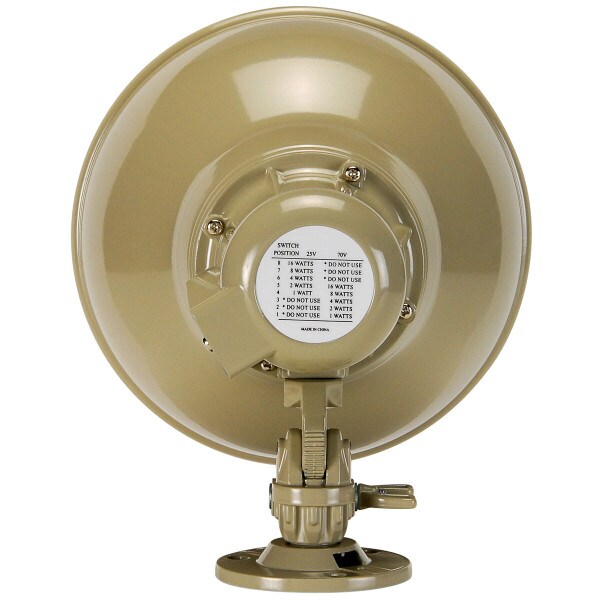

Specifications: • 25/70.7V transformer: 16, 8, 4, 2, 1 watt • Speaker type: Compression, re-entrant horn • Average sensitivity: 110 dB, 1W/1m • Power rating: 16 watt RMS • Max. system output: 121 dB SPL, 16W/1m • Frequency response: 300 Hz - 15 kHz • Nominal coverage angle: 110° included angle, -6 dB/ 2 kHz • Transformer tap selection: Rotary selector switch • Audio connection: Binding screw.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelQH16T
Part Number244-3084
UPC844632096624
Unit of MeasureEach
Weight5.1

Product Specifications

Speaker TypePA Horn Speaker

Specifications
