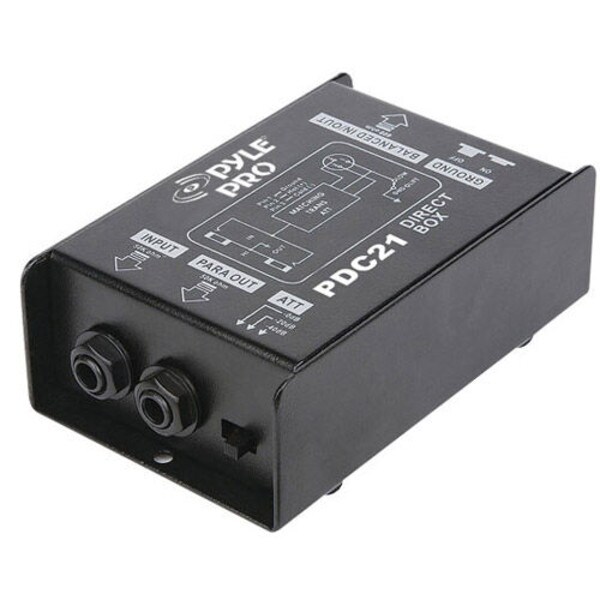

A DI box provides the facility for the direct insertion of an audio signal into a mixer or recorder. The PDC21 offers a variety of DI solutions for live sound and recording applications. You can connect all kinds of audio signals such as guitars, keyboards, outboard signal processors and even a high-powered speaker output from an amplifier. Features an all steel chassis and a switch-able ground lift. The PDC21 enables you to tap off the signal from a guitar or bass guitar and pass the signal from the PARA OUTPUT to the on stage amplifier without affecting the original sound. This can eliminate the need for mixing the guitar amplifier, which in many cases is preferable, especially with bass guitars. One year manufacturer's warranty.
Specifications: • Input attenuation: Switchable (0 dB, -20 dB, -40 dB) • Instrument input: 50K unbalanced TS jack • Parallel (Link) out: 50K unbalanced TS jack • Balanced output: 600 balanced XLR jack • Dimension: 4.72" x 3.01" x 1.77".
Product Details | |
|---|---|
| Brand | Pyle Audio |
| Model | PDC21 |
| Part Number | 248-4150 |
| UPC | 068888894784 |
| Unit of Measure | Each |
| Weight | 1 |
Product Specifications | |
|---|---|
| Active / Passive | Passive |
| Rack Mountable | No |
