  • PRV Audio 10MR2000-NDY 10" Neodymium Pro Audio Woofer

PRV Audio 10MR2000-NDY 10" Neodymium Pro Audio Woofer

PRV Audio
Part #294-2956

PRV Audio 10MR2000-NDY 10" Neodymium Pro Audio Woofer

PRV Audio
Part #294-2956
Model: 10MR2000-NDY
At 99 dB sensitivity and with 1,000 watt RMS power handling, the PRV Audio 10MR2000-NDY 10" driver is the ideal midrange for use in the highest output audio systems. Designed for natural vocal reproduction and peak SPL, this neodymium powered driver needs just over 5" of mounting depth for installation in systems where space is at a minimum.
Key Features
  • Smooth and natural response throughout the vocal range even at extreme output levels
  • 4" voice coil on fiberglass former to handle up to 2,000 watts peak
  • Powerful neodymium motor keeps size and weight to a minimum
  • 7.15 mm xmax for powerful midbass punch and impact you can feel
Your Price: $209.91
+ FREE SHIPPING
MSRP: $249.89
Save $39.98 (16%)
Bulk Pricing
Ships next business day. Details

10In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

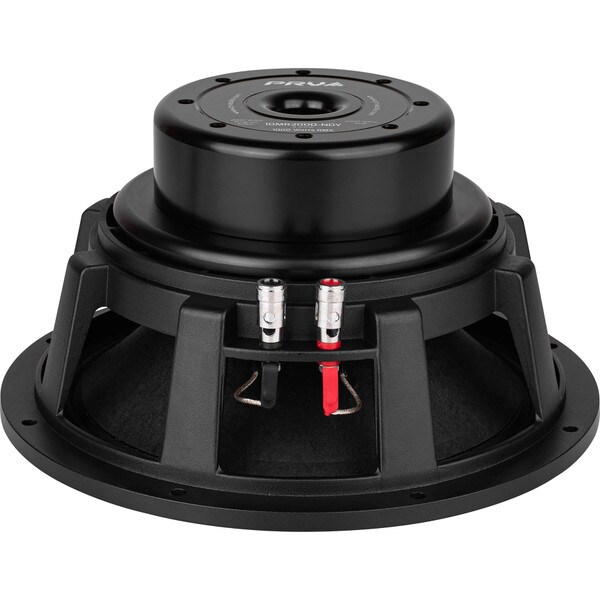

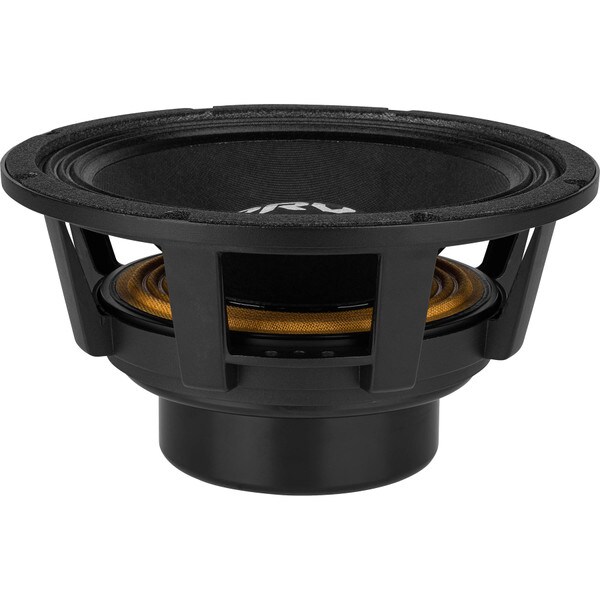

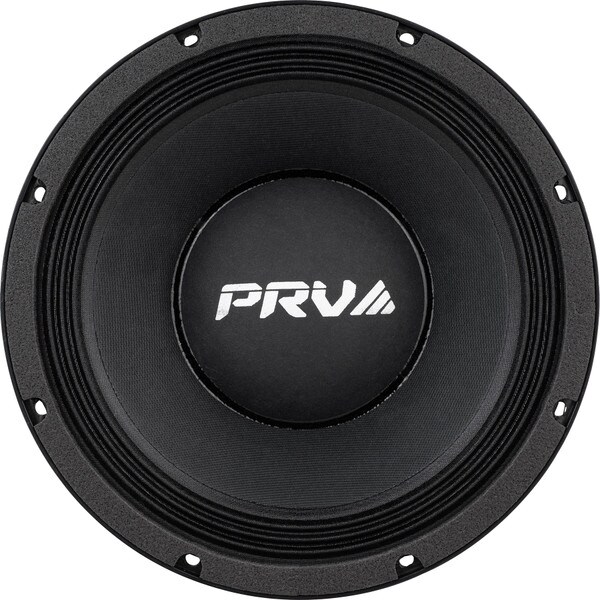

PRV Audio 10MR2000-NDY 10" Neodymium Pro Audio Woofer

The 10MR2000-NDY 10" midrange from PRV Audio combines maximum power handling and efficiency for unbelievable output capability. A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this driver in almost and system, even when you are short on space. Weather in a high output 3-way PA system or ground shaking mobile audio system, this driver is the epitome of compact, high output midranges.

The heart of the 10MR2000-NDY is its neodymium motor assembly which has been optimized to produce maximum efficiency with minimum distortion. The 4" voice coil is wound on a fiberglass former to withstand enough heat to handle 1,000 watts of continuous power (2,000 watts peak). The extensive venting through the motor and cast aluminum frame help to dissipate that heat to keep power compression low even after extended periods of high output. With excellent damping characteristics, the lightweight paper cone and accordion surround give this driver smooth response all the way from 90 to 3,500 Hz (recommended crossover of 160 @ 12dB/octave) for that incredibly clear vocal response that PRV midranges are known for. Suitable for use in the highest SPL systems, the 10MR2000-DNY is one formidable midrange driver!

Product Details

BrandPRV Audio
Model10MR2000-NDY
Part Number294-2956
UPC602938022682
Unit of MeasureEach
Weight14.65

Product Specifications

Nominal Diameter10"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response90 to 6,500Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)54.48Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)1.54
Electromagnetic Q (Qes)0.21
Total Q (Qts)0.21
Compliance Equivalent Volume (Vas)0.99ft³
Mechanical Compliance of Suspension (Cms)0.143mm/N
BL Product (BL)21.73T·m
Diaphragm Mass Inc. Airload (Mms)59.33g
Maximum Linear Excursion (Xmax)7.15mm
Surface Area of Cone (Sd)373cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.43"
Baffle Cutout Diameter9.33"
Depth5.08"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.88ft³
Vented F354.5Hz
