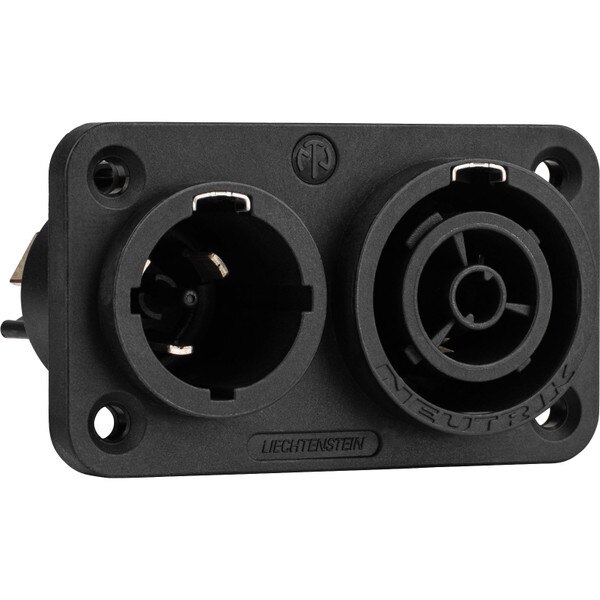

Neutrik NAC3PX-TOP powerCON TRUE1 Combination Receptacle Male/Female Power IN/OUT 20A

1 Question, 1 Answer or
Neutrik
Part #092-2912

Neutrik NAC3PX-TOP powerCON TRUE1 Combination Receptacle Male/Female Power IN/OUT 20A

Neutrik
Part #092-2912
Model: NAC3PX-TOP
1 Question, 1 Answer or
Neutrik NAC3PX-TOP TRUE1 waterproof inlet-outlet combination chassis sockets are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Key Features
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable 16A single phase connector (USA: 20A)
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-PX)
  • Easy and reliable twist lock system
  • True mains connector with breaking capacity (CBC)
  • ENEC certified according to IEC 60320 and UL498 certified
Your Price: $11.83
MSRP: $15.99
Save $4.16 (26%)
Bulk Pricing
Quantity:Qty: 1-99 $11.83/ea
Quantity:Qty: 100-249 $11.20/ea
Quantity:Qty: 250+$10.77/ea
Order in the next 4 hr 29 min to ship today. Details

272In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Neutrik NAC3PX-TOP powerCON TRUE1 Combination Receptacle Male/Female Power IN/OUT 20A

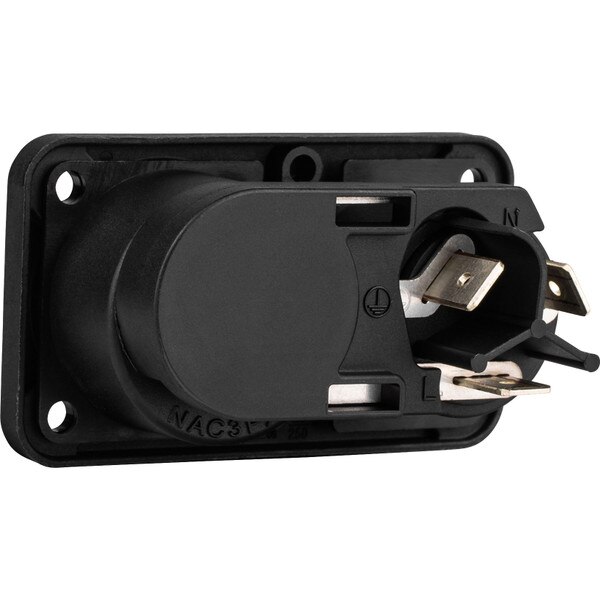

The powerCON TRUE1 TOP is a locking 16A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The NAC3PX-TOP has one body with both inlet and outlet sockets with 1/4" flat tab terminals.

Specifications: • Current rating: 16A @ 250 VAC; 20A @ 120 VAC • Cable type: SJTOW, SJOOW 3 x 12 AWG • Terminals: Three 1/4" flat tab • Dimensions: 1.394" x 2.402" x 1.574" (total depth)

Product Details

BrandNeutrik
ModelNAC3PX-TOP
Part Number092-2912
UPC848864060316
Unit of MeasureEach
Weight0.5

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeChassis / Panel Mount-Outdoor
