  • Morel CAT 308 1-1/8" Soft Dome Tweeter

Morel CAT 308 1-1/8" Soft Dome Tweeter

Morel
Part #277-082

Morel CAT 308 1-1/8" Soft Dome Tweeter

Morel
Part #277-082
Model: CAT 308
A new version of Morel's classic MDT-30, the CAT308 is a very fast tweeter capable of high dynamic range without SPL compression.
Key Features
  • 104 mm aluminum faceplate
  • Large Hexatech™aluminum voice coil
  • Replaceable Acuflex™dome/coil assembly
  • Ferrofluid cooled
  • High power handling
  • Sturdy gold plated input tags
Your Price: $100.00
+ FREE SHIPPING
MSRP: $144.99
Save $44.99 (31%)
Bulk Pricing
Order in the next 0 hr 10 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel CAT 308 1-1/8" Soft Dome Tweeter

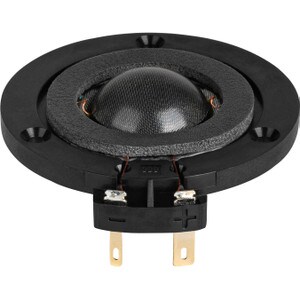

A new version of Morel's classic MDT-30, the CAT308 is a very fast tweeter capable of high dynamic range without SPL compression. It features a single magnet system vented into a damped rear chamber that lowers resonance. The ferrofluid cooled aluminum voice coil contributes to the CAT308's low distortion and exceptionally smooth response. 1-1/8" treated soft dome. Replacement diaphragm (277-016).

Product Details

BrandMorel
ModelCAT 308
Part Number277-082
UPC844632070754
Unit of MeasureEach
Weight1.4

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.83
Tweeter TypeSoft Dome
Power Handling (RMS)200 Watts
Impedance8Ω
Frequency Response1,600 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)700Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.09mH

Mounting Information

Overall Outside Diameter4.09"
Depth1.69"
