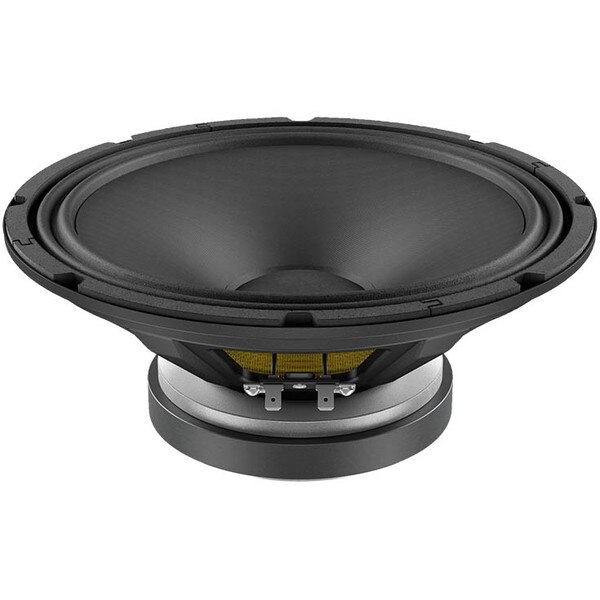

Lavoce WSF102.00 10" Woofer utilizes an impressive list of materials that make it a great choice for high powered, high output applications.
Lavoce WSF102.00 10" Woofer utilizes an impressive list of materials that make it a great choice for high powered, high output applications. A water resistant treated cone and rubber surround mean this will last years in the harshest environments. An impressive 350 watt program power handling and over 96 dB sensitivity combine for surprising output capability. A resonance-free steel frame holds the FEA optimized motor structure in place.
Product Details | |
|---|---|
| Brand | Lavoce |
| Model | WSF102.00 |
| Part Number | 293-808 |
| UPC | 848864072753 |
| Unit of Measure | Each |
| Weight | 8.85 |
Product Specifications | |
|---|---|
| Nominal Diameter | 10" |
| Power Handling (RMS) | 175 Watts |
| Power Handling (MAX) | 350 Watts |
| Impedance | 8Ω |
| Frequency Response | 60 to 4,000Hz |
| Sensitivity | 96.5dB 2.83V/1m |
| Voice Coil Diameter | 2" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 65Hz |
| DC Resistance (Re) | 5.2Ω |
| Voice Coil Inductance (Le) | 0.5mH |
| Mechanical Q (Qms) | 5.73 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.45 |
| Compliance Equivalent Volume (Vas) | 1.22ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.196mm/N |
| BL Product (BL) | 11.62T·m |
| Maximum Linear Excursion (Xmax) | 5.3mm |
| Surface Area of Cone (Sd) | 353cm² |
Materials of Construction | |
|---|---|
| Cone Material | Treated Paper |
| Surround Material | Cloth |
| Voice Coil Wire Material | CCA |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 10.14" |
| Baffle Cutout Diameter | 9.15" |
| Depth | 4.29" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.7ft³ |
| Sealed F3 | 115.3Hz |
| Vented Volume | 1.625ft³ |
| Vented F3 | 57.1Hz |
