  • FaitalPRO 6FE400 6" Professional Woofer 8 Ohm

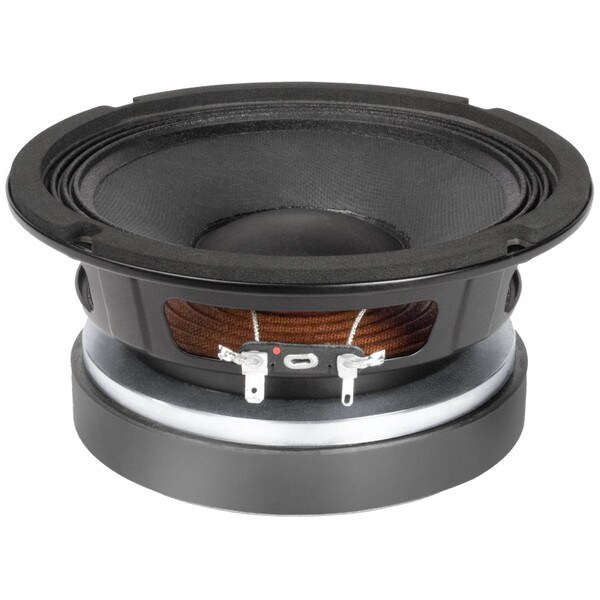

FaitalPRO 6FE400 6" Professional Woofer 8 Ohm

Read 1 Review or
FaitalPRO
Part #294-1352

FaitalPRO 6FE400 6" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1352
Model: 6FE400
Read 1 Review or

With a linear frequency response from 100 to 8,000 Hz and a high sensitivity of 94 dB, FaitalPRO's 6FE400 6" midrange speaker stands out as a great value for professional, high output home audio, and car audio applications.

Key Features
  • High power ferrite ring motor for low Qts and high sensitivity
  • 200 watt RMS, 400 watt program power handling
  • Cloth accordion surround
  • Made in Italy
Your Price: $75.00
Bulk Pricing

Back-Ordered

Estimated back in stock 1/24/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 6FE400 6" Professional Woofer 8 Ohm

The bigger brother of the 6FE400, FaitalPRO's open back 6FE400 6" professional midrange speaker is purpose-built to cover the critical midrange in three-way speakers, but also works great as a door speaker in car audio applications. With 400 watts of peak power handling, the 6FE400 is built for the highest power applications. To ensure absolute signal fidelity, FaitalPRO built the 6FE400 with a strong ferrite ring-powered motor. Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.36. Made in Italy.

Product Details

BrandFaitalPRO
Model6FE400
Part Number294-1352
UPC848864074771
Unit of MeasureEach
Weight6.35

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.1
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response100 to 7000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.73"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)5Ω
Voice Coil Inductance (Le)0.42mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.18ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)10.5T·m
Diaphragm Mass Inc. Airload (Mms)14g
Maximum Linear Excursion (Xmax)4.77mm
Surface Area of Cone (Sd)141cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.56"
Baffle Cutout Diameter5.75"
Depth3.31"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.363ft³
Sealed F3235.7Hz
Vented Volume0.0974ft³
Vented F3131.8Hz
