  • FaitalPRO 10FE400 10" Professional Woofer 8 Ohm

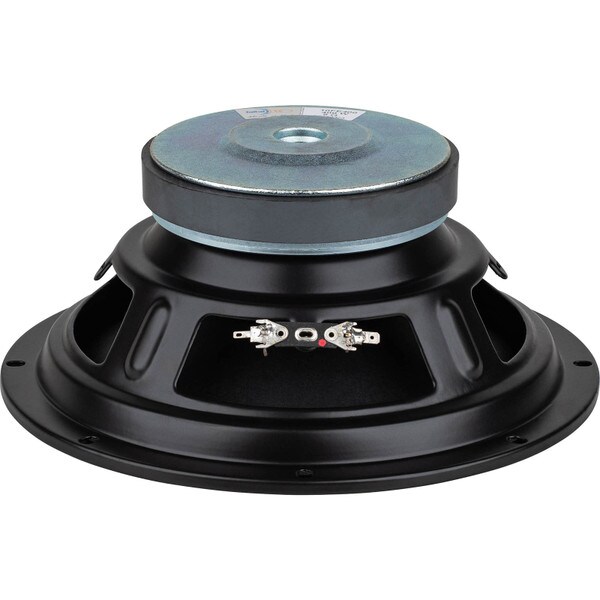

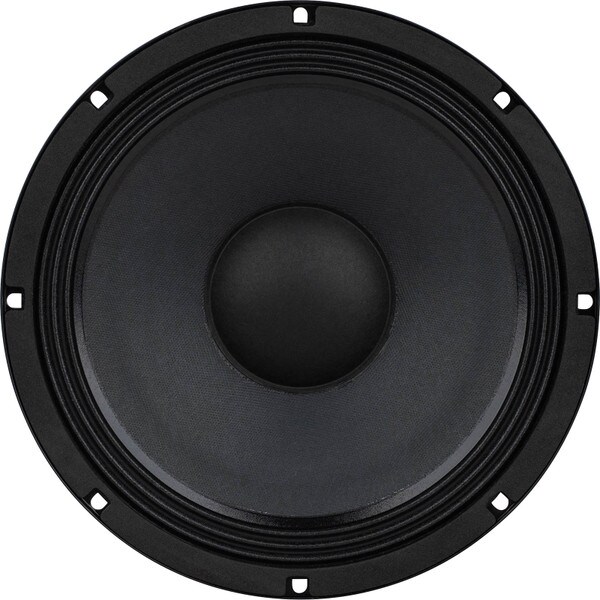

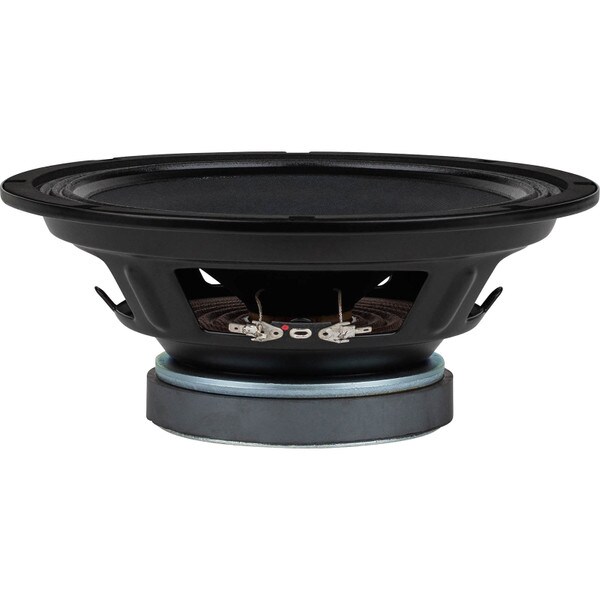

FaitalPRO 10FE400 10" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1342

FaitalPRO 10FE400 10" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1342
Model: 10FE400

FaitalPRO's 10F400 10" professional midbass uses a 1.75" voice coil and powerful ferrite magnet to handle up to 200 watts RMS while producing incredible output levels. Featuring a waterproof treated paper cone, rugged steel frame, vented motor, and flat response, this flexible driver is will excel as a high output midbass or midrange. Whether you are designing a professional sound reinforcement speaker, powered guitar amplifier, or a high SPL mobile sound system, the flexible 10FE400 offers excellent performance without a hefty price.

Key Features
  • Extremely flat response from 60 to 4,000 Hz for natural sound and easy integration to a high frequency driver
  • Glass fiber voice coil former and vented motor assembly for efficient heat dissipation and minimal power compression
  • Waterproof treated paper cone delivers natural sound even while withstanding exposure to the elements
  • 5.42 mm Xmax for high displacement and powerful midbass impact
  • Flexible design for use in a variety of systems and enclosure types
Your Price: $98.00
Bulk Pricing
Ships next business day. Details

3In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

FaitalPRO 10FE400 10" Professional Woofer 8 Ohm

FaitalPRO’s FE400 series has been designed and built as a direct response to the overwhelming demand for an evolved and more powerful series of products which would enhance the universally successful FE200 series. Building on this original idea FaitalPRO brought a brand-new family of products to life. All of the FE400 drivers are equipped with a powerful ferrite magnet assembly and a stamped steel basket in keeping with the key characteristics of the popular FE series.

Capable of high output with smooth response up to 4,000 Hz, the flexible 10FE400 10” professional midbass is ideal for any application that requires high output capability. The waterproof treated paper cone has excellent damping properties to keep unwanted resonances under control and deliver natural and realistic response. With a 1.75” diameter voice coil on a heat resistant fiberglass former the 10FE400 can handle up to 200 watts RMS (400 watts maximum) for extended periods with minimal power compression. The powerful vented ferrite magnet system has been FEM optimized to deliver maximum efficiency while keeping coil temperature under control even at maximum power. Finally, a newly designed stamped steel basket creates a solid and lightweight foundation that can withstand the most stressful conditions. Thanks to its controlled response and high output capability, the 10FE400 can be used in a variety of installations, such as professional sound reinforcement systems, musical instrument applications, or even high SPL car audio and motorsports systems.

Product Details

BrandFaitalPRO
Model10FE400
Part Number294-1342
UPC848864074726
Unit of MeasureEach
Weight7.6

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.69
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance
Frequency Response60 to 4500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.73"

Thiele-Small Parameters

Resonant Frequency (Fs)60Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.68mH
Mechanical Q (Qms)5.2
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)1.25ft³
Mechanical Compliance of Suspension (Cms)0.19mm/N
BL Product (BL)11.5T·m
Diaphragm Mass Inc. Airload (Mms)36.5g
Maximum Linear Excursion (Xmax)5.42mm
Surface Area of Cone (Sd)362cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.24"
Baffle Cutout Diameter9.17"
Depth4.37"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume108.1ft³
Sealed F30.512Hz
Vented Volume52.32ft³
Vented F31.677Hz
