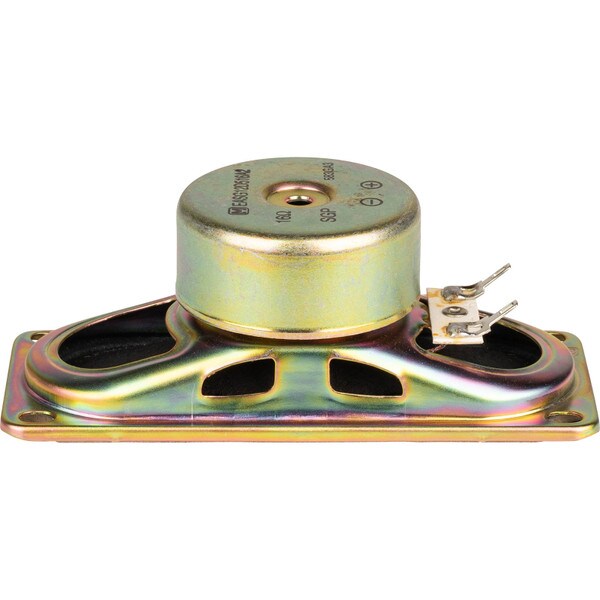

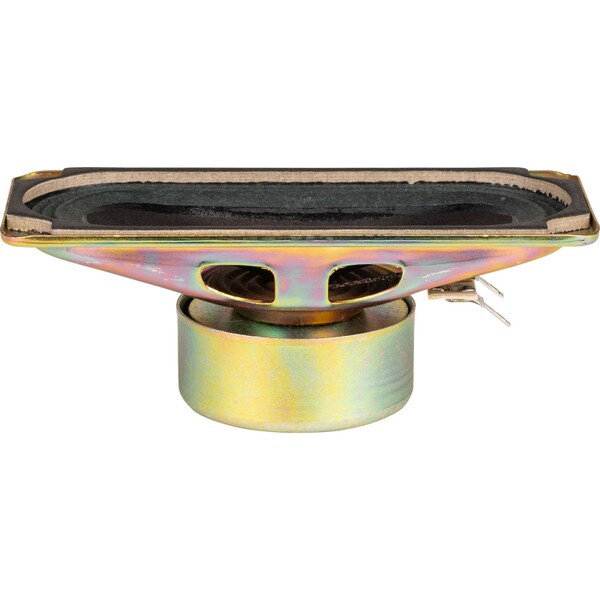

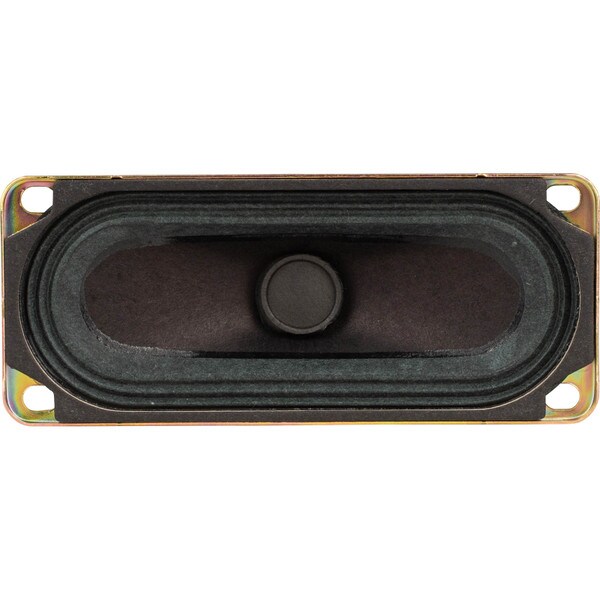

The EASG12D516A2 4-3/4" X 2" Full Range Speaker utilizes a paper cone, accordion surround and shielded magnet for use in compact spaces or near sensitive electronics.
The EASG12D516A2 4-3/4" X 2" Full Range Speaker utilizes a paper cone, accordion surround and shielded magnet for use in compact spaces or near sensitive electronics.
Product Details | |
|---|---|
| Brand | Factory Buyouts |
| Model | EASG12D516A2 |
| Part Number | 299-4272 |
| UPC | 848864073811 |
| Unit of Measure | Each |
| Weight | 0.4 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 5 Watts |
| Power Handling (MAX) | 10 Watts |
| Impedance | 16Ω |
| Frequency Response | 200 to 10,000Hz |
| Sensitivity | 85.62dB 2.83V/1m |
| Voice Coil Diameter | 0.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 203.7Hz |
| DC Resistance (Re) | 15.51Ω |
| Mechanical Q (Qms) | 7.051 |
| Electromagnetic Q (Qes) | 4.196 |
| Total Q (Qts) | 2.631 |
| Compliance Equivalent Volume (Vas) | 0.0413ft³ |
| Diaphragm Mass Inc. Airload (Mms) | 1.164g |
| Maximum Linear Excursion (Xmax) | 0.5mm |
| Surface Area of Cone (Sd) | 39.87cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Paper |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Paper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Depth | 1.75" |
| # Mounting Holes | 4 |
