  • 3" Long Throw EAS8P338A6 Full-Range Speaker

BUYOUT 3" Long Throw EAS8P338A6 Full-Range Speaker

Factory Buyouts
Part #299-4140

BUYOUT 3" Long Throw EAS8P338A6 Full-Range Speaker

Factory Buyouts
Part #299-4140
Model: EAS14PL327A6
The 3" Long Throw EAS8P338A6 Full-Range Speaker is a great choice if you are looking for a lot of output in a small package.
Key Features
  • Long-throw design for extended bass response
  • Oversize cloth surround for longevity
  • Square frame for close center-to-center mounting
BUYOUT $3.98
MSRP: $9.99
Save $6.01 (60%)
Bulk Pricing
Quantity:Qty: 1-19 $3.98/ea
Quantity:Qty: 20-39 $3.48/ea
Quantity:Qty: 40+$2.98/ea
Order in the next 9 hr 30 min to ship today. Details

1271In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

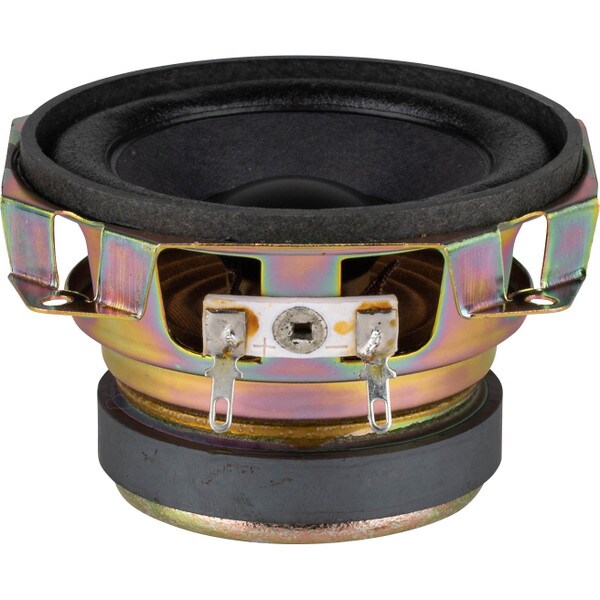

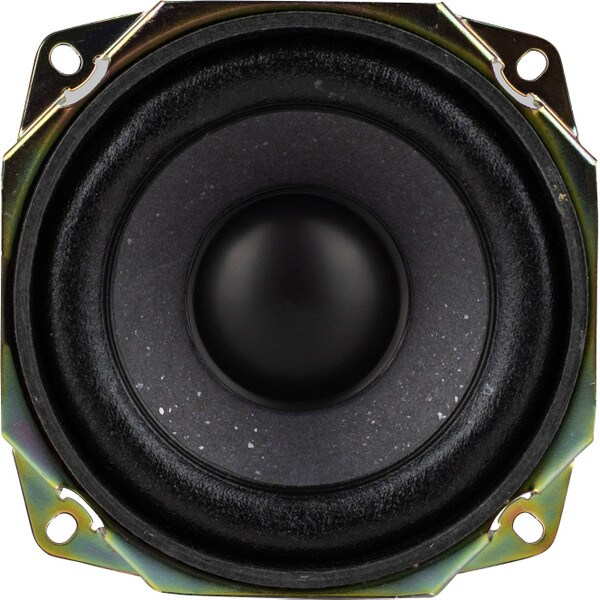

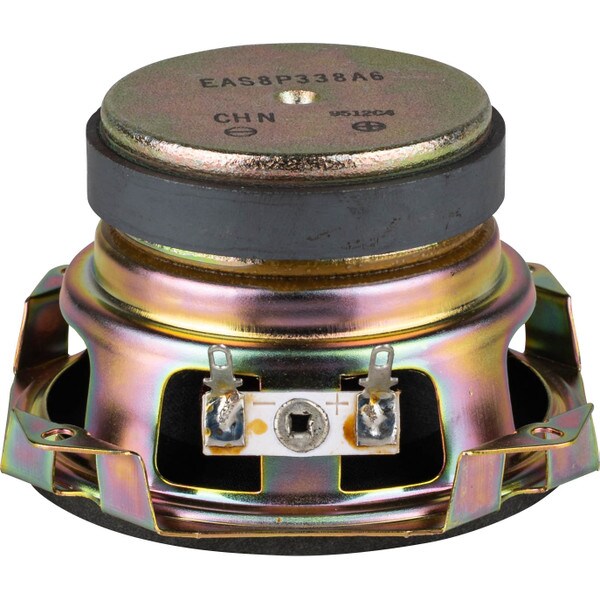

3" Long Throw EAS8P338A6 Full-Range Speaker

With a low profile square frame and long-throw suspension, the EAS8P338A6 full-range 3" speaker is a solid choice for close center-to-center mounting and a lot of output from a small package.

The paper cone and oversized half-roll cloth surround provide a smooth natural response with clean extended excursion capability, all while providing long lasting performance and reliability.

Product Details

BrandFactory Buyouts
ModelEAS14PL327A6
Part Number299-4140
UPC848864072180
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.375
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response100-8,000Hz
Sensitivity84.89dB 2.83V/1m
Voice Coil Diameter5"

Thiele-Small Parameters

Resonant Frequency (Fs)105.4Hz
DC Resistance (Re)5.379Ω
Voice Coil Inductance (Le)0.1911mH
Mechanical Q (Qms)4.318
Electromagnetic Q (Qes)0.9199
Total Q (Qts)0.7583
Compliance Equivalent Volume (Vas)0.055ft³
Diaphragm Mass Inc. Airload (Mms)1.747g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)29.22cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3"
Baffle Cutout Diameter3"
Depth2"
# Mounting Holes4
