  • DynaLab V22-DR-0004 1" Mylar Dome Tweeter

BUYOUT DynaLab V22-DR-0004 1" Mylar Dome Tweeter

Factory Buyouts
Part #299-4006

BUYOUT DynaLab V22-DR-0004 1" Mylar Dome Tweeter

Factory Buyouts
Part #299-4006
Model: V-22DR-0004
The DynaLab V22-DR-0004 1" mylar dome tweeter is a very inexpensive solution for replacing the mylar tweeters found in speakers all around the world.
Key Features
  • Rugged 1" mylar diaphragm
  • Easily replaces mylar tweeters in several speakers
  • Durable faceplate
  • Perfect for inexpensive DIY speakers
BUYOUT $3.88
Bulk Pricing
Quantity:Qty: 1-3 $3.88/ea
Quantity:Qty: 4-19 $3.25/ea
Quantity:Qty: 20-99 $2.98/ea
Quantity:Qty: 100+$2.25/ea
Order in the next 0 hr 1 min to ship today. Details

1333In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

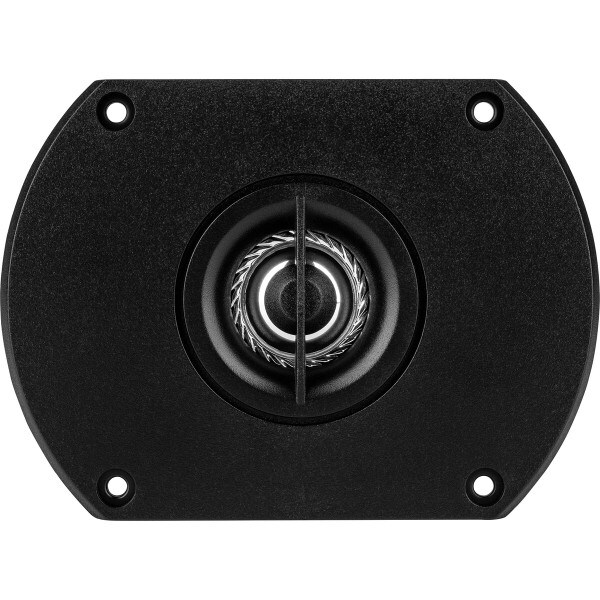

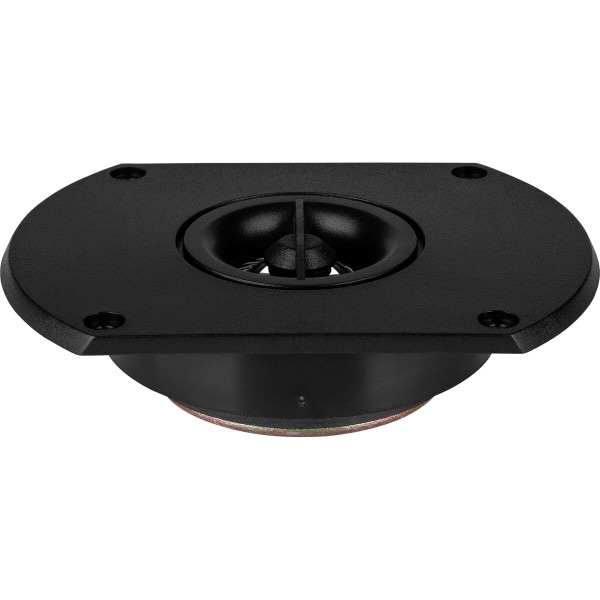

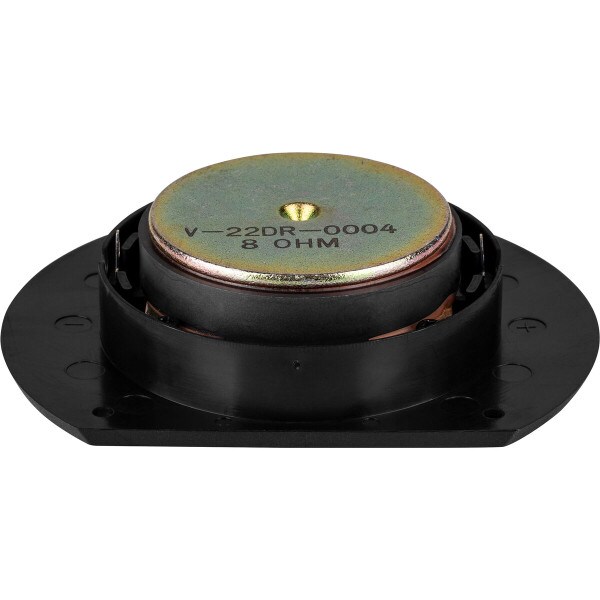

DynaLab V22-DR-0004 1" Mylar Dome Tweeter

This 1" mylar dome tweeter is perfect for inexpensive DIY speaker designs, or replacing worn out or blown tweeters in speakers already utilizing a mylar tweeter.

Product Details

BrandFactory Buyouts
ModelV-22DR-0004
Part Number299-4006
UPC848864058481
Unit of MeasureEach
Weight0.7

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter3
Tweeter TypePoly / Mylar Dome
Power Handling (RMS)10 Watts
Impedance8Ω
Frequency Response2,800 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1421Hz
DC Resistance (Re)6.883Ω
Voice Coil Inductance (Le)0.067mH

Mounting Information

Overall Outside Diameter3.25" x 4.5"
Depth1"
