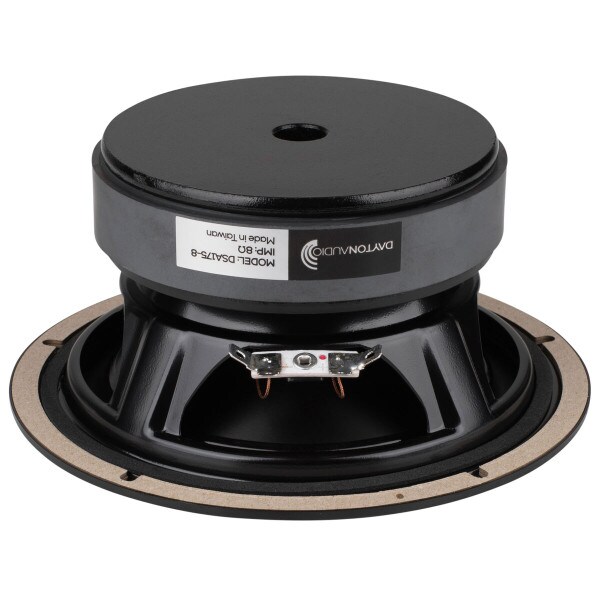

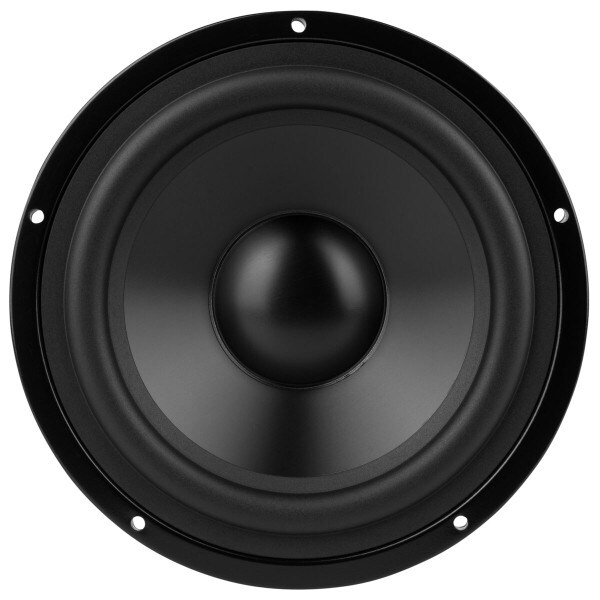

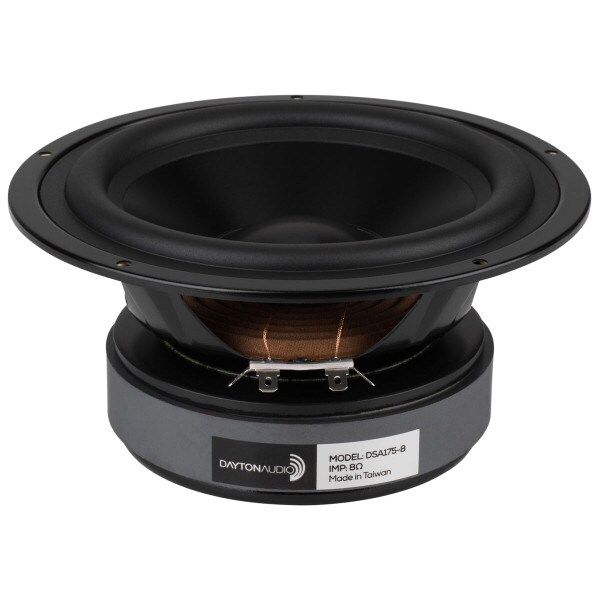

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-528

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

Dayton Audio
Part #295-528
Model: DSA175-8
Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring
  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Smooth frequency response and linear roll-off simplify filter design
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
Your Price: $49.98
+ FREE SHIPPING
MSRP: $64.99
Save $15.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $49.98/ea
Quantity:Qty: 4+$44.75/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

Dayton Audio DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies — without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Read Vance Dickason's full review of the DSA175-8 from the December 2016 issue of Voice Coil Magazine ( www.audioXpress.com):Test Bench: Dayton Audio DSA175 Designer Series 6.5” Woofer

Product Details

BrandDayton Audio
ModelDSA175-8
Part Number295-528
UPC848791002410
Unit of MeasureEach
Weight5.15

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.53
Power Handling (RMS)70 Watts
Power Handling (MAX)140 Watts
Impedance
Frequency Response38 to 7,500Hz
Sensitivity88.1dB 2.83V/1m
Voice Coil Diameter1.4"

Thiele-Small Parameters

Resonant Frequency (Fs)38.36Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)0.85mH
Mechanical Q (Qms)1.66
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.66ft³
Mechanical Compliance of Suspension (Cms)0.71mm/N
BL Product (BL)9.75T·m
Diaphragm Mass Inc. Airload (Mms)24.2g
Maximum Linear Excursion (Xmax)5.3mm
Surface Area of Cone (Sd)128.7cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.91"
Baffle Cutout Diameter5.67"
Depth3.17"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.16ft³
Sealed F3107Hz
Vented Volume0.2ft³
Vented F367Hz
