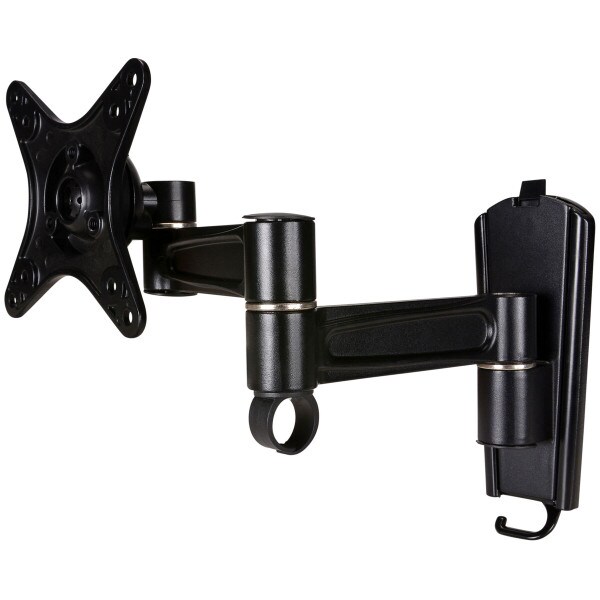

Shadow Mounts AM3713 Articulating TV Monitor Wall Mount 13"-37"For installation of medium-sized TV displays, the Shadow Mounts AM3713 is ideal. The AM3713 accommodates loads of up to 44 lbs., thanks to its aluminum construction. Features include the ability to tilt a total of 30 degrees (-15° ~ +15°), rotate to almost any viewing position, and fold almost flat against the wall. The AM3713's dual arms extend outward 13" from the wall.
The Shadow Mounts AM3713 is compatible with 13" ~ 37" televisions or monitors with up to VESA 200 mm x 200 mm bolt pattern. Note: Consult your TV or monitor owner's manual for VESA sizing information.
Specifications: • Pan adjustment: ±90° • Swivel adjustment: ±90° • Tilt adjustment: ±15° • Rotate adjustment: ±180° • Maximum extension from the wall: 2.8"-13" • Supported VESA sizes: 75 x 75, 100 x 100, and 200 x 200 • Maximum weight capacity: 44 lbs.
Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
