DS18 PRO-SM6.2 6-1/2" Professional Water Resistant Slim Midrange Speaker 2 Ohm

DS18
Part #294-8048

DS18 PRO-SM6.2 6-1/2" Professional Water Resistant Slim Midrange Speaker 2 Ohm

DS18
Part #294-8048
Model: PRO-SM6.2

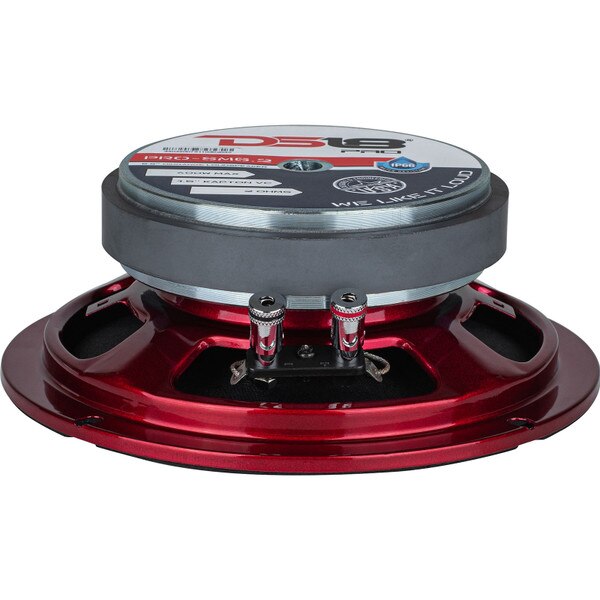

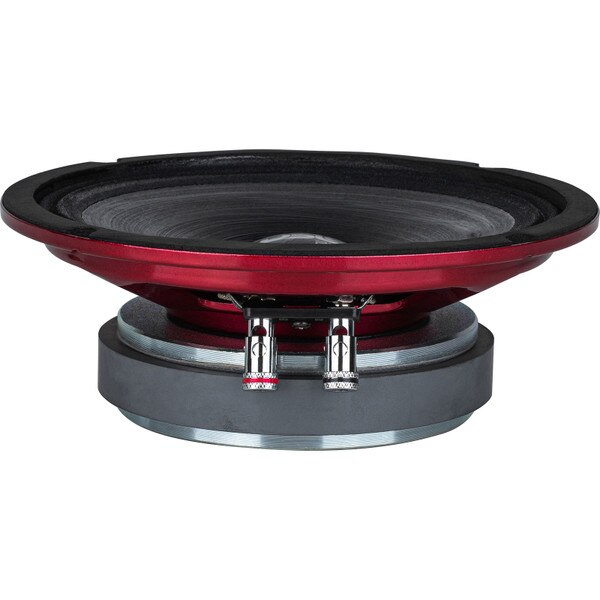

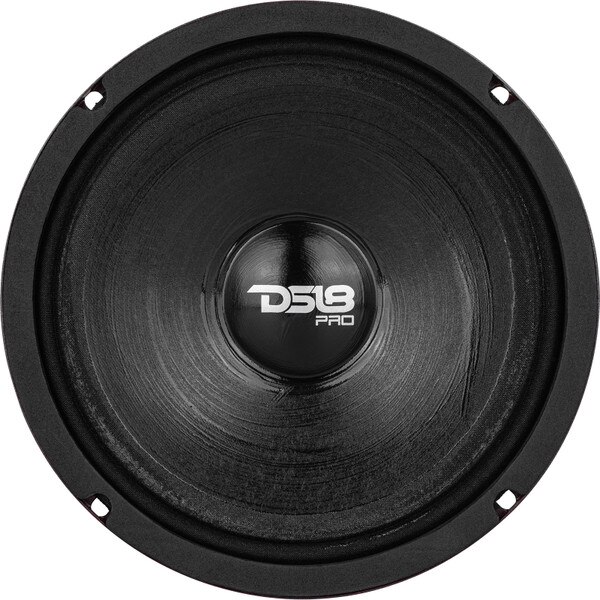

DS18's PRO-SM6.2 6-1/2" professional water resistant slim midrange driver is ideal for adding natural vocal response to motorcycle and ATV sound systems. With high efficiency, 200 watt power handling, and 2 ohm impedance this speaker is built to produce maximum output from compact systems. Requiring less than 2-1/4" of mounting depth, the PRO-SM6.2 can easily fit into locations with minimal space.
Key Features
  • 95dB efficiency for high output capability even with moderately powered systems
  • Smooth response up to 14,000 Hz for natural vocal reproduction
  • Handles up to 200 watts RMS (with 180 Hz high pass crossover) to deliver extreme overall SPL
  • Water-resistant treatment makes this driver perfect for use in damp locations
  • Less than 2-1/4" mounting depth for installation in to locations with minimal space
Your Price: $53.95
+ FREE SHIPPING
Bulk Pricing
Order in the next 1 hr 29 min to ship today. Details

20In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

DS18 PRO-SM6.2 6-1/2" Professional Water Resistant Slim Midrange Speaker 2 Ohm

Motorcycle and ATV audio enthusiasts demand the highest quality for their high-end speakers because of the open-air environment that they love to be in. With hard riding comes with rigorous vibration and that can damage your speakers. DS18 wants motorsport lovers to feel confident in their speaker choice and not have to worry about moisture damage or vibration damage. To battle these problems, they have developed an amazing new set of speakers that are water resistant so if you get caught in the rain, you don’t have to worry about damage. They have also reinforced other vital parts to hold up to vibration better so you can ride hard and long in any kind of weather. The 6-1/2" Pro-SM6.2 helps you get the best sound possible. These 2 ohm drivers are more efficient and handle power more effectively because of the traditional ferrite motor.

Product Details

BrandDS18
ModelPRO-SM6.2
Part Number294-8048
UPC810005181853
Unit of MeasureEach
Weight3.65

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.22
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance2Ω
Frequency Response80 to 14,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)200Hz
DC Resistance (Re)2Ω
Mechanical Q (Qms)5.726
Electromagnetic Q (Qes)0.871
Total Q (Qts)0.756
Compliance Equivalent Volume (Vas)0.0642ft³
Maximum Linear Excursion (Xmax)0.8mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.67"
Depth2.43"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F3212.3Hz
