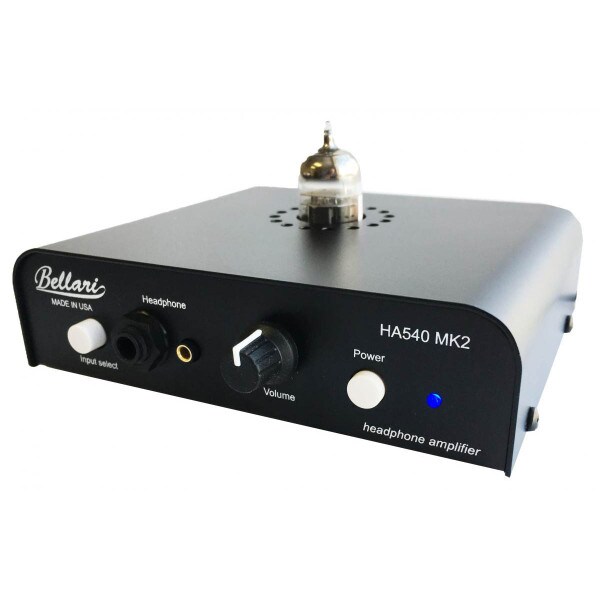

Bellari HA540 MK2 Tube Headphone Amp

Bellari
Part #245-1250

Bellari HA540 MK2 Tube Headphone Amp

Bellari
Part #245-1250
Model: HA540 MK2
The Bellari HA540 MK2 is s a lush sounding 12AX7 pure Class A tube headphone amp running 150 regulated volts to the tube plates. With plenty of gain, the HA540 MK2 is uniquely capable of driving headphones rated from 8-2000 Ohms.
Key Features
  • Zero-feedback design guarantees a smooth natural analog response
  • Two separate inputs allowing different source components
  • Can uniquely drive headphone loads from 8-2000 ohms
  • Hand-built in Salt Lake City, Utah
Your Price: $199.00
+ FREE SHIPPING
MSRP: $299.00
Save $100.00 (33%)
Bulk Pricing
Order in the next 1 hr 45 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Bellari HA540 MK2 Tube Headphone Amp

The HA540 MK2 is a highly impressive, budget friendly pure Class A tube headphone amplifier that will deliver uncompromised warmth and clarity through any variety of source material. Utilizing a 12AX7 tube and running 150 regulated volts to the tube plates, this headphone amplifier is capable of driving a wide range of loads from 8-2,000 ohms.

In a world where headphone amplifiers can cost anywhere from $99 to $1,999, or more, it is difficult to find honesty regarding what is a true improvement in build quality or sound. Hand-built in Salt Lake City, Utah, the Bellari HA540 MK2 will unquestionably kick your music up a notch, with a defining weight to the audio quality it delivers.

The HA540 MK2 is an honest and true headphone amplifier, and is a true bargain for its build and audio quality.


Specifications:
•    Input Impedance: 47k ohms
•    Output Headphone Impedance: 8 ohms to 2,000 ohms
•    Max Output Gain: 19.6 dB
•    THD: 0.4% @ 20 - 20,000Hz, at 1V RMS
•    S/N Ratio: >80 dB unweighted
•    Max Output Power: 332mW/Side, 664 mW/Stereo (@ 30 ohms)
•    Frequency Response: 6 – 51,000 Hz /-3dB
•    Phase Shift (In to Out): 0dB
•    Crosstalk: -75 dB



Product Details

BrandBellari
ModelHA540 MK2
Part Number245-1250
UPC675889054002
Unit of MeasureEach
Weight2.1
