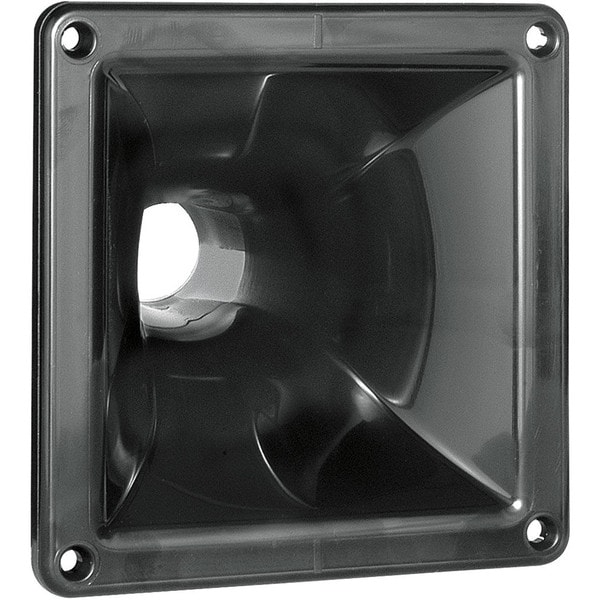

B&C ME10 1" Hyperbolic Cosine Horn 90x60 2-Bolt

B&C Speakers
Part #294-618

B&C ME10 1" Hyperbolic Cosine Horn 90x60 2-Bolt

B&C Speakers
Part #294-618
Model: ME10
The B&C Speakers ME10 is a 1" hyperbolic cosine ABS horn, with very good loading down to 1.5 kHz.
Key Features
  • 90°H x 60°V nominal dispersion
  • Hyperbolic cosine geometry combines best of exponential and CD characteristics
  • Attractive, lightweight, and durable ABS construction
  • Very good loading down to 1.5 kHz
Your Price: $18.71
MSRP: $20.49
Save $1.78 (9%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C ME10 1" Hyperbolic Cosine Horn 90x60 2-Bolt

B&C's ME10 1" hyperbolic cosine ABS horn combines the optimal acoustic loading of exponential horns with the regular coverage of constant directivity horns. It has been optimized for use with the DE10 driver, but produces excellent results with the entire B&C Speakers 1" driver family.

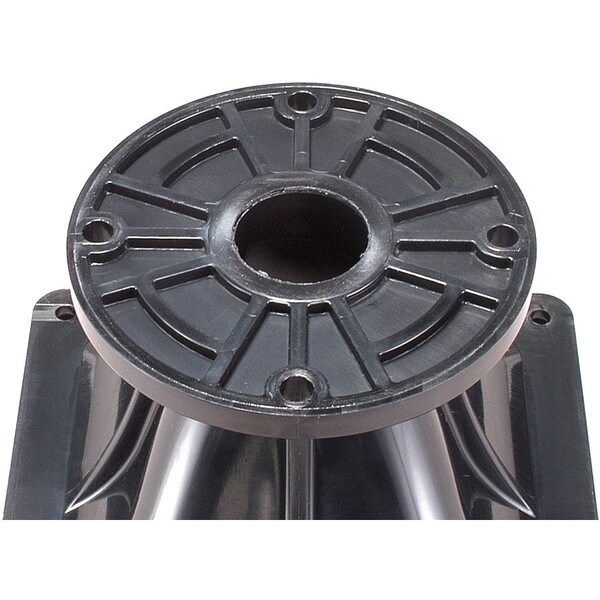

Specifications: • Nominal dispersion: 90°H x 60°V • Minimum frequency: 1,500 Hz • Throat diameter: 1" • Dimensions: 5.1"H x 5.1"W x 3.5"D • Cutout dimensions: 4.1"H x 4.1"W • Mounting type: Standard 2 bolt.

B&C Speakers produces a series of horns for compression drivers ranging from constant directivity models, known for their great consistency in angular coverage, to exponential models, which optimize acoustical loading and sound energy transfer. Standardized driver mounting flanges give the designer the freedom to choose the best horn/driver combination for each project.

All horns are made of cast aluminum, resulting in a robust structure that is free from resonances. The only exception to this method is the ME10; a new design that is made from precision molded plastic and incorporates stiffeners that add to its structural integrity. B&C combines advanced design techniques with critical listening tests to manufacture horns that exhibit precise pattern control, excellent driver loading, and low distortion and coloration.

Product Details

BrandB&C Speakers
ModelME10
Part Number294-618
UPC844632001864
Unit of MeasureEach
Weight0.6

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type2-Bolt
