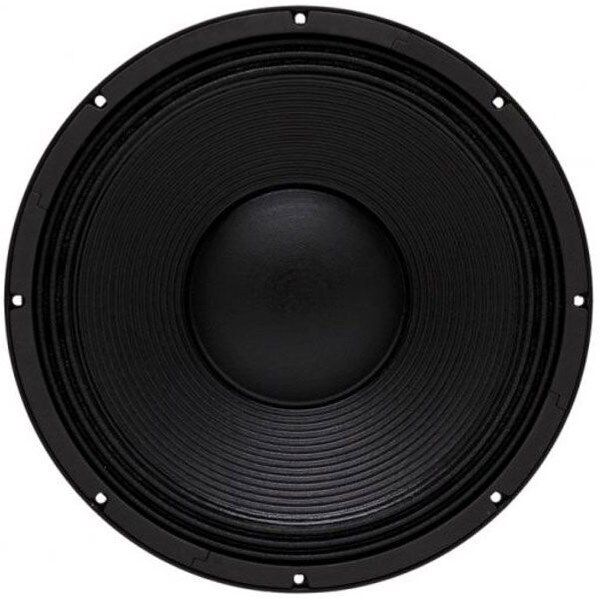

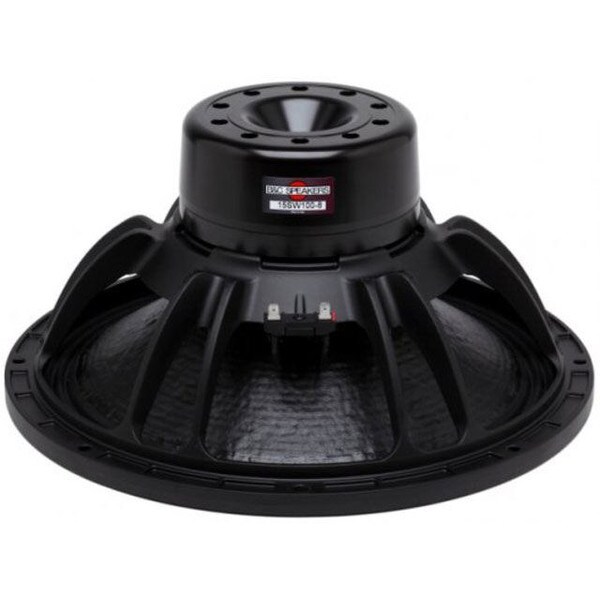

B&C 15SW100 15" Professional Neodymium Subwoofer 8 Ohm

B&C Speakers
Part #294-5988

B&C 15SW100 15" Professional Neodymium Subwoofer 8 Ohm

B&C Speakers
Part #294-5988
Model: 15SW100
B&C's 15SW100 15" pro subwoofer speaker boasts an oversized 4.0" voice coil, neodymium motor, 1,500 watts RMS power handling capacity, and 12.5 mm Xmax (57 mm peak-to-peak excursion before damage).
Key Features
  • Lightweight but powerful FEA-optimized neodymium magnet
  • Extremely high BL factor and Xmax for outstanding LF output
  • 12.5 mm Xmax, 57 mm peak-to-peak excursion before damage
  • 4.0" split winding copper voice coil on fiberglass former
  • Ventilated voice coil gap reduces power compression
  • Aluminum demodulation ring on pole piece reduces distortion
  • Double silicone spider
Your Price: $489.83
+ FREE SHIPPING
MSRP: $816.38
Save $326.55 (40%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

B&C 15SW100 15" Professional Neodymium Subwoofer 8 Ohm

The B&C 15SW100 is an advanced, lightweight subwoofer driver featuring 1,500 watts RMS power handling, a 1.26" long/4.0" diameter copper voice coil with very high thermal capability, and a ventilated neodymium magnet assembly that provides low power compression. An aluminum demodulation ring fitted to the 15SW100's pole piece reduces distortion.

Product Details

BrandB&C Speakers
Model15SW100
Part Number294-5988
UPC848864009704
Unit of MeasureEach
Weight24.15

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter16.7
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance
Frequency Response40 to 1,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)37Hz
DC Resistance (Re)
Voice Coil Inductance (Le)2.2mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)3.9ft³
BL Product (BL)25.6T·m
Diaphragm Mass Inc. Airload (Mms)176g
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)855cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.5"
Baffle Cutout Diameter13.9"
Depth7.5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F394.9Hz
Vented Volume3.75ft³
Vented F339.4Hz
