  • Audio-Technica ATW-901A/H System 9 Wireless Headworn Microphone System

CLEARANCE Audio-Technica ATW-901A/H System 9 Wireless Headworn Microphone System

Audio-Technica
Part #242-5334

CLEARANCE Audio-Technica ATW-901A/H System 9 Wireless Headworn Microphone System

Audio-Technica
Part #242-5334
Model: ATW-901A/H
With 4 user-selectable frequencies, the budget friendly Audio Technica ATW-901A/H allows you to cut the cord and have more freedom in the garage, studio or on stage.
Key Features
  • PRO 8HEcW headworn microphone for crystal clear vocal reproduction
  • Four user-selectable frequencies allow for multiple systems to be used at the same time
  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Dynamic operation range of 200 feet
CLEARANCE $189.00
+ FREE SHIPPING
MSRP: $224.95
Save $35.95 (16%)
Bulk Pricing
Order in the next 0 hr 2 min to ship today. Details

1In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

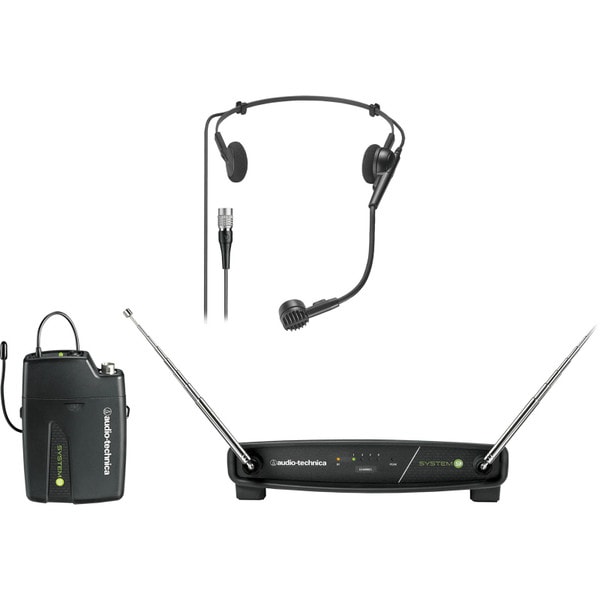

Audio-Technica ATW-901A/H System 9 Wireless Headworn Microphone System

Audio-Technica's System 9 wireless system is designed to let you cut the cord without breaking the bank. The ATW-901A/H includes a PRO 8HEcW headworn microphone designed for hands-free movement anywhere you need it. The single channel receiver has four user-selectable frequencies for use with multiple systems and the UniPak transmitter allows for channel configuration and includes instrument and microphone trims to dial in the gain required for a given installation. With a range of up to 200 feet and Audio-Technicas legendary quality and reliability, the ATW-901A/H will give you the freedom you need in just about any application.

Overall System Specifications:
• Operating frequency: VHF highband, 169 MHz to 172 MHz
• Modulation mode: FM
• Maximum deviation: ±10 kHz
• THD: < 1% (at 1 kHz, ±10 kHz deviation)
• Operating range: 60 m (200') typical; open range environment with no interfering signals
• Operating temperature range: 40º F to 110º F (4º C to 43º C)
• Frequency response: 80 Hz to 13 kHz

Receiver Specifications
• Receiving system: Non-diversity, single channel, dual antenna system
• Image rejection: 50 dB minimum
• RF sensitivity: 20 dBuV at 60 dB, S/N ratio (50 ohms termination)
• Power requirements: 100-240V AC (50/60 Hz) to 12V DC 0.5A (center positive) switched mode power supply
• Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
• Audio output: XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)

Body-Pack Transmitter Specifications:
• RF power output: 10 mW
• Spurious emissions: Following federal and national regulations
• Input connections: Four-pin locking connectors; Pin 1: GND, Pin 2: INST, INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA, not included
• Battery life: 8 hours (alkaline)
• Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D

Product Details

BrandAudio-Technica
ModelATW-901A/H
Part Number242-5334
UPC042005194896
Unit of MeasureEach
Weight2.65
