  • Belden Snap-N-Seal ProSNS F-type RG-59 Compression Connector 25 Pack

Belden Snap-N-Seal ProSNS F-type RG-59 Compression Connector 25 Pack

Belden
Part #092-764

Belden Snap-N-Seal ProSNS F-type RG-59 Compression Connector 25 Pack

Belden
Part #092-764
Model: FSNS59U
When your time, money, and reputation depend on terminating coaxial cable quickly and reliably, count on Belden Snap-N-Seal ProSNS.
Key Features
  • F-type compression connector fits industry standard RG-59 coaxial cable
  • Integrated O-ring locks out moisture
  • Floating-pin insertion guide for easier installation
Your Price: $26.98
MSRP: $33.99
Save $7.01 (21%)
Bulk Pricing
Quantity:Qty: 1-4 $26.98/ea
Quantity:Qty: 5-39 $24.82/ea
Quantity:Qty: 40+$23.74/ea
Ships next business day. Details

5In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

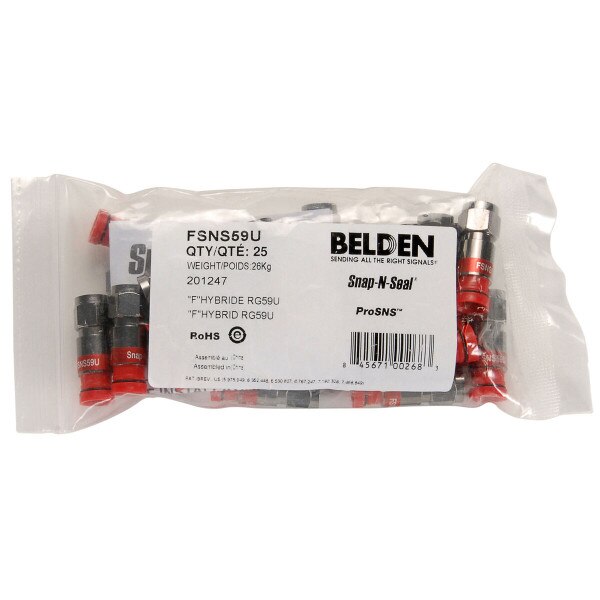

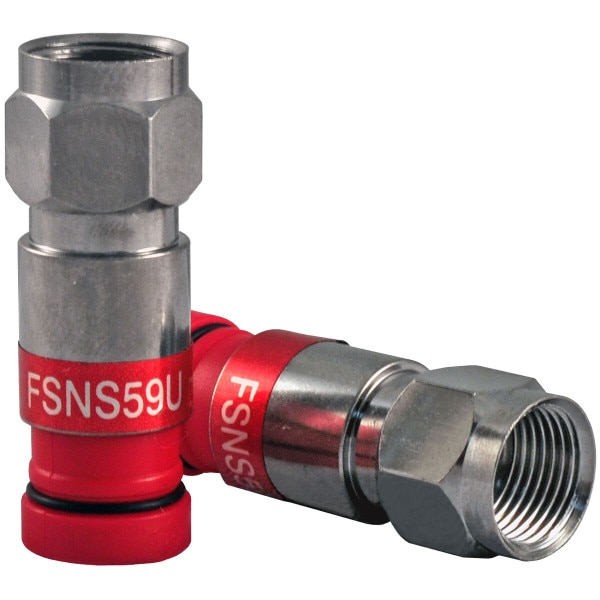

Belden Snap-N-Seal ProSNS F-type RG-59 Compression Connector 25 Pack

This connector is an excellent choice for F-type termination of RG-59 cable.

When Belden acquired the manufacturers of both Snap-N-Seal and F-Conn, the company didn't rest on its laurels. Engineers took technology from both lines to create the best compression connectors in the world: Snap-N-Seal ProSNS.

By providing true 360° compression, these connectors are have superior RF shielding, rated at an effective -85 dB. All three connector styles, F-type, RCA, and BNC, feature 75 ohm impedance for low signal loss. The floating pin insertion guide, low insertion force, low compression force, and innovative sealing O-ring all help to create a connector that's easy to use, reliable, and can be installed using nearly any standard compression tool.

Specifications: • Base metal: Brass • Contact plating: Nickel-tin alloy • Sold per: 25 pack • Entry hole: 6 mm • Termination style: Compression • Dimensions: 0.44" x 1.25" (uncompressed).

Product Details

BrandBelden
ModelFSNS59U
Part Number092-764
UPC845671002683
Unit of MeasureEach
Weight0.55

Product Specifications

F Male TypeCompression
Fits CableRG-59
