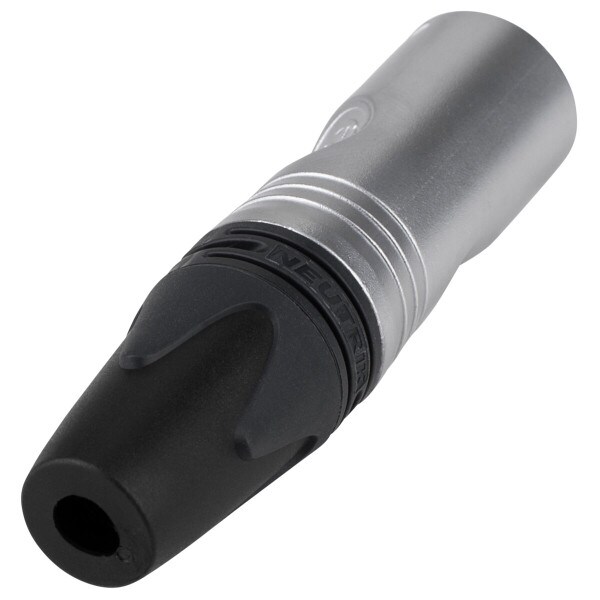

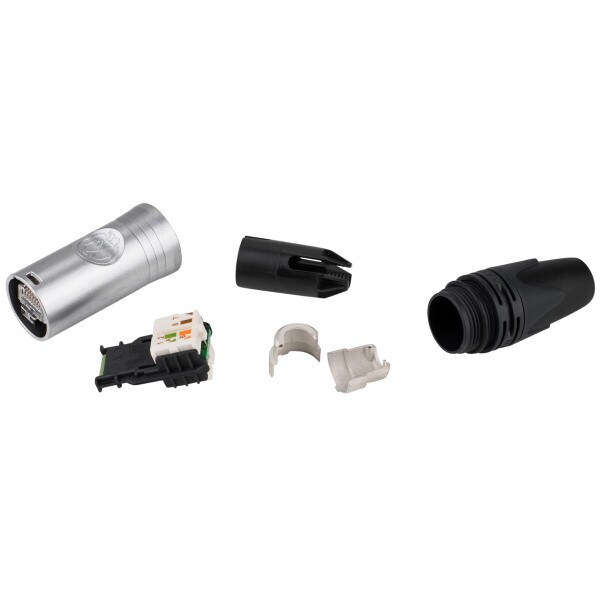

The Neutrik NE8MX6 is a cable mount RJ45 Cat 6a connector with self-termination. IP65 ingress protection when mated with NE8FDX-P6-W or NE8FDX-Y6-W. Includes a robust metal shell, proven Neutrik chuck-type strain relief and a Cat 6a compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24 - AWG22/1 (solid) or AWG24 - AWG22/7 (stranded). Cat 6a specification to TIA / EIA 568-C.2, ISO / IEC 11801. PoE+ compliant according to 802.3at Type 2.
NOTE: This connector WILL intermate with etherCON Cat 5 products, but WILL NOT intermate with Cat 6 connectors NE8FDY-C6 and NE8FDY-C6-B.
The etherCON Series by Neutrik is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels for the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Product Details | |
|---|---|
| Brand | Neutrik |
| Model | NE8MX6 |
| Part Number | 092-1824 |
| Unit of Measure | Each |
| Weight | 0.09 |
