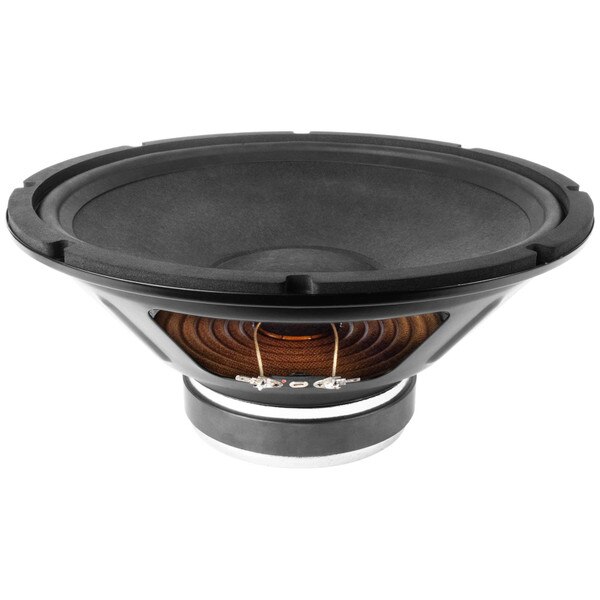

FaitalPRO 12FE330 12" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1334

FaitalPRO 12FE330 12" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1334
Model: 12FE330

The FaitalPRO 12FE330 12" Professional Woofer is a great choice when you need smooth response, high sensitivity and incredible bass response in average size ported or sealed enclosures.

Key Features
  • Glass fiber reinforced paper cone for smooth natural response
  • High 94 dB sensitivity for incredible output potential
  • Half roll rubber surround for clean linear excursion
  • Above average 8.32mm Xmax for impactful low-end
Your Price: $155.00
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

3In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 12FE330 12" Professional Woofer 8 Ohm

The FaitalPRO 12FE330 12" Professional Woofer is a great choice when you need smooth response, high sensitivity and incredible bass response in average size ported or sealed enclosures.

Featuring a glass fiber reinforced paper cone, half-roll rubber surround and 250W program power handling, this woofer is ready to rock in a number of different applications. An excellent choice in a studio, small venue or even home audio environment.

Product Details

BrandFaitalPRO
Model12FE330
Part Number294-1334
UPC848864074689
Unit of MeasureEach
Weight9.65

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.57
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response30 to 3000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter2.05"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)7
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)5.18ft³
Mechanical Compliance of Suspension (Cms)0.31mm/N
BL Product (BL)13T·m
Diaphragm Mass Inc. Airload (Mms)74.2g
Maximum Linear Excursion (Xmax)8.32mm
Surface Area of Cone (Sd)579cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.24"
Baffle Cutout Diameter11.18"
Depth5.24"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.82ft³
Sealed F362.75Hz
Vented Volume5.852ft³
Vented F331.5Hz
