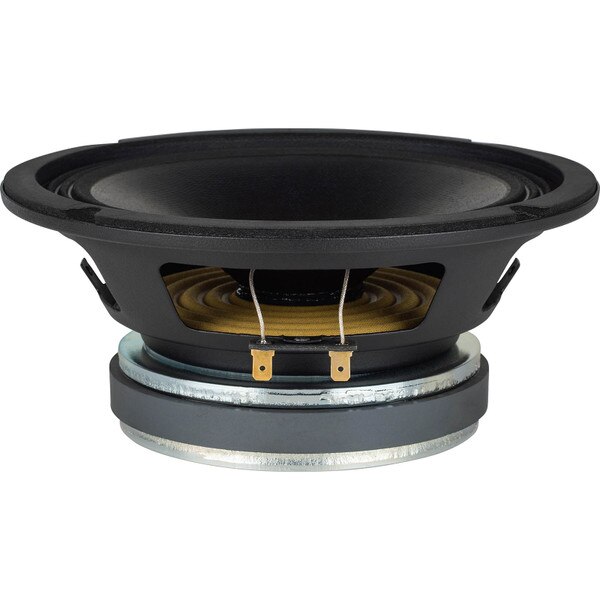

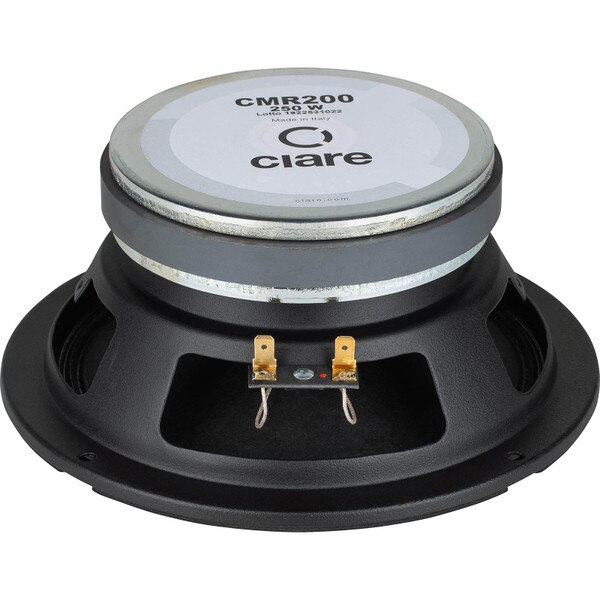

Ciare CMR200 8" Full-Range Driver 4 Ohm

Ciare
Part #293-110
Model: CMR200
5 Questions, 15 Answers or

The Ciare CMR200's solid build quality and advanced construction ensure that this driver can handle high volumes without distortion, making it perfect for use in a wide range of applications. Its compact and efficient design makes it perfect for use in small to medium-sized speakers, as well as in automotive and marine audio systems.

Key Features
  • Oversized ferrite motor for higher Bl and above average sensitivity
  • 1.5" voice coil for up to 200 watt power handling
  • Premium upgrade for car, boat, motorcycle, ATV and more
Your Price: $100.45
+ FREE SHIPPING
MSRP: $133.94
Save $33.49 (25%)
Bulk Pricing
Ships next business day. Details

2In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Ciare CMR200 8" Full-Range Driver 4 Ohm

The Ciare CMR200 8" Full-Range Driver 4 Ohm is a high-quality driver designed to deliver exceptional sound quality across a wide frequency range. Featuring an 8" cone and a 4 Ohm impedance, this driver provides an impressive frequency response of 55Hz-7kHz, ensuring clear and accurate sound reproduction across the entire audio spectrum.

The CMR200's sleek and modern design makes it a perfect complement to any home or professional sound system. Its lightweight and compact size make it easy to install and incorporate into any audio setup.

Whether you're a DIY audio enthusiast or a professional sound engineer, the Ciare CMR200 8" Full-Range Driver 4 Ohm is the perfect choice for any audio project that demands exceptional sound quality and clarity.

Product Details

BrandCiare
ModelCMR200
Part Number293-110
UPC848864073026
Unit of MeasureEach
Weight6.75

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.81
Power Handling (RMS)120 Watts
Power Handling (MAX)250 Watts
Impedance4Ω
Frequency Response80 to 6,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)94Hz
DC Resistance (Re)3.41Ω
Voice Coil Inductance (Le)0.42mH
Mechanical Q (Qms)3.82
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)0.31ft³
Mechanical Compliance of Suspension (Cms)0.15mm/N
BL Product (BL)8.55T·m
Diaphragm Mass Inc. Airload (Mms)18.87g
Maximum Linear Excursion (Xmax)3.8mm
Surface Area of Cone (Sd)216cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.27"
Baffle Cutout Diameter7.17"
Depth3.62"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.18ft³
Sealed F3161.3Hz
Vented Volume0.5ft³
Vented F378.1Hz
