Celestion TF0818 8" Professional Speaker 150W

Celestion
Part #294-2060

Celestion TF0818 8" Professional Speaker 150W

Celestion
Part #294-2060
Model: TF0818
The Celestion TF0818 8" speaker serves equally well as a woofer or dedicated midrange component when used in pro loudspeaker systems.
Key Features
  • 94 dB sensitivity and 100 watts RMS power handling
  • 1.75" high temperature copper voice coil wound on polyimide former for increased reliability
  • Achieves optimal performance in compact enclosures
  • Exceptional performance through bass and midrange
  • Ideal for 2-way systems
Your Price: $69.50
MSRP: $104.25
Save $34.75 (33%)
Bulk Pricing
Ships next business day. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Celestion TF0818 8" Professional Speaker 150W

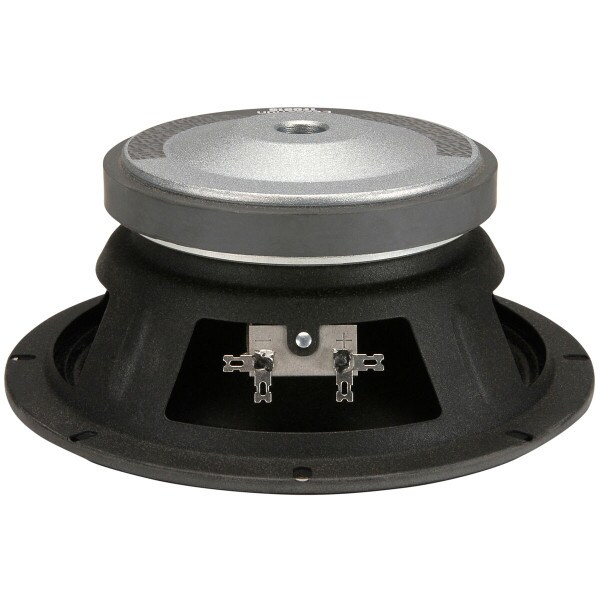

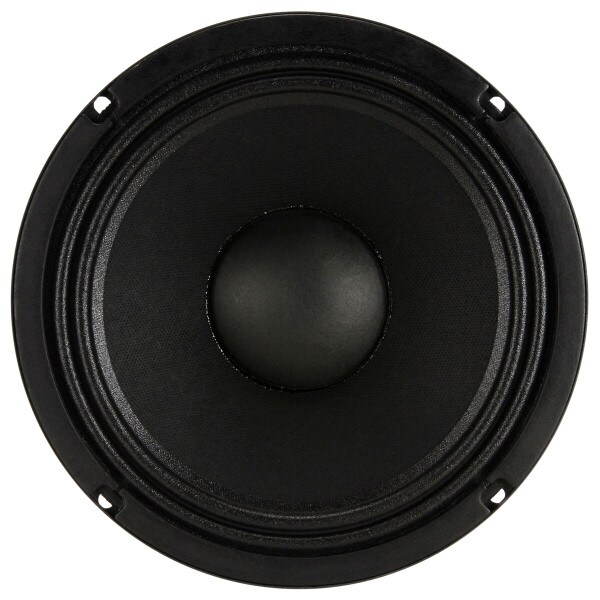

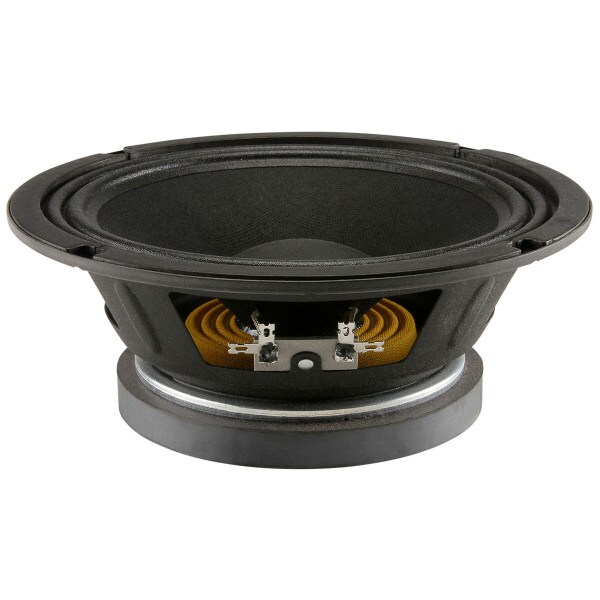

The versatile and efficient Celestion TF0818 8" driver offers excellent performance when used in bass and dedicated midrange applications. Its 1.75" copper voice coil is set onto a polyimide former, which assures good long term resistance to the detrimental effects of extreme high temperatures. A double half-roll cone surround, combined with an optimized Kevlar-loaded paper cone, ensure the speaker's frequency response is smooth and extended. The large 31 oz. ceramic ferrite magnet provides plenty of motor strength.

Product Details

BrandCelestion
ModelTF0818
Part Number294-2060
UPC739894533249
Unit of MeasureEach
Weight5.5

Product Specifications

Nominal Diameter8"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response70 to 6,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.75"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)6.72Ω
Voice Coil Inductance (Le)0.75mH
Mechanical Q (Qms)3.31
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.33ft³
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)12.95T·m
Diaphragm Mass Inc. Airload (Mms)19.57g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)226.8cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.19"
Baffle Cutout Diameter7.2"
Depth3.54"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3188.4Hz
Vented Volume0.6ft³
Vented F386.9Hz
