  • ART Digital MPA Professional 2-Channel Mic Preamp

CLEARANCE ART Digital MPA Professional 2-Channel Mic Preamp

1 Question or
ART
Part #245-8616

CLEARANCE ART Digital MPA Professional 2-Channel Mic Preamp

ART
Part #245-8616
Model: Digital MPA
1 Question or
The ART Digital MPA™ microphone preamplifier features a new low noise, high performance preamplification circuitry, designed for superior audio fidelity.
Key Features
  • Selectable plate voltage
  • Large highly visible VU meters
  • Discrete high performance Class-A dual tube input circuitry
  • Low total harmonic distortion
  • Wide frequency response
  • Versatile inputs and outputs
  • 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
60 Day No Hassle Return Policy

Overview

ART Digital MPA Professional 2-Channel Mic Preamp

The ART MPA Gold and Digital MPA professional Two-Channel microphone preamplifiers use differential input Class-A two-channel tube microphone preamp design with variable input impedance and selectable tube plate voltage to create the most versatile high performance microphone preamplifiers in their class. They deliver unmatched warmth, presence and clarity and in the case of the Digital MPA, the added convenience of direct digital output.

Two 12AX7A Vacuum Tubes
The pure Class-A design using two discrete 12AX7A vacuum tubes to deliver controlled 'musical sounding’ overload characteristics for added warmth and presence, while maintaining an incredible dynamic range with unsurpassed sonic detail and clarity.

Variable Input Impedance
Variable Input Impedance is intended to optimize the inputs for the widest possible range of microphone sources. The ability to vary the input impedance of a microphone preamplifier changes the load the microphone 'sees' in the system, dramatically altering its performance and sonic character. This creates a wide range of new sonic possibilities with any modern or vintage condenser, ribbon or dynamic microphone.

The variable impedance control is infinitely variable allowing much finer control and the ability to tune the preamp to the microphone’s ideal sweet spot. A continuously variable 15 to 150 Hz High Pass Filter at the input increases control of the microphone source.

Selectable Tube Plate Voltage
The selectable Tube Plate Voltage function delivers a wide variety of tone from the Digital MPA or MPA Gold’s preamplifier section. The tube circuit is differential, and provides the equivalent of a 300V power supply on the high voltage setting ensuring maximum output with extremely low noise and distortion.

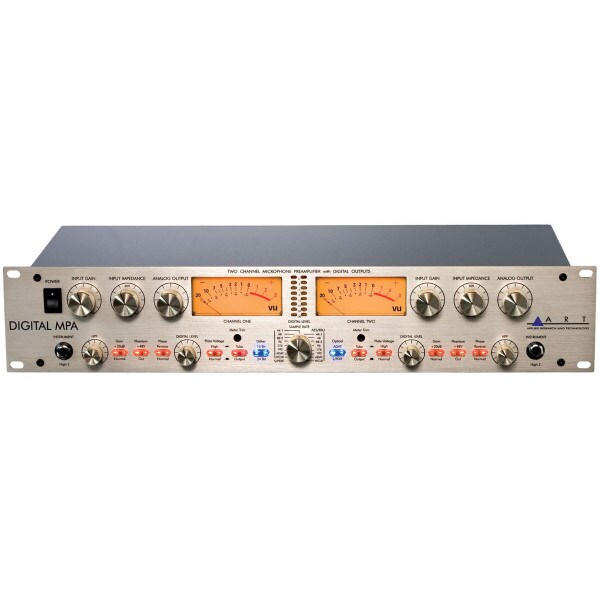

Comprehensive Metering
In addition to the VU meters, the Digital MPA has Tube Warmth LED Metering that measures the left and right audio channel levels. The meters act like a normal histogram for the average signal level and the display holds the highest LED on alone for one second. While the average level function attack and release are measured in milliseconds, the peak function has a 20-microsecond attack time.

Digital Connectivity (Digital MPA)
Take advantage of this world class processing via the analog and digital outputs. AES/EBU, S/PDIF. TOSLINK, and ADAT interfaces allow connection to the broadest range equipment. The Digital MPA provides 24 bit or it can adapt to 16 bit applications with the push of a button. The A/D is front panel adjustable from 44.1 to 96K or syncs to ADAT or external word clock (32 kHz to 100 kHz).

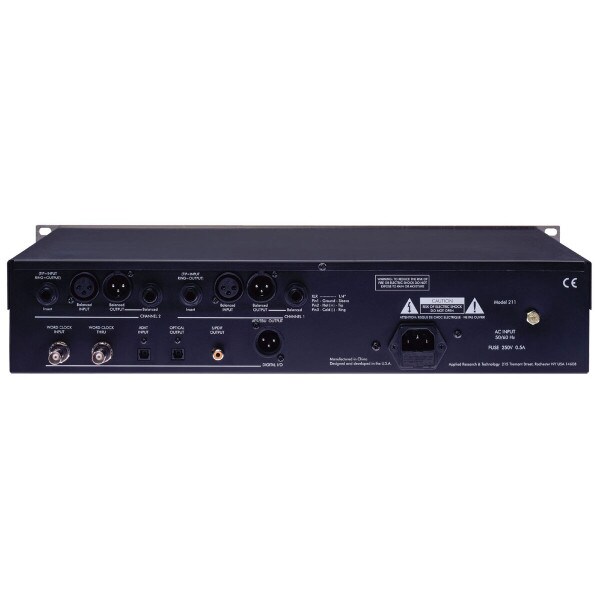

Additional Input / Output Capability
Insert jacks between the analog tube section and the digital I/O allow patching of additional analog signal processors such as compressors or EQ's to be introduced to the signal path before digital conversion and output.

Separate balanced analog outputs and multiple digital I/O all offer individual level controls allowing simultaneous use. Additional high-Z 1/4" inputs make the MPA Gold and Digital MPA perfect high quality DI in studio or high profile live applications.

Specifications: • Frequency response: 15 Hz to 48 kHz normal plate voltage, 15 Hz to 120 kHz high plate voltage • Dynamic range: >110 dB • CMRR:>90 dB • THD: <0.005% • Equivalent input noise: -133 dBu • Maximum input level: +20 dBu • Maximum instrument input: +17 dBu • Input impedance: 150-3,000 ohms adjustable (XLR, >800k ohms (instrument) • Max output level: +27 dBu • Output impedance: <47 ohms • Dimensions: 6.5" D x 19" W x 3.5" H • Weight: 12 lbs.

Product Details

BrandART
ModelDigital MPA
Part Number245-8616
UPC840402011576
Unit of MeasureEach
Weight12

Specifications

Q&A

Reviews

Manuals & Resources
